Product description: E-Ink 5.83'' 648 × 480 px SPI e-paper display with HAT overlay for Raspberry Pi - black and white - Waveshare 14597
Ane-paper (E-ink) displayfrom Waveshare with a diagonal of5.83'' and a resolution equal to640 × 480 px. It usesE-Inktechnology, which makes our eyes do not get tired so much during prolonged use of the display. It works with voltagefrom 3.3 V to 4 V. It communicates viaSPIinterface and supports two colors: white and black. It is compatible with Raspberry Pi,Arduino,Jetson NanoandSTM32.
Product compatible with Arduino and Raspberry
The manufacturer provides auser guidefor Arduino and Raspberry Pi.

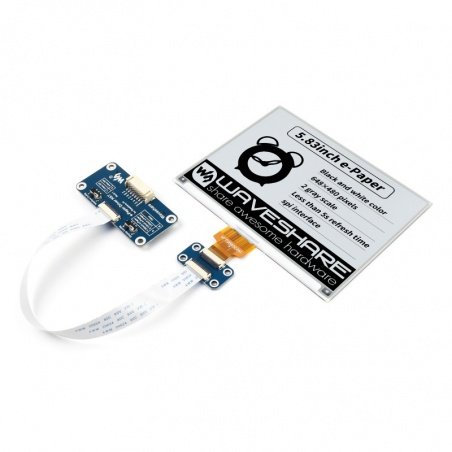

5.83" display from Waveshare.

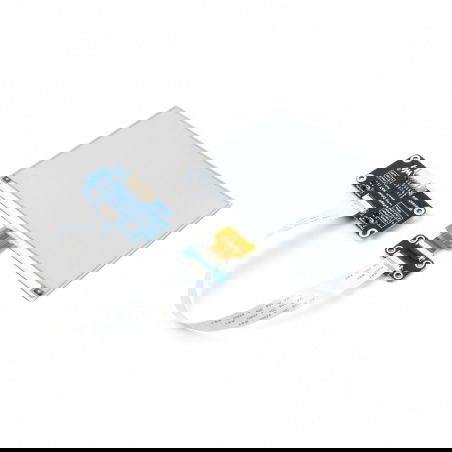

Connect the display to the Raspberry Pi using the HAT overlay.Special features
- Displays last loaded page even after power off
- Low power consumption, consumes power only at the time of refresh
- Equipped with a 40 pin GPIO connector
- Uses SPI communication interface to connect the display to Raspberry Pi / Jetson Nano / Arduino / STM32
Contents of the kit
- 5,83'' display
- E-Paper (E-ink) Driver HAT
- Mounting kit for Raspberry Pi
- Connection cable PH2.0 8-pin - 20 cm
Connectors
| Pin | Description |
|---|---|
| VCC | Supply voltage 3.3 V. |
| GND | Circuit ground. |
| DIN | MOSI pin of SPI interface. |
| CLK | SPI interface clock pin. |
| CS | Chip select activated by a low state. |
| DC | Data / command selection: high state - data; low state - commands |
| RST | External reset activated by a low state. |
| BUSY | Busy status output, activated by a low state. |
The display uses SPI communication interface.Technical specifications
- Compatible with: Raspberry Pi / Arduino / Jetson Nano / STM32
- Display type: E-paper (E-ink)
- Diagonal size: 5,83''
- Resolution: 648 × 480 px
- Viewing angle: 170°
- Displayed colors: black and white
- Gray scale: 2
- Supply voltage: 3.3 V / 5 V
- Interface: SPI
- External dimensions: 125.4 x 99.5 mm
- Display dimensions: 119.23 x 88.32 mm
- Pixel: 0.184 x 0.184 mm
- Full refresh time: 5 s
