Set of 5mm LEDs - justPi - 16pcs.

Index: JUS-19992 EAN: 5904422328801

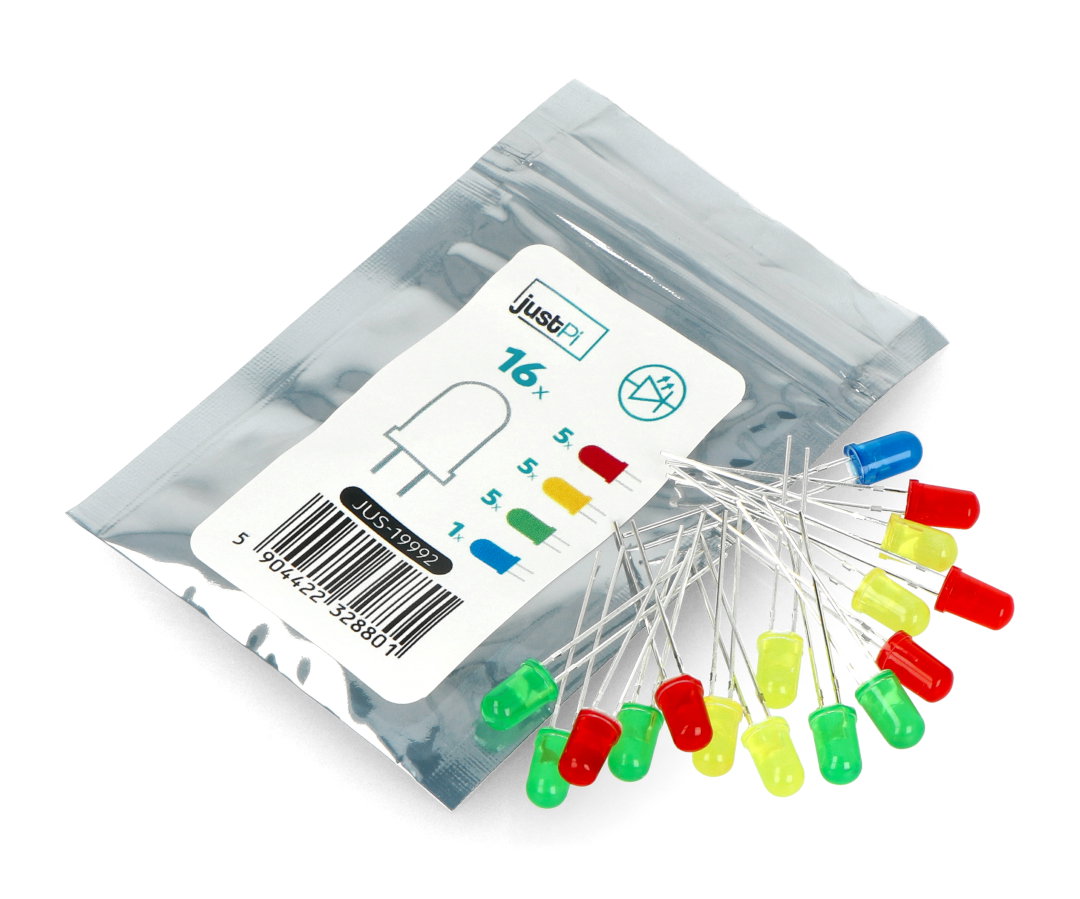

A set of LEDs in a 5 mm DIP housing. It contains as many as 16 diodes in 4 colours - 5 pieces of red, 5 pieces of green, 5 pieces of yellow and 1 piece of blue diode. The components have been manufactured by justPi.
Set of 5mm LEDs - justPi - 16pcs.
€0.90
€0.73 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: justPi

Description: Set of 5mm LEDs - justPi - 16pcs.

A set of LEDs in 5mm DIP housing. It contains as many as 16 diod es in 4 colours - 5 pieces in red, 5 pieces in green, 5 pieces in yellow and 1 piece of blue diode. The elements were produced by justPi.

Please note that each diode needs an appropriate resistor. Its absence will cause irreparable damage to it. Not sure which resistor to choose? Check how to choose the right resistor for your LED!

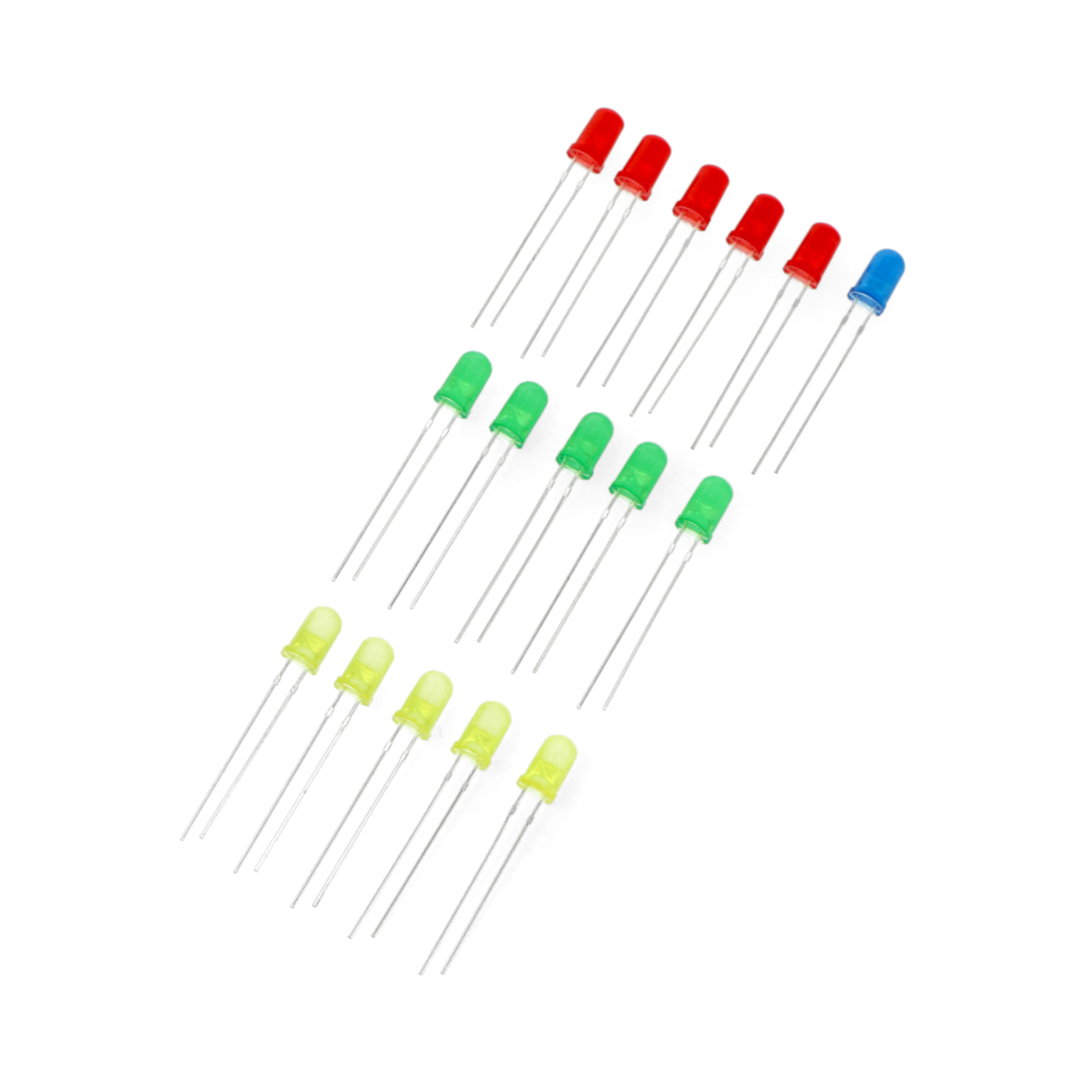

Zestaw zawiera diody w czterech kolorach.

The set includes LEDs in four colours.

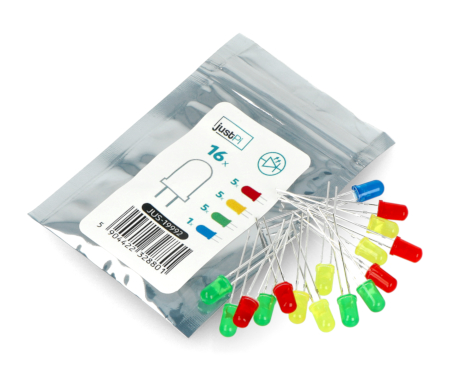

Każda dioda ma obudowę DIP 5 mm.

Each diode has a 5mm DIP housing.

Technical specifications of the yellow LED

  • Lens colour: yellow
  • Housing: 5mm DIP socket
  • Mounting: THT
  • Emitted wavelength: 589 nm
  • Brightness: 40 mcd
  • Angle of illumination: 60°
  • Working temperature: from -40°C to 80°C
  • Operating parameters:
    • Current If: 25 mA
    • voltage Vf: 2,0 V

Technical specification of green diode

  • Lens colour: green
  • Housing: 5 mm DIP
  • Mounting: THT
  • Emitted wavelength: 571 nm
  • Brightness: from 100 mcd to 150 mcd
  • Angle of illumination: 50°
  • Working temperature: from -40°C to 80°C
  • Operating parameters:
    • Current If: 20 mA
    • voltage Vf: 2,3 - 2,5 V

Technical specification of red diode

  • Lens colour: red
  • Housing: 5 mm DIP
  • Mounting: THT
  • Emitted wavelength: from 625 nm to 645 nm
  • Brightness: from 450 mcd to 800 mcd
  • Illumination angle: 70°
  • Operation temperature: from -40°C to 80°C
  • Operating parameters:
    • Current If: 20mA
    • voltage Vf: 2,0 - 2,3 V'

Technical specification of the blue diode

  • Lens colour: blue
  • Housing: 5mm DIP
  • Mounting: THT
  • Emitted wavelength: 470 nm
  • Brightness: 1000 mcd
  • Angle of illumination: 30°
  • Working temperature: from -40°C to 80°C
  • Operating parameters:
    • Current If: 25 mA
    • voltage Vf: 3,2 V

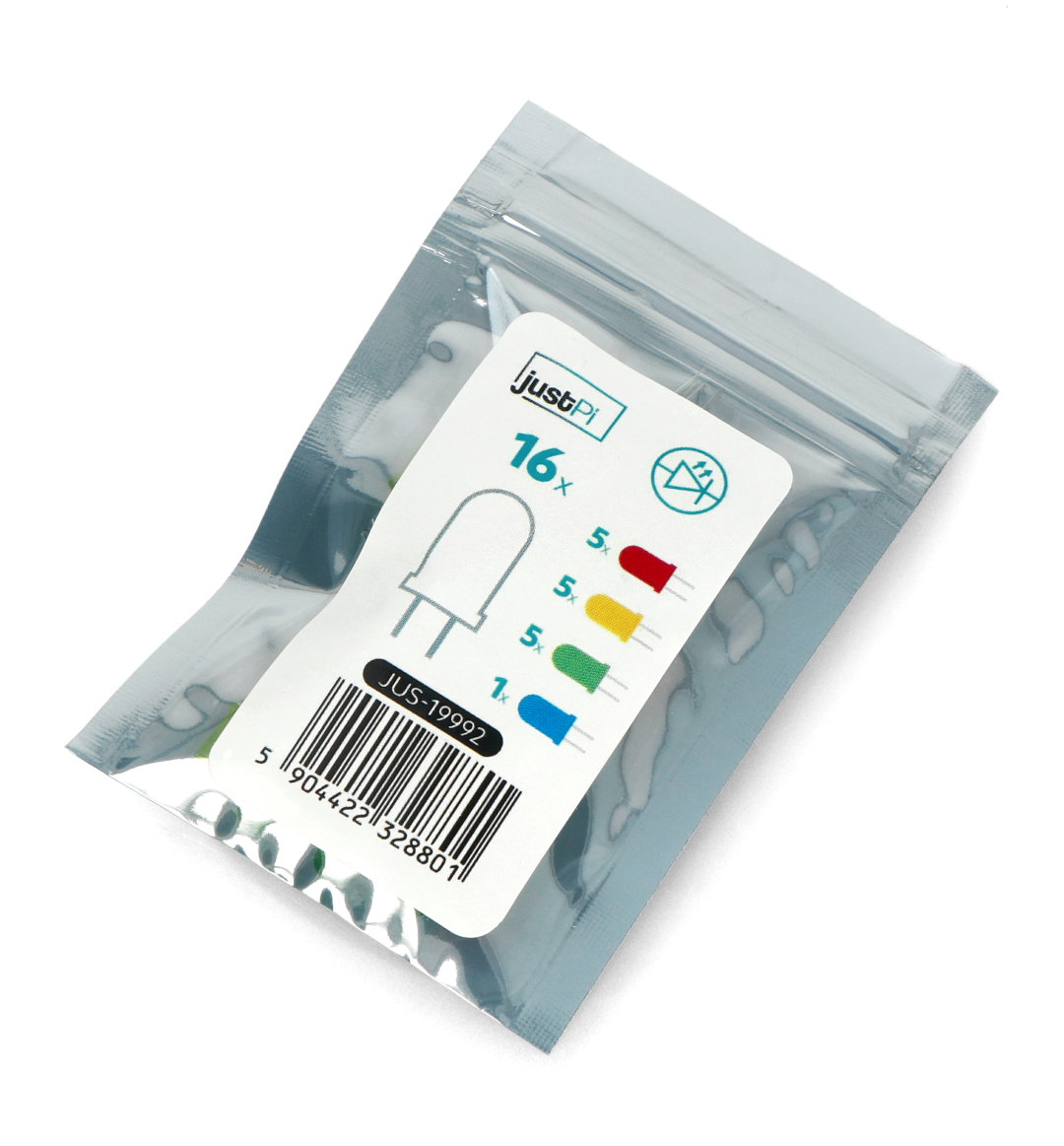

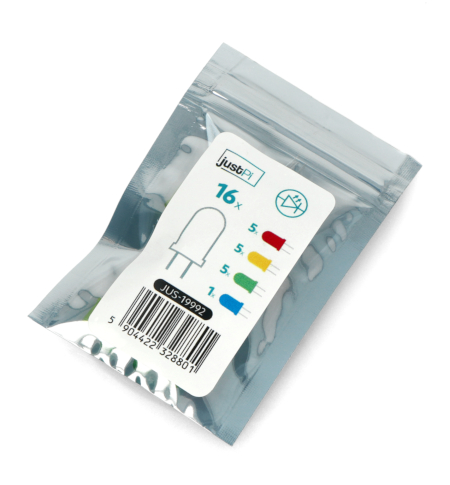

Diody zostały zapakowane w bezpieczny woreczek zamykany strunowo.

The diodes have been packaged in a safe zip-lock bag.

LED - color red
LED - color green
LED - color set
LED - color blue
LED - color yellow
LED - LEDs 16
Package width 6 cm
Package height 9 cm
Package depth 0.5 cm
Package weight 0.006 kg
