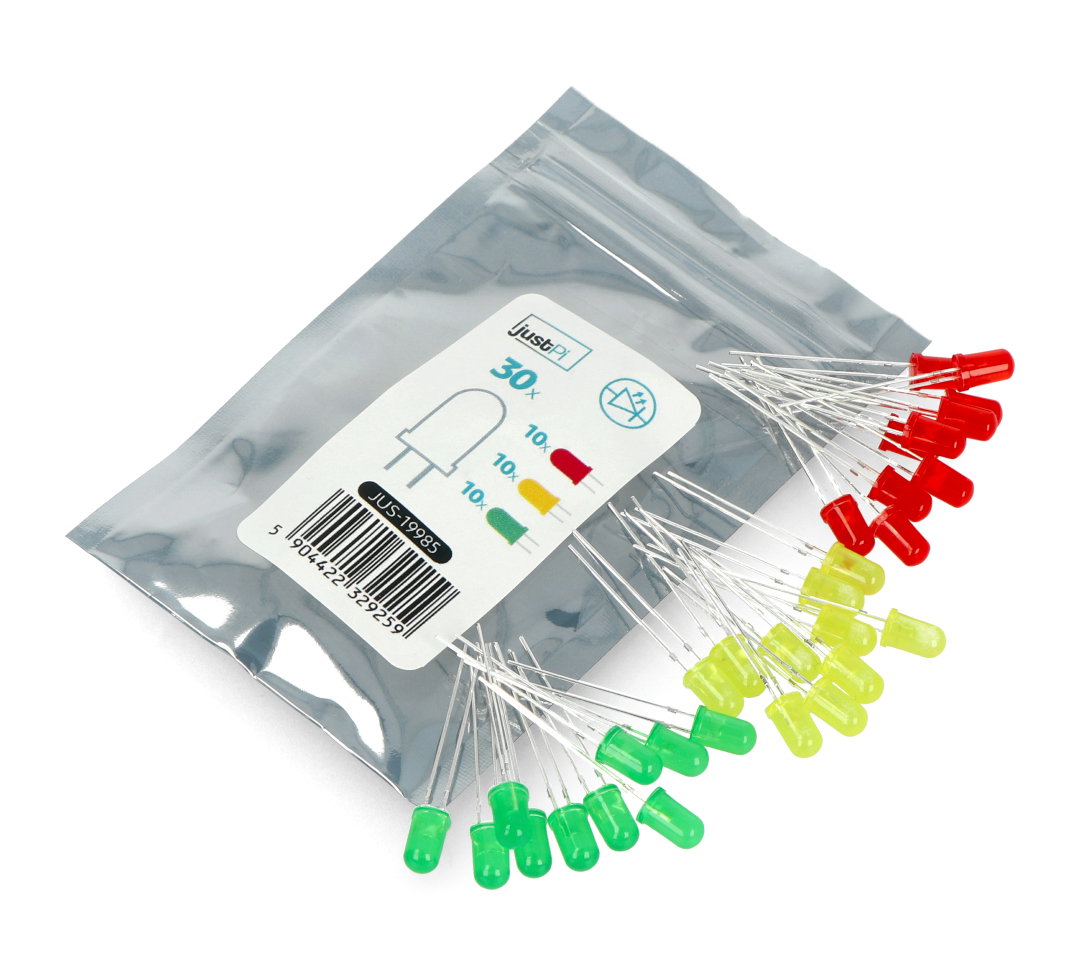

Set of 5mm LEDs - justPi - 30pcs.
A set of LEDs in a 5mm DIP housing. It contains as many as 30 diodes in 3 colours - 10 pieces in red colour, 10 pieces in green colour and 10 pieces in yellow colour. The elements were produced by justPi company.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: 5 mm LED set - justPi - 30 pcs.
A set of LEDs in 5 mm DIP housing. It contains as many as 30 diodes in 3 colours - 10 pieces in red colour, 10 pieces in green colour and 10 pieces in yellow colour. The components have been manufactured by justPi.
Technical specification of the red diode
- Lens color: red
- Housing: 5 mm DIP
- Mounting: THT
- Emitted wavelength: from 625 nm to 645 nm
- Brightness: from 450 mcd to 800 mcd
- Illumination angle: 70°
- Operation temperature: from -40°C to 80°C
- Operating parameters:
- Current If: 20mA
- voltage Vf: 2,0 - 2,3 V

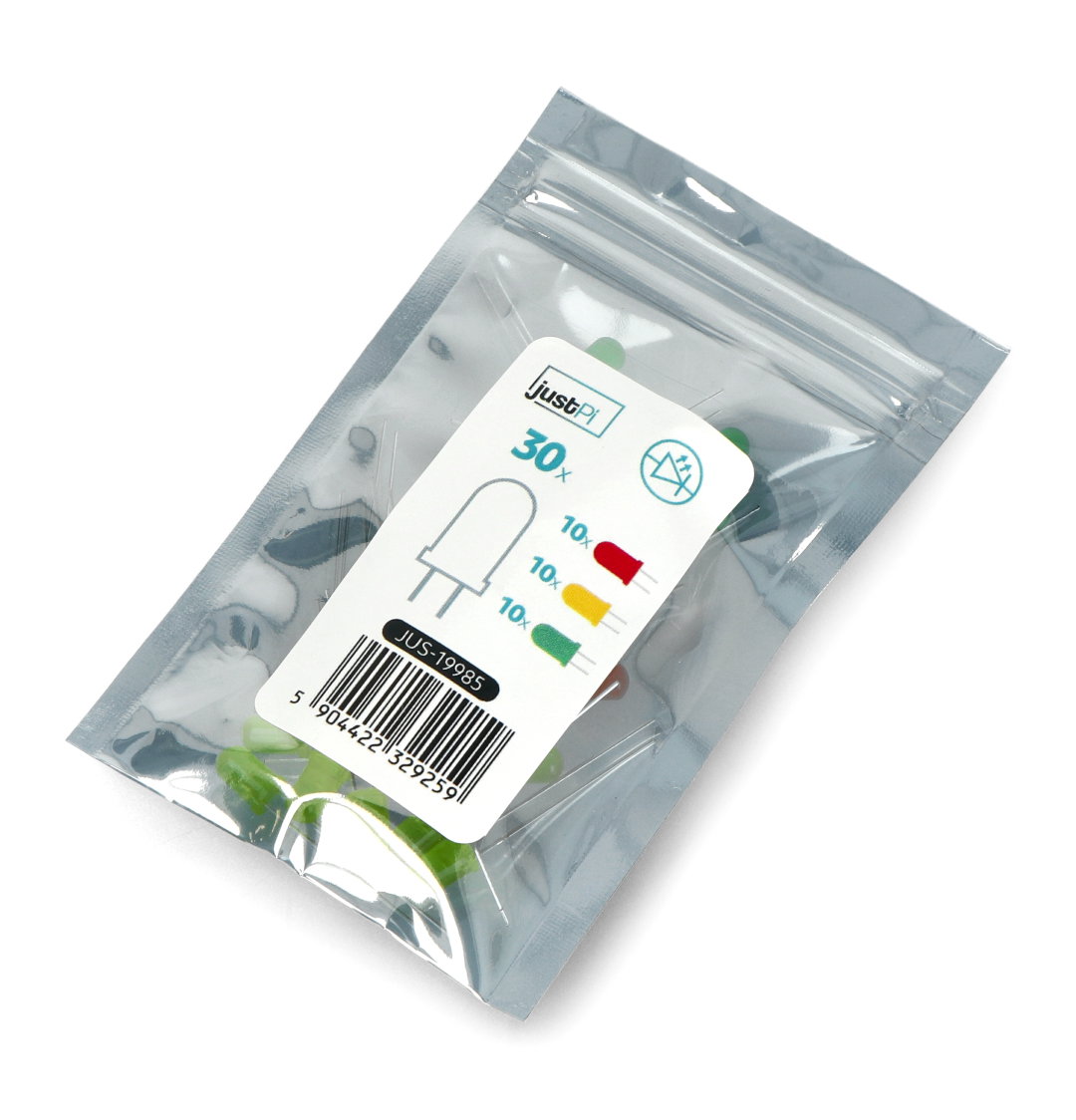

The set was placed in a pouch.
Please note that each diode needs an appropriate resistor. Its absence will cause irreparable damage to it. Not sure which resistor to choose? Check how to choose the right resistor for the LED!
Each diode has a 5mm DIP housing.
Technical specifications of yellow LED
- Lens colour: yellow
- Housing: 5 mm DIP socket
- Mounting: THT
- Emitted wavelength: 589 nm
- Brightness: 40 mcd
- Angle of illumination: 60°
- Working temperature: from -40°C to 80°C
- Operating parameters:
- Current If: 25 mA
- voltage Vf: 2,0 V
Technical specification of green diode
- Lens colour: green
- Housing: 5 mm DIP
- Mounting: THT
- Emitted wavelength: 571 nm
- Brightness: from 100 mcd to 150 mcd
- Angle of illumination: 50°
- Working temperature: from -40°C to 80°C
- Operating parameters:
- Current If: 20 mA
- voltage Vf: 2,3 - 2,5 V
| Name | Value |
|---|---|
| LED - color |
|
| LED - LEDs | 30 |
| Width | 7 cm |
| Height | 11 cm |
| Depth | 1 cm |
| Weight | 0.01 kg |
