Specification
- Capacity: 1 W
- Color: white warm
- Brightness: approx. 80 LM
- Beam angle: 120 °
- Color temperature: 3000 - 3300 K
- Operating parameters:
- Voltage: 3.0 V - 3.6 V
- Current: max: 350mA
Details inthe documentation.
Connection

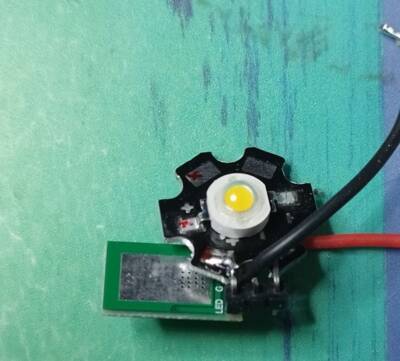

For proper operation of the led you need to connect the resistor or the driver that limits the current. The pads on the PCB are described as follows:
- +positive pole
- -negative pole
Dimensions
The following technical drawing allows to correctly design the layout of the Power Led.
