Product description: LED 5 mm 12 V with a resistor and a wire - white - 5 pcs.

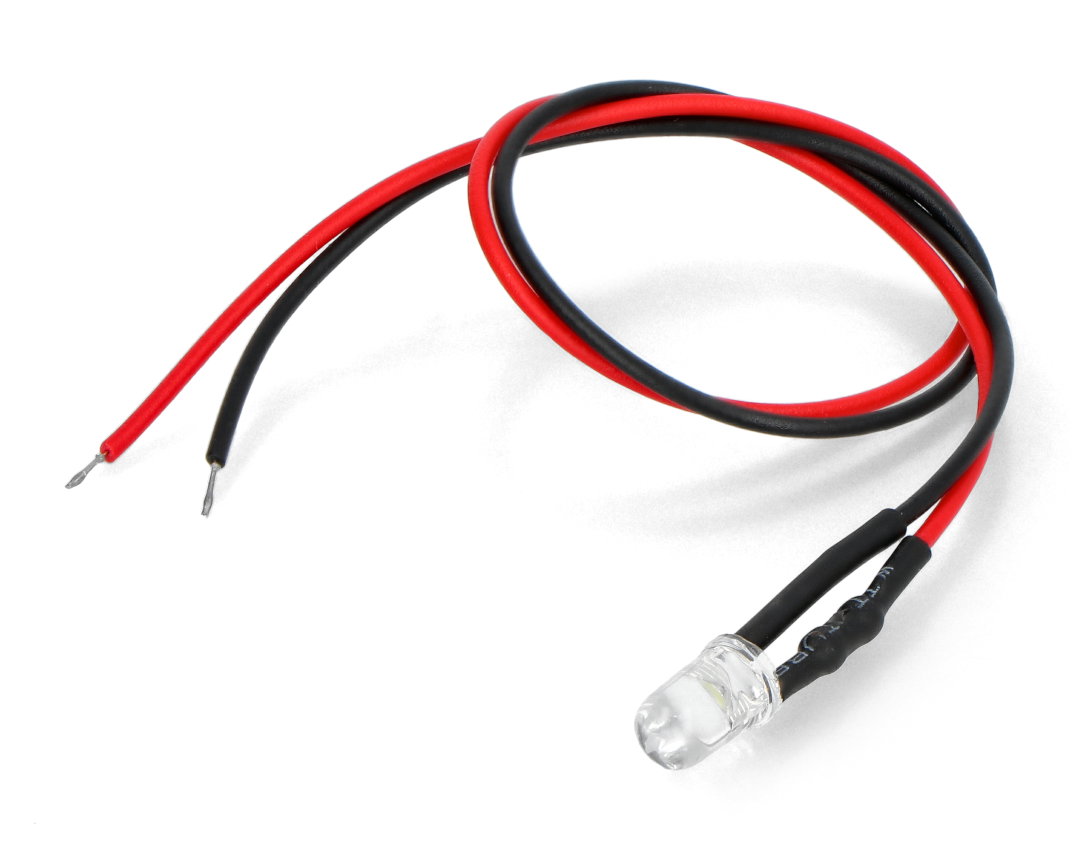

5 mm white LED with an attached resistor and a cable approx. 20 cm long, powered with 12 V. The maximum current consumption by the diode is 22 mA . The LED lighting angle is 30 ° .
Items sold in bundles of 5.
LED specification
- Supply voltage: up to 12 V
- Maximum current consumption by the diode: 22 mA
- Matte white lens
- Housing: DIP 5 mm
- White color
- LED beam angle: 30 °
- Cable length: approx. 20 cm
5mm 12V LED with resistor and cable.
5mm 12 V LED with resistor and cable - universal and easy to install!
A frequent step in designing electronic circuits that contain LEDs is the need to add additional current limiting resistors . This can be a bit difficult, especially when we have LED diodes in different light colors in the system, which differ, among others, in current consumption and forward voltage. The use of a ready-made LED with a built-in resistor greatly facilitates the design.
5mm 12V LED with resistor and cable - simple and practical test tool!
When diagnosing faults and repairing electronic equipment, we often meet the standard values of supply voltages. In addition to the popular, "microcontroller" values of 3.3 V or 5 V, it can meet the voltage of 12V (eg in computer power supplies). If you want to check the presence of 12V voltage in the system being diagnosed, we do not necessarily need to reach for a multimeter - just applying the LED with a built-in resistor! In order to facilitate the use of this tool, we recommend soldering the crocodile clips to the LED wires.
