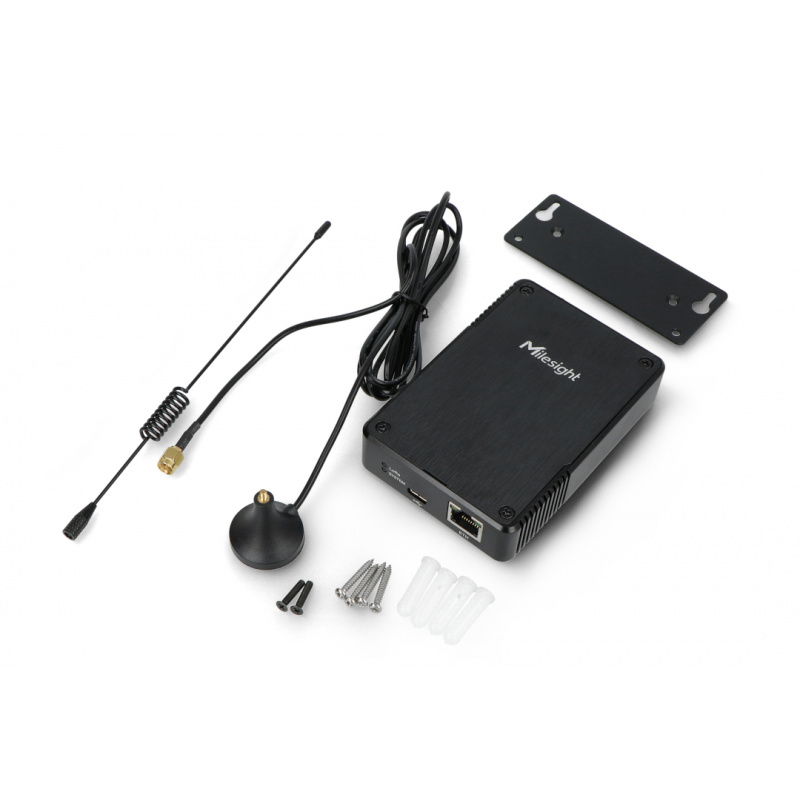

Product description: LoRaWAN WiFi / Ethernet + LTE switchboard - black - Milesight UG56-L04EU-868M
The Milesight UG56-L04EU control unit is a modern LoRaWAN network gateway intended for use in buildings and industrial plants. Thanks to its small size and built-in LTE router, it is extremely versatile and easily adapts to individual needs. Its advanced technology allows you to connect to as many as 2,000 devices , while offering an impressive range of up to 15 km in open terrain or 2 km in densely built-up urban areas. The smart home control unit has been designed for maximum flexibility, enabling integration with various BMS systems, including BACNet , and supporting popular protocols such as MQTT and HTTP . Moreover, for those who want to adapt its operation to their own needs, the gateway offers the possibility of programming in Python SDK or Node-RED . The internal architecture is based on a 1.3 GHz quad-core processor supported by 512 MB RAM , which guarantees smooth and reliable operation.
A network gateway is used to manage all smart devices on the network.
Main features of a network gateway
- Indoor LoRaWAN gateway intended for buildings and industrial plants
- It has a built-in LTE router
- Range up to 15 km in open terrain and 2 km in urban areas
- Support multiple protocols including TCP, MQTT, HTTP, HTTPS
- Programmable with Python SDK and Node-RED
- Compatibility with various BMS systems, including BACNet
- Built-in web server for easy management and configuration of the device
- 4-core processor with a frequency of 1.3 GHz and 512 MB RAM and 8 GB eMMC memory
- External antenna improving signal range and quality
- Communication method: WiFi, Ethernet
- Integrated management and monitoring tools such as DeviceHub and Milesight IoT Cloud
- Built-in security and VPN options
Industrial LoRaWAN network gateway
The internal LoRaWAN gateway is a specialized device designed to operate inside buildings or industrial plants. It controls all devices connected to the gateway completely remotely. It serves as a key element in the LoRaWAN network, transforming radio signals into data that can be processed and forwarded over the network.
Connection to multiple devices
The Milesight control unit is an advanced network gateway constructed of high-quality hardware components, which allows it to operate many devices at the same time. It enables communication with various types of sensors, meters and other elements using LoRaWAN technology for a significant number of 2,000 devices . Thanks to this, the user can create complex and versatile monitoring and control systems in various applications and environments.
The LoRaWAN central unit allows you to connect up to 2,000 devices simultaneously.
The product is compatible with the free Milesight ToolBox smartphone application.
Built-in LTE router
The built-in LTE router is an important element of this gateway, enabling it to connect to the network via the cellular network . Thanks to this function, the gateway can operate independently of traditional Internet connections, which is particularly useful in places with limited access to wired networks.
Synchronization with the smartphone application
This product is compatible with the Milesight ToolBox application for smartphones. Thanks to this integration, users can remotely monitor and configure device parameters directly from their phone. Synchronization takes place via NFC technology, which ensures quick and intuitive pairing of the device with the application. Milesight ToolBox allows convenient access to measurement data, record history and sensor configuration settings even when away from home.
Technical specifications of the control unit
- Producer: Milesight
- Model: Industrial LoRaWAN Gateway UG56-L04EU
- Product code: UG56-L04EU-868M
- Device connection technology: wireless
- Wireless protocol: LoRaWAN, WiFi, LTE
- Frequency: 868MHz
- Power supply: USB-C or Ethernet RJ45 cable
- Processor: 4-core Cortex-A35, 1.3 GHz
- Memory: 512 MB RAM and 8 GB eMMC
- Antenna connector: 1 x SMA
- Number of available channels: 8
- Maximum number of connected devices: up to 2000 devices
- Embedded web server: yes
- Programming: Python SDK and Node-RED
- Protocol support: TCP, MQTT, HTTP, HTTPS
- Encryption: VPN
- Device operating temperature range: from -20°C to 60°C
- The device's operating humidity range: from 0% to 95% RH
- IP degree of protection: IP30
- Application: Milesight ToolBox, Milesight IoT Cloud
- Product color: black
- Dimensions: 110 x 75 x 24 mm
The control unit is powered via a USB-C or RJ45 cable.
LoRaWAN wireless communication protocol.
LoRaWAN communication protocol
LoRaWAN is a global communication standard for IoT networks, based on LoRa technology, which is characterized by a long range. Thanks to this protocol, devices can communicate with network gateways over a distance of several kilometers in urban environments and up to several dozen kilometers in rural areas. At the same time, LoRaWAN-based devices are known for their low power consumption, making them an ideal choice for applications where batteries need to function for years without the need for recharging. In response to different network conditions, LoRaWAN can adjust the transmission rate, which helps optimize coverage and energy consumption.
