Grove - LS06-S ambient light sensor v1.1

Index: SEE-13335 EAN: 5904422350093

Module from the Grove series is equipped with a sensor LS06-S. The sensor allows to determine the intensity of the light and reflects the analog voltage signal back to Arduino. The beam's length is 540 nm. The supply voltage ranges from 3 V to 5 V. The sensor communicates via an analog signal, making it compatible with most commissioning modules, including Raspberry Pi and Arduino.

€4.99
€4.06 tax excl.
In stock, shipping 24 hours!
Check quantity
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: Seeedstudio
Compatibility: Arduino Raspberry Pi

Description

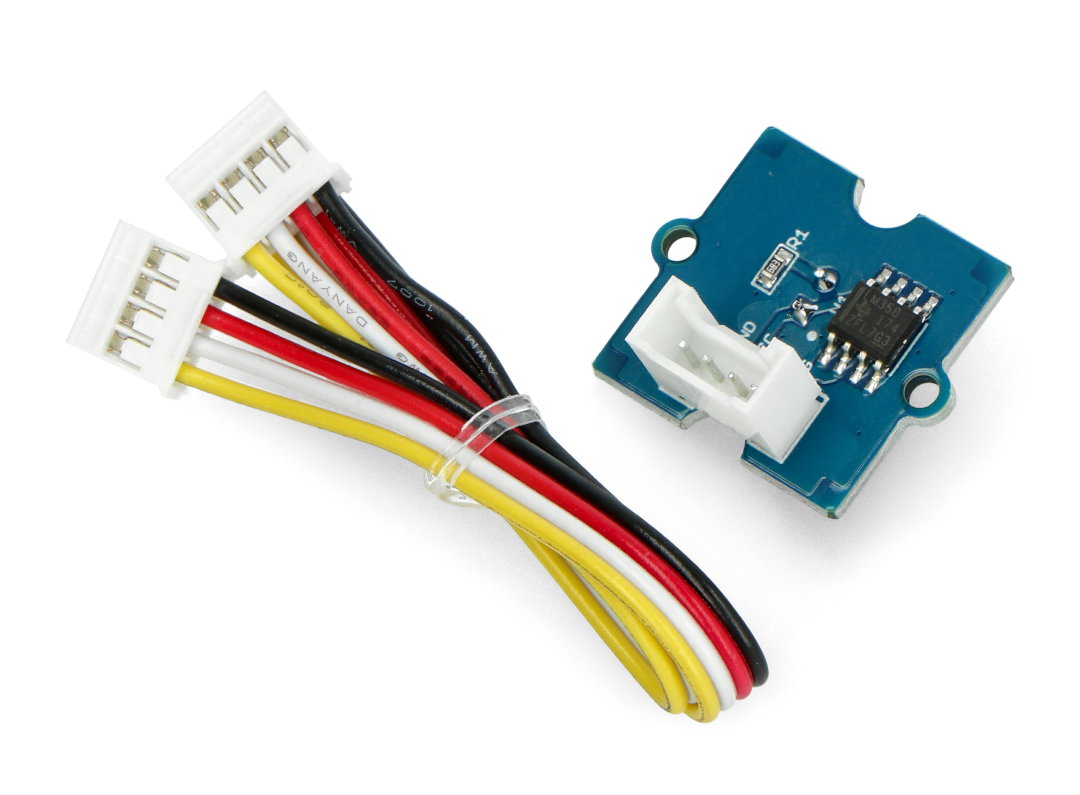

Module from the Grove series is equipped with a sensor LS06-S. The sensor allows to determine the intensity of the light and reflects the analog voltage signal back to Arduino. It is equipped with photoresistor which decreases its value along with increasing the light intensity. Beam length is540 nm. Supply voltage isfrom 3.3 V to 5 V. The sensor communicates viaan analog signal,making it compatible with most commissioning modules, includingRaspberry PiandArduino.

Connection

The module is equipped with Grove interface facilitating its connection tothe Arduinoalong with Base Shield v2.0orRaspberry via Hat from GrovePi+.

Grove-czujnik natężenia światła

Pin Description
GND The ground of the system.
VCC The supply voltage of 5 V.
NC Not connected.
SIG The analogue output signal.

The user manual

The manufacturer has prepared auser guideanda free library.

Specification

  • Supply voltage: from 3.3 V to 5 V
  • Current consumption: 0.5 mA to 3 mA
  • Applied systems:LM358
  • Photodiode: LS06-S
  • The length of a light beam: 540 nm
  • Response time: 20-30 milliseconds
  • Dimensions: 20 x 20 mm
  • Weight: 4 g
