Description
UV sensor with voltage supply from 3.3 V to 5 V. Output analog voltage, proportional to the intensity of UV radiation. The sensor can be used to detect harmful solar radiation. The kit includes a cable adapted to SeeedstudioBase Shield v2.0.

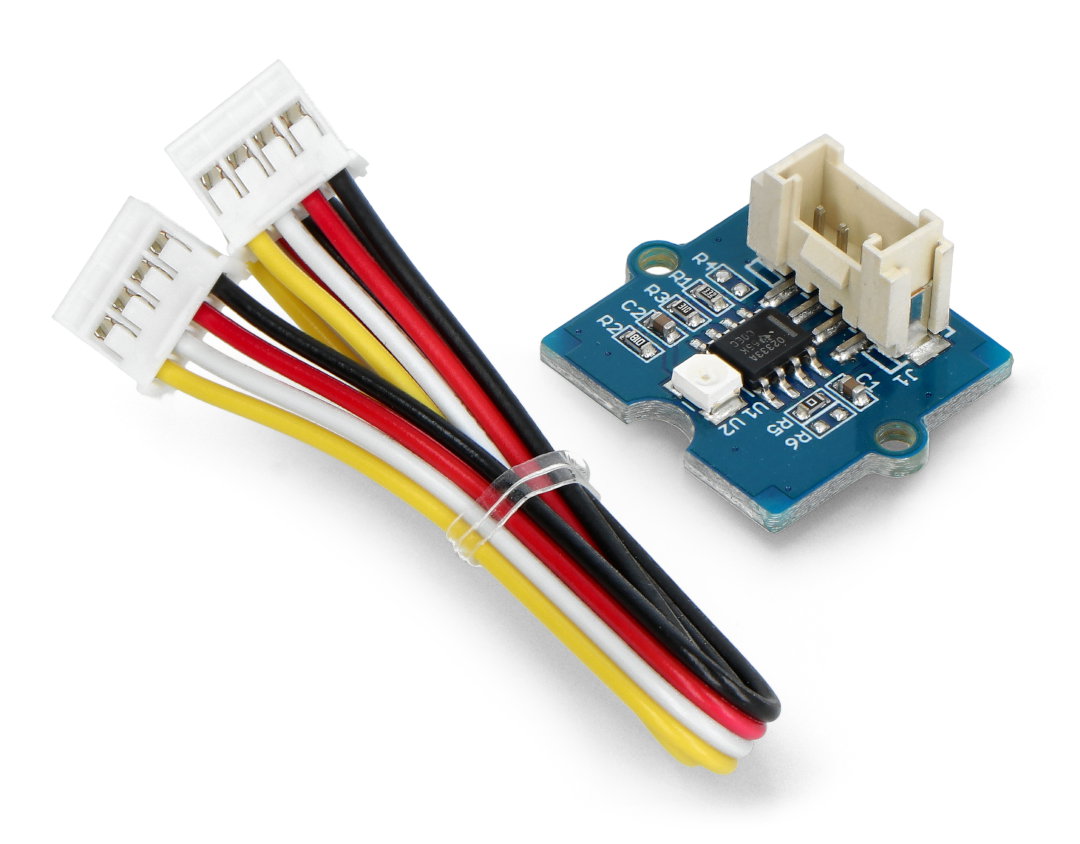

Module supplied with 4-pin cable for Base Shield v2
Specification
- Supply voltage: from 3.3 V to 5 V
- Analog output signal
- Two mounting holes with a diameter of 2 mm, located at a distance of 20 mm
- The kit includes a cable with Grove connectors

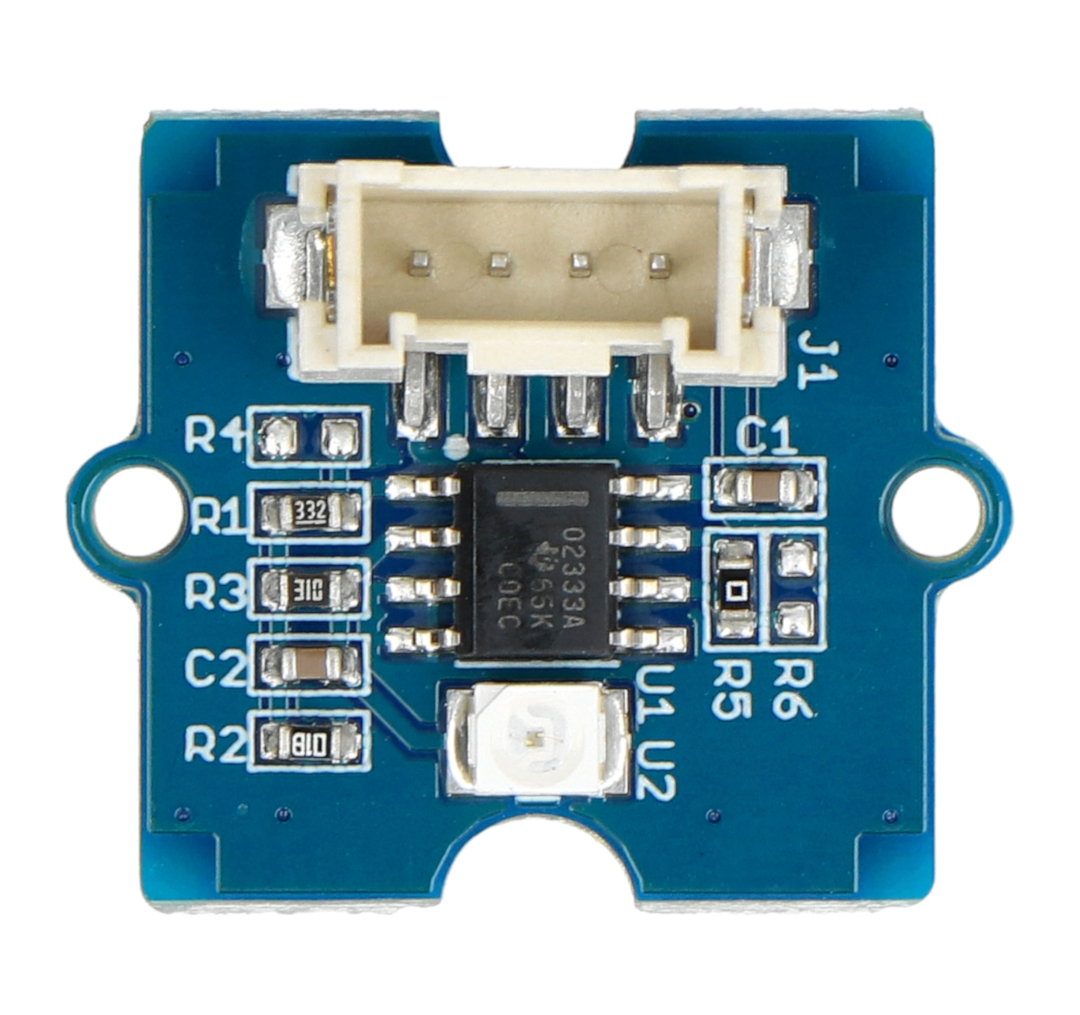

- Module dimensions: 20 x 20 mm
|
The product is compatible with Arduino The manufacturer offers auser guide, together with examples forArduino. |
Connection
The sensor communicates with the microcontroller the analog way. Grove connector comprises of the following pins:
| Pin | Description |
|---|---|
| GND | The ground of the system. |
| VCC | Supply voltage from 3.3 V to 5 V. |
| NC | Not connected. |
| SIG | Analog output signal. |
|
Grove is a series of modules and sensors that are compatible withBase Shield boards working withArduinoandSTM32 Nucleo. |
