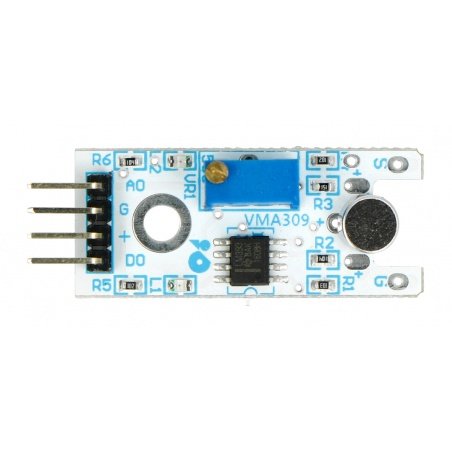

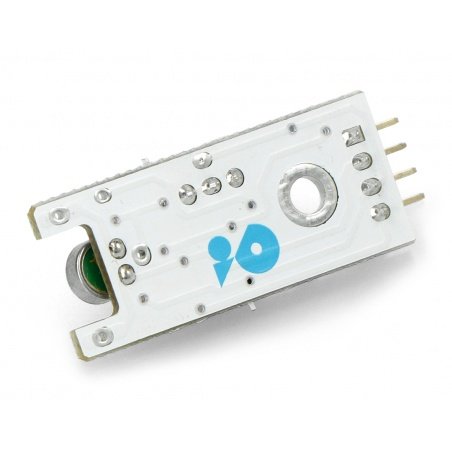

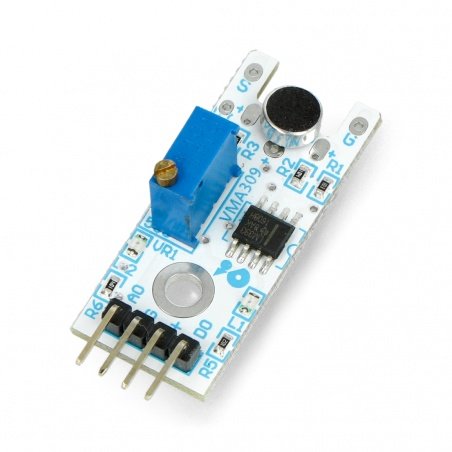

Whadda WPSE309 - sound sensor - microphone

Index: VEL-13023 EAN: 5410329657178

Sound detector powered by a voltage from 3.3 to 5 V. The module is easy to use, it has two outputs: analogue - enabling measurement of signal intensity and digital - changing state after exceeding set level.

€3.89
€3.17 tax excl.

Available, 24 hours shipping!
(Check quantity)
Shipping in 24 hours
30-day returns
PayPal payment
Compatibility: Arduino

Product description: Whadda WPSE309 - sound detector - microphone

Sounddetector powered by a voltage range from 3.3 to 5 V. The module is easy to use, has two outputs: analog - to measure the intensity of the signal and digital - changing state after exceeding a set level.

Pin Description
VCC Supply voltage: from 3.3 V to 5 V.
GND System ground.
A0 Analog data connectors.
D0 Digital data connectors.

Technical specification of the sound sensor

  • Supply voltage: from 3.3 V to 5 V
  • Connectors: digital and analog
  • Mounting: 3 mm hole
  • LED: 1x power indicator LED + 1x output indicator
  • Frequency response: from 50 Hz to 20 kHz
  • Impedance: 2.2 kΩ
  • Sensitivity: 48 dB to 66 dB
  • Operating temperature: from -40 °C to 85 °C
  • Dimensions: 44 x 15 x 10 mm
  • Weight: 4 g
