Index: SPF-19305 EAN: 5904422370275

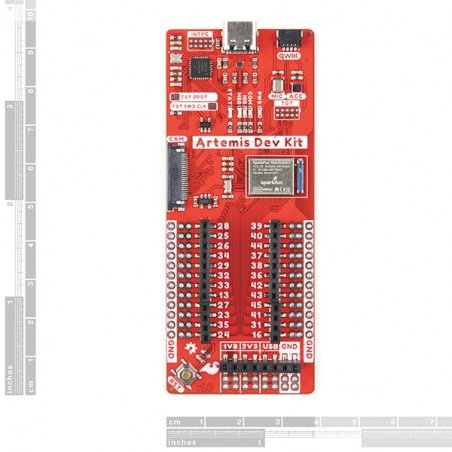

SparkFun's board equipped with Artemis module, accelerometer and MEMS microphone. The heart of the board is Artemis chip based on ARM Cortex M4F processor clocked at 48 MHz and 96 MHz in turbo mode. Current consumption is up to 6 uA / MHz. It is equipped with 1 MB of flash memory and 384 kB of RAM. Artemis module is equipped with Bluetooth 5.0 communication. The board can be programmed in Arduino IDE environment, just like Arduino UNO module. The device allows to run RTOS such as ARM Mbed OS or AmbiqSDK. There is also a Himax camera connector on the board.
€45.98
€37.38 tax excl.
Waiting time approx. 4-6 weeks
Only on request
30-day returns
PayPal payment
Manufacturer: SparkFun

Product description: SparkFun Artemis microcontroller board - SparkFun DEV-16828

A board from SparkFun equipped withArtemismodule,accelerometerand MEMS microphone. The heart of the board is Artemis chip based onARM Cortex M4Fprocessor clocked at48 MHz and 96 MHz in turbo mode. Current consumption is up to6 uA / MHz. It is equipped with 1 MB of flash memory and 384 kB of RAM. Artemis module is equipped withBluetooth 5.0communication.The board can be programmed in Arduino IDE environment, just like Arduino UNO module. The device allows to runRTOSsuch as ARM Mbed OS or AmbiqSDK. The board is equipped with LIS2DH12TR accelerometer chip, microphone,Qwiic I2Cconnector and Himax CMOS camera connector. All Artemis module connectors have been placed on2.54mm goldpinstrips. These are the interfaces such as: ADC, PWM, UART. The board communicates with a computer through aUSB type Cconnector, it is visible as a mass storage device. The module is programmed using the "drag and drop" method.

The manufacturer has prepared auser guidewith sample programs.
Płytka z modułem ArtemisThe board is equipped with Bluetooth 5.0 Artemis module.

Specification of the board with Artemis microcontroller

  • Compatible with Arduino, Mbed OS and AmbiqSDK
  • Power supply:
    • 5V via USB type C connector
    • 1,8 V; 3,3 V; 5 V via GPIO connectors on board
  • Interface chip (MKL26Z128VFM4 ARM Corex M0+):
    • drag and drop programming
    • SWD interface
    • JTAG PTH programming
  • Artemis module:
    • Apollo3 ARM Cortex M4F
    • Bluetooth Low Energy 5.0
    • 24 I/O leads:
      • eight 14-bit ADC pins
      • eighteen PWM pins 16-bit
      • two independent UART ports
      • three I2C / SPI lines
    • JTAG PTH programming
  • Sensors:
    • 3-axis accelerometer (LIS2DH12)
    • PDM microphone (SPH0641LM4H-1)
    • Camera connector (for Himax HM01B0)
  • Qwiic connector: I2C line
We also offera setwith Himax camera and USB cable.
UC - Microcontroller Apollo3
