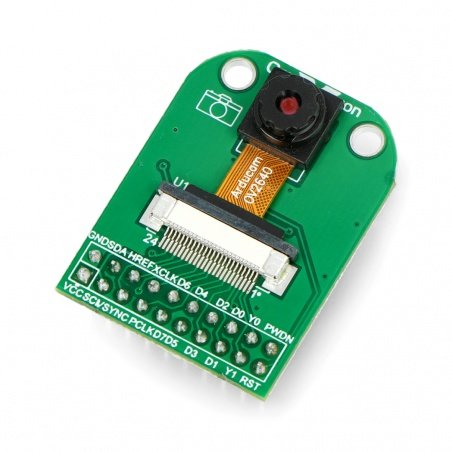

ArduCam OV2640 2MPx 1600x1200px 60fps - camera module

Index: ACM-06562

Module with camera 2 MPx with a resolution of 1600 x 1200px and speed up to 60 frames per second. It gives the opportunity of taking photos and recording video clips. The device operates with a voltage of 3.3 V and 5 V, it communicates through a parallel interface, it has a sensitivity of 0.6 V/(lux*sec), the angle of view of 25°, the lens is 1/4".

€11.60
€9.43 tax excl.

In stock, shipping 24 hours!
(Check quantity)
Shipping in 24 hours
30-day returns
Manufacturer: ArduCam
Compatibility: Arduino

Description

Module with camera 2 MPx with a resolution of 1600 x 1200px and speed up to 60 frames per second. It gives the opportunity of taking photos and recording video clips. The device operates with a voltage of 3.3 V and 5 V, it communicates through a parallel interface, it has a sensitivity of 0.6 V/(lux*sec), the angle of view of 25°, the lens is 1/4".

ArduCam OV2640 2MPx do Arduino

A detailed description can be found on the manufacturer's website, it is also available in the library on GitHub.

Specification

  • Operating voltage: 1.7 V to 3.3 V
  • Resolution: 1600 x 1200 Px (2 Mpx)
  • The number of frames per second:
    • up to 60 FRAMES per second for CIF format
    • up to 30 FRAMES per second for SVGA format
    • up to 15 FRAMES per second for the format SXGA / UXGA
  • Lens size: 1/4 "
  • Sensitivity: 0,6 V/(lux*sec)
  • Angle of view: 25°
  • Output formats:
    • 422/420 YUV / YCbCr 422
    • RGB565/555
    • compressed 8-bit data
    • 8 / 10-bit RAW RGB Data
  • Configuration of sensor through I2C bus

Pins

The device has soldered the 20-pin connector, pitch of 2.54 mm.

ArduCam - podłączenie

PinDescription
VCC Supply voltage is 3.3 V.
GND The ground of the system.
SCL Clock line of the interface Two-Wire.
SDATA Data line of the interface Two-Wire.
VSYNC Vertical synchronization.
HREF The HREF output.
PCLK The clock output of the matrix's sensor.
XCLK The input of the clock system.
D9 The video data output - bit 9 (MSB).
D8 The video data output - bit 8.
D7 The video data output - bit 7.
D6 The video data output - bit 6.
D5 The video data output - bit 5.
D4 The video data output - bit 4.
D3 The video data output - bit 3.
D2 The video data output - bit 2 (LSB).
D1 The output of video data - bit 1 (10-bit mode).
D0
The video data output - bit 0 (mode of 10-bit).
RESET The system reset activated by low state.
PWDN Disabling the system activated by high state.



Interface GPIO
Resolution 1600x1200px
Camera - matrix OV2640
Camera - format 1/4 ''
Camera - type module
