Servo Feetech FT5325M - standard

Index: FTC-17696 EAN: 5904422362195
Standard type servo from Feetech, is powered by 6 V to 7.4 V. The no-load current consumption is 1200 mA. The range of motion of the servo is from 0° to 180°. It has a 300 mm long cable, which is terminated with a JR connector. The torque of the servo is 25 kg*cm. The kit includes several additional orbs designed for the servo and the parts needed to mount them.
Servo Feetech FT5325M - standard
€18.50
€15.04 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Feetech

Product Description: Feetech FT5325M servo - standard

Thestandard type servo from Feetech, is powered by6 V to7.4 V. Current consumption without load is1200 mA. Range of movement of the servo is from 0° to 180°. It has a300 mmlong cable, which is terminated with a JR connector. The torque of the servo is 25 kg*cm. The kit includes several additional orbs designed for the servo and the parts needed to install them.

Serwo Feetech FT5325M - standard

Feetech FT5325M servo standard type.

Serwo Feetech FT5325M - standard

Technical drawing of the Feetech FT5325M servo.

Servo specifications

  • Manufacturer: Feetech
  • Model: FT5325M
  • Supply voltage: from 6 V to 7.4 V
  • Servo type: digital
  • Servo range: 0° to 180°
  • Storage temperature: from -30°C to 80°C
  • Operating temperature: from -20°C to 60°C
  • Cable length: 30 cm
  • Orbit type: 25T / 9.5 mm
  • Controls:
    • Stop position: 1500 µs
    • Counterclockwise rotation: 1500 -> 2000 µs
    • Maximum pulse range: 500 to 2500 µs
  • Bearing: Ball bearing
  • Degree of protection: IP54
  • Connector: standard JR connector
  • Servo dimensions: 55 x 20 x 43 mm
  • Weight: 67 g

  • Specifications for 6 V:
    • Torque: 20.5 kg*cm
    • Speed: 0.185 s/60°
    • Current consumption when the shaft is stopped: 3 A
    • No-load current consumption: 1000 mA

  • Parameters for 7.4 V:
    • Torque: 25 kg*cm
    • Speed: 0.151 s/60°
    • Current consumption when the shaft is stopped: 3,5 A
    • No-load current consumption: 1200 mA

Package contents

  • Feetech servo FT5325M
  • Set of pendulums
  • Mounting elements

We also offer servocontrollers.

Serwo Feetech FT5325M - standard

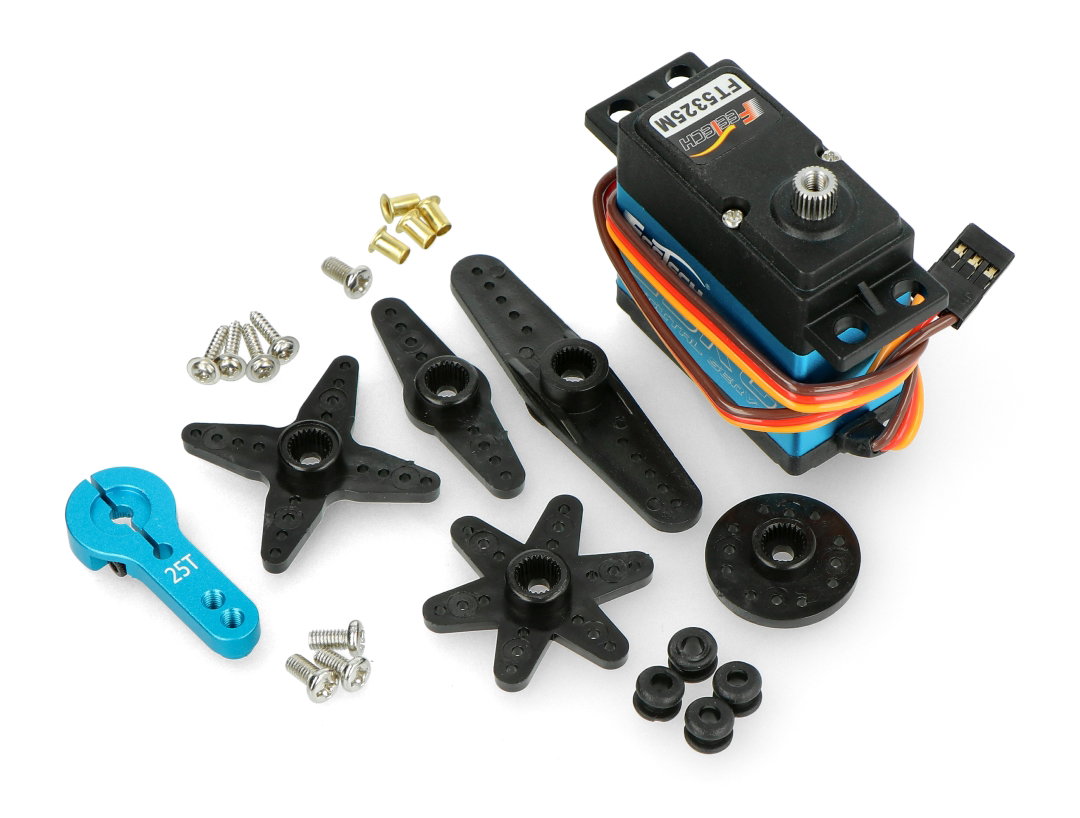

Contents of Feetech FT5325M servo set.

Length 55 mm
Width 20 mm
Height 43 mm
Cable length 0.3 m
Voltage to 6.0 V
Voltage from 7.4 V
Torque 25 kg*cm
Servo - Range 180 °
Servo - Size standard
Servo - Speed 0,15 s/60°
Servo - Type digital
Package width 6 cm
Package height 4 cm
Package depth 6 cm
Package weight 0.088 kg
