Servo TowerPro SG-5010 - standard

Index: MOT-00485 EAN: 5904422358068

Servo of standard type, double bearing.

Speed: 0.16 s/60°.

Torque: 6.5 kg.

Dimensions: 40 x 20 x 41 mm.

Weight: 48 g.

Servo TowerPro SG-5010 - standard
€10.49 tax excl.
Shipping in 24 hours
PayPal payment
Manufacturer: TowerPro


  • Supply voltage: from 4.8 V to 6.0 V
  • Range of motion: from 0°to 180°
  • Dimensions:40 x 20 x 41 mm
  • Weight: 48 g
  • Settings for 4.8 V:
    • Torque:5.2 kg*cm (0,51 Nm)
    • Speed:0,20 sec/60°
  • Parameters for 6.0 V:
    • Torque: 6.5 kg*cm (0,637 Nm)
    • Speed: 0.16 s/60°

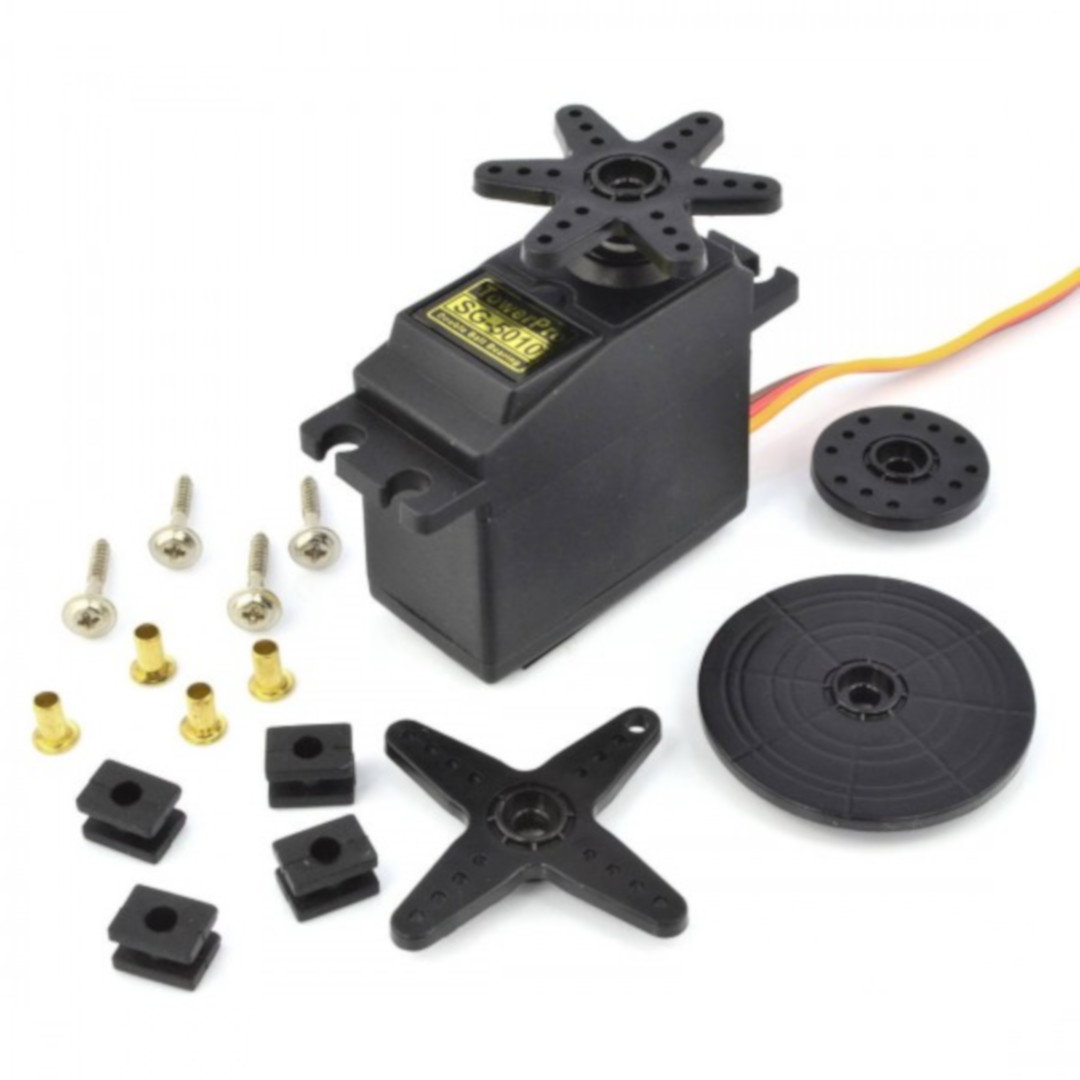

  • Included are sets of lifts, washers, and screws.

Serwo TowerPro SG-5010


In our offer, we also havewireanddrivers of servos.

Length 40 mm
Width 20 mm
Height 41 mm
Voltage to 4.8
Voltage from 6.0 V
Torque 6,5 kg*cm
Mass 48 g
Servo - Range 180 °
Servo - Size standard
Servo - Speed 0,16 s/60°
Servo - Type analog
Package width 8 cm
Package height 3 cm
Package depth 11 cm
Package weight 0.059 kg



Question: What current intensity is needed to power this servo?
Answer: We connected the servo along with the controller to a lab power supply and the maximum consumption I was able to get by making continuous left-right movements was about 180 mA.

Product reviews

Servo TowerPro SG-5010 - standard


Average grade


Customers opinion
The following opinions are collected
and verified by
an external partner Trustmate
and come from the post-purchase process.
PETER 18.01.2024 Confirmed purchase Translated review
For this price, they are good.
Dušan 15.01.2024 Confirmed purchase Translated review
First of all, for that price, standard servos are not easy to find. They are more suitable for a relaxed airplane for flying after Sunday lunch. For an acrobat, I would probably choose faster and more precise ones. They are quite quiet, even in a model where the fuselage acts as a soundbox. I haven't tested them yet with a running combustion engine or during flight, so I don't know how they will handle vibrations... Otherwise, they are standard servos ;-) I recommend them.
Jarosław 05.09.2023 Confirmed purchase Translated review
Ham order fulfillment.
Marek J. 07.08.2021 Confirmed purchase Translated review
works as it should
Jakub K. 22.05.2021 Confirmed purchase Translated review
Alright servo. The screw in the set was suitable for the shaft, which was not always the case in other stores. The smaller of the round orcs has a tendency to slide down under the influence of certain forces.
Rafał B. 17.05.2021 Confirmed purchase Translated review
Łukasz 02.04.2023 Confirmed purchase
Norbert 12.12.2022 Confirmed purchase
