Servo PowerHD WH-30KG - standard waterproof
Digital servo standard type PowerHD WH-30KG enclosed in an aluminum, waterproof housing. Made using high quality materials. The mechanism has a double ball bearing and a gear made of titanium and steel. The rotation angle of PowerHD WH-30KG is 90° and the torque of the device is 30 kg*cm for 8.4V supply voltage. The module is supplied with voltage from 6 V to 8.4 V. The set includes orbs, screws and necessary accessories needed for the proper work of the servo.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Servo PowerHD WH-30KG - standard waterproof
Digitalservostandard typePowerHD WH-30KGenclosed in a waterproof aluminumhousing. Made using high quality materials. The mechanism has a double ball bearing and a gear made oftitaniumandsteel. The rotation angle of PowerHD WH-30KG is90°and the torque of the device is30 kg*cmfor 8.4V supply voltage. The module is supplied with voltagefrom 6 V to 8.4 V. The kit includes theorbs, screws and necessary accessories needed for the proper operation of the servo.

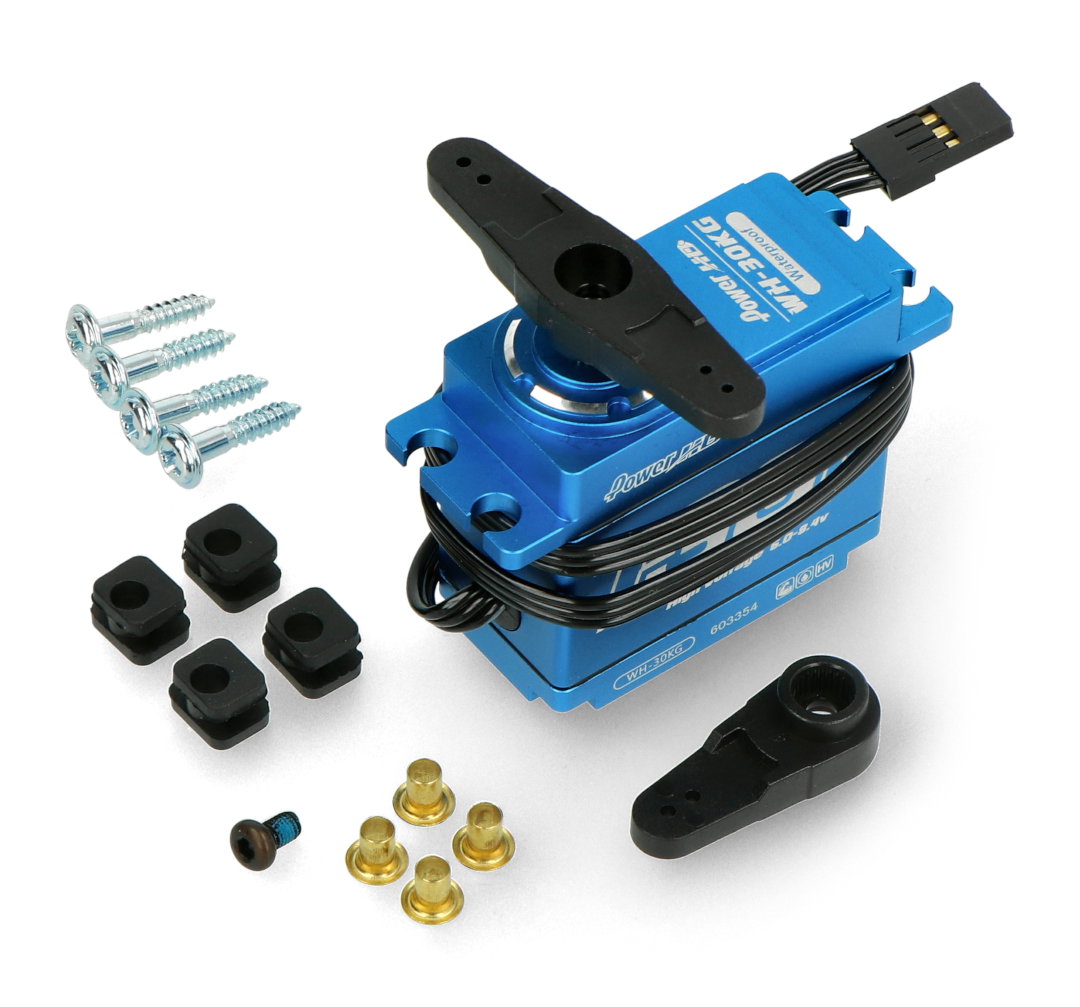

The kit includes the necessary mounting elements.

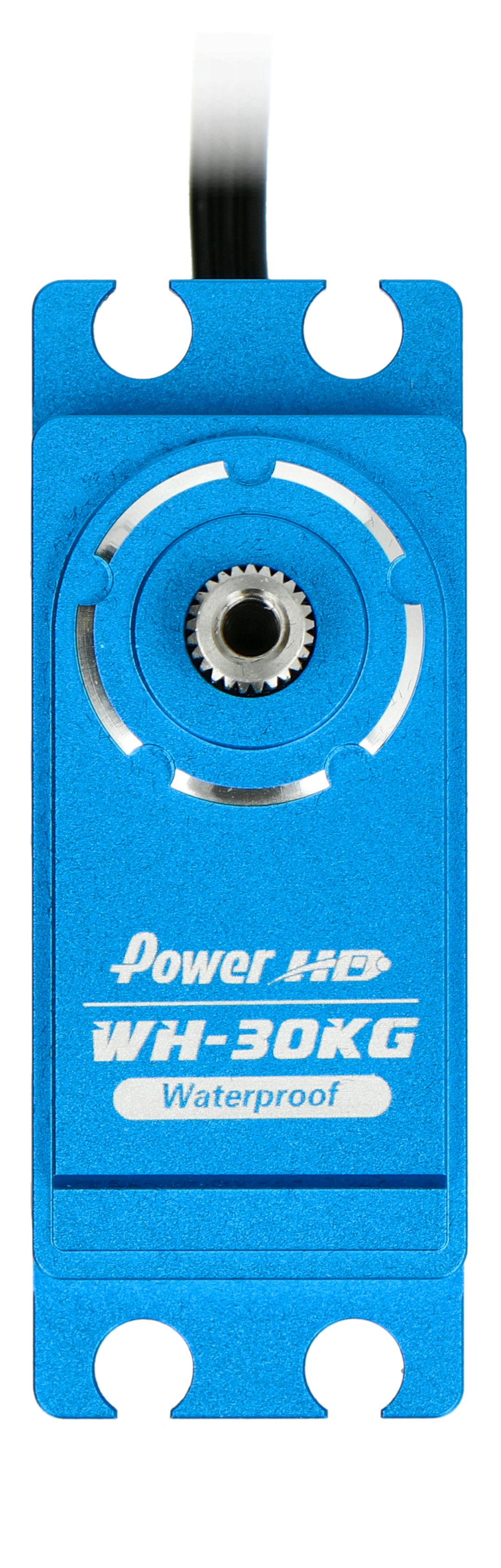

PowerHD servo WH-30KG - in a waterproof housing.
WH-30KG servo specification
- Supply voltage: from 6.0 V to 8.4 V
- Type: digital
- Housing: aluminum, waterproof
- Operating temperature: from -20°C to 60°C
- Operating frequency: 1520 μs / 333 Hz
- Rotation angle: 90°
- Parameters for 6.0 V:
- Torque: 22 kg*cm (2.16 Nm)
- Speed: 0.16 s/60°
- Parameters for 7.4 V:
- Torque: 26.0 kg*cm (2.55 Nm)
- Speed: 0.13 s/60°.
- Parameters for 8.4 V:
- Torque: 30.0 kg*cm (2.94 Nm)
- Speed: 0.11 s/60°.
- Two ball bearings
- Gear made of steel and titanium
- Dimensions: 40.7 x 20.5 x 38.5 mm
- Weight: 82 g
| Name | Value |
|---|---|
| Voltage to | 6.0 V |
| Voltage from | 8.4 V |
| Servo - Range | 90 ° |
| Servo - Size | standard |
| Servo - Speed | 0,11 s/60° |
| Servo - Type | digital |
| Width | 11.4 cm |
| Height | 3.2 cm |
| Depth | 7.6 cm |
| Weight | 0.158 kg |
