Feetech FT5835M servo - standard waterproof

Index: FTC-19428 EAN: 5904422362225
Digital servo standard type Feetech FT5835M closed in aluminum, waterproof housing. With the use of reinforced stainless steel gearbox servo is ideal for modeling and DIY construction. Angle of rotation of the servo Feetech FT5825M is 180° and the torque is 35 kg*cm. Kit includes several additional servo mounts and components needed for their installation.
Feetech FT5835M servo - standard waterproof
€31.44
€25.56 tax excl.
Waiting for confirmation of delivery date
Only on request
30-day returns
PayPal payment
Manufacturer: Feetech

Product description: Feetech servo FT5835M - standard waterproof

Digital servo standard type Feetech FT5835M closed in aluminum, waterproof housing. With the use of reinforced stainless steel gearbox, the servo is ideal for modeling and DIY construction. Feetech FT5825M servo has an angle of 180°and a torque of 35 kg*cm. Kit includes several additional servo mounts and components needed for their assembly.

The mechanism is equipped with a non-contact angle sensor to ensure longer service life of the system, which combined with the waterproof housing and reinforced gearbox made of stainless steel creates an ideal solution for remote-controlled cars, RC boats, helicopters and the broader modeling.

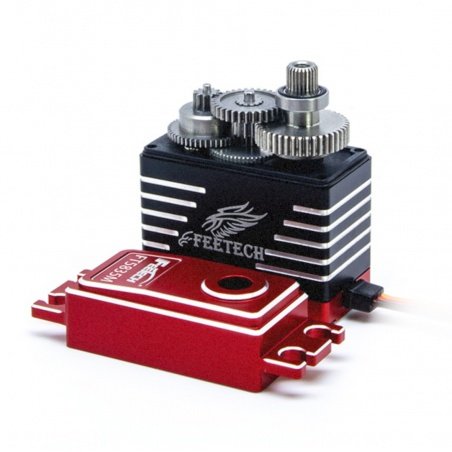

Serwo Feetech FT5825M

FT5835M servo.

Wodoodporne serwo Feetech FT5825M

Feetech FT5835M waterproof servo.

Servo specifications

  • Manufacturer: Feetech
  • Model: FT5835M
  • Supply voltage: 4.8 V to 7.4 V
  • Servo type: digital
  • Operating range: 0° to 180°
  • Water resistance level: IP54
  • Pulse range: 500 to 2500 µs
  • Bearing: ball bearing
  • Connector: JR standard connector
  • Dimensions: 40 x 20 x 43 mm
  • Weight: 90 g

  • Specifications for 7.4 V:
    • Torque: 35 kg*cm
    • Speed: 0.192 s / 60°

Set includes

  • Feetech servo FT5835M
  • Set of spanners
  • Mounting parts

Length 43 mm
Width 20 mm
Height 40 mm
Voltage to 4.8
Voltage from 7.4 V
Torque 35,0 kg*cm
Mass 90 g
Servo - Range 180 °
Servo - Size standard
Servo - Speed 0,192 s/60°
Servo - Type digital
