Servo Feetech FI7635M - standard

Index: FTC-17692 EAN: 5904422346331
Standard type servo from Feetech, is powered by 6 V to 7.4 V. The no-load current consumption is 1150 mA. The range of motion of the servo is from 0° to 180°. It has a 300 mm long cable, which is terminated with a JR connector. The torque of the servo is 35 kg*cm. The kit includes several additional orbs designed for the servo and the parts needed to mount them.
Servo Feetech FI7635M - standard
€33.90
€27.56 tax excl.
Waiting time: 4-6 weeks
Temporarily unavailable
PayPal payment
Manufacturer: Feetech

Product Description: Feetech FI7635M servo - standard

Thestandard type servo from Feetech, is powered by6 V to7.4 V. Current consumption without load is1150 mA. Range of movement of the servo is from 0° to 180°. It has a300 mmlong cable, which is terminated with a JR connector. The torque of the servo is 35 kg*cm. The kit includes several additional orbs designed for the servo and the parts needed to install them.

Serwo Feetech FI7635M - standard

Feetech FI7635M servo standard type.

Serwo Feetech FI7635M - standard

Technical drawing of the Feetech FI7635M servo.

Servo specifications

  • Manufacturer: Feetech
  • Model: FI7635M
  • Supply voltage: from 6 V to 7.4 V
  • Servo type: digital
  • Servo range: 0° to 180°
  • Storage temperature: from -30°C to 80°C
  • Operating temperature: from -20°C to 60°C
  • Cable length: 30 cm
  • Orbit type: 25T / 9.5 mm
  • Controls:
    • Stop position: 1500 µs
    • Counterclockwise rotation: 1500 -> 2000 µs
    • Maximum pulse range: 500 to 2500 µs
  • Bearing: Ball bearing
  • Degree of protection: IP54
  • Connector: standard JR connector
  • Servo dimensions: 55 x 20 x 38 mm
  • Weight: 65 g

  • Specifications for 6 V:
    • Torque: 28.8 kg*cm
    • Speed: 0.172 s/60°
    • Current consumption when the shaft is stopped: 2,8 A
    • No-load current consumption: 950 mA

  • Parameters for 7.4 V:
    • Torque: 35 kg*cm
    • Speed: 0.138 s/60°
    • Current consumption when the shaft is stopped: 3,5 A
    • No-load current consumption: 1150 mA

Package contents

  • Feetech FI7635M servo
  • Set of spools
  • Mounting elements

We also offer servocontrollers.

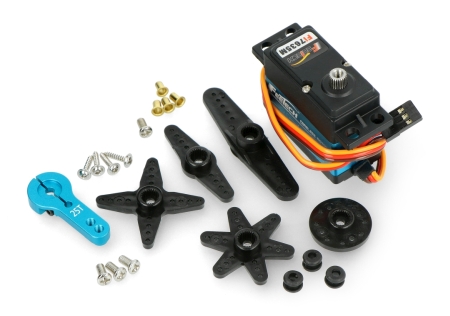

Serwo Feetech FI7635M - standard

Contents of Feetech FI7635M servo kit.

Length 55 mm
Width 20 mm
Height 38 mm
Cable length 0.3 m
Voltage to 6.0 V
Voltage from 7.4 V
Torque 35,0 kg*cm
Servo - Range 180 °
Servo - Size standard
Servo - Speed 0,138 s/60°
Servo - Type digital
Package width 7 cm
Package height 2.5 cm
Package depth 10.5 cm
Package weight 0.094 kg
