Servo DFRobot SER0050 - standard
We could not load the price.
The promotional price does not combine with quantity discounts.

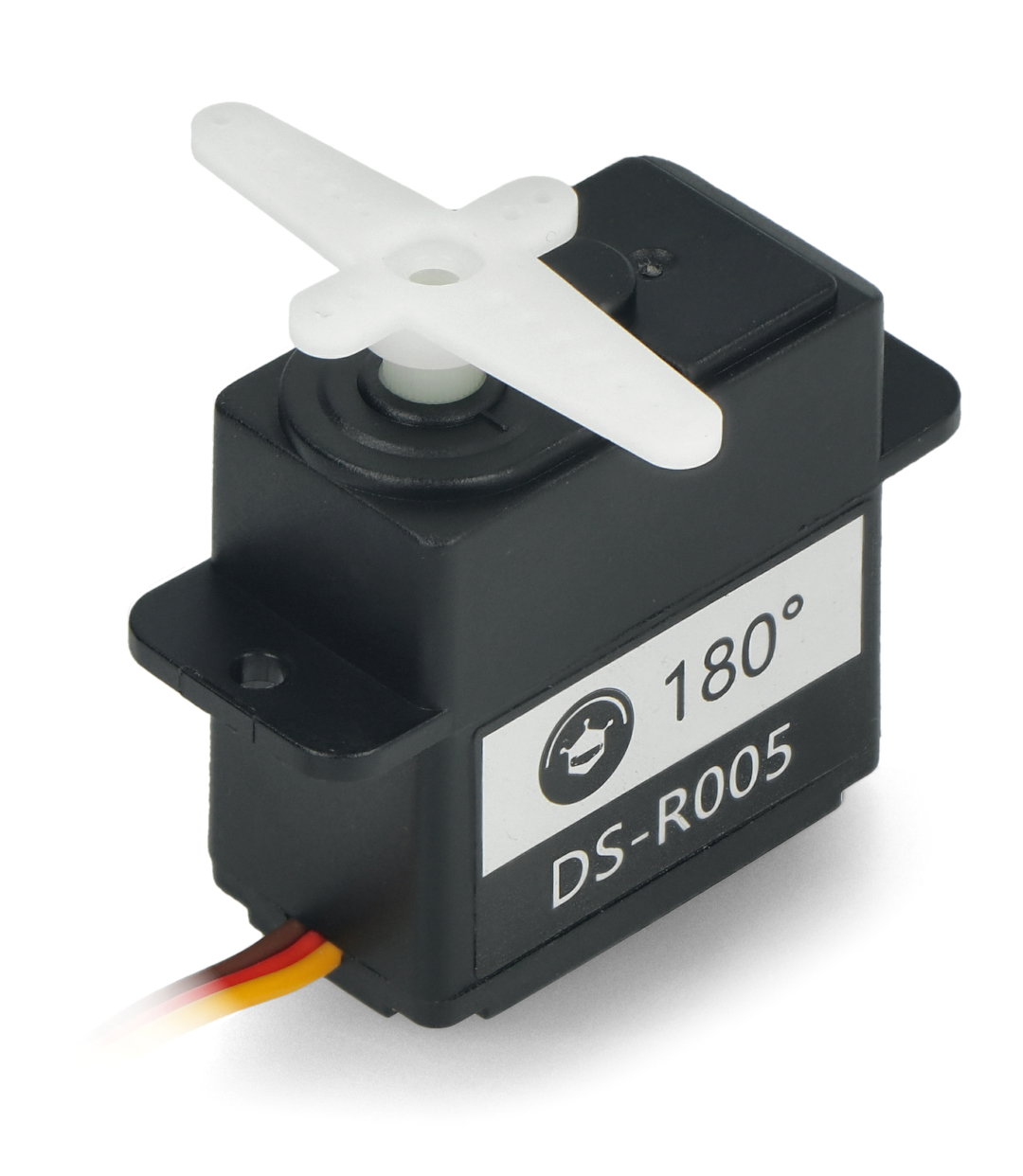

Product description: DFRobot servo SER0050 - standard - 2Kg 180°
The servo brandDFRobotfeatures such as high torque, stable operation, precise working angle and easy installation. The operating voltage rangesfrom4.8 V to 6 V. With 6 V supply, the torque of the servo is2 kg*cm. Inside this servo, you will find no mechanisms to limit its movement, which makes it smoothly rotate 360° (manual only). The servo can operate smoothly with minimal power, and it can be powered by a regular battery. Furthermore, users can directly control the servo using the servo libraries in theArduinoIDE and let it reach a maximum rotation angle of 180° within a pulse range of 500 to 2500 μsec.
We also offercablesandservo controllers.
The servo can be controlled by a microcontroller e.g. .Arduino.
DFRobot servo SER0050 - 2Kg 180°
Botland is an official distributor of DFRobot open-source hardware. Every roboticist and practitioner of emerging technology has heard at least once of DFRobot solutions, built above all around Arduino. Our range holds original DFRobot products only.

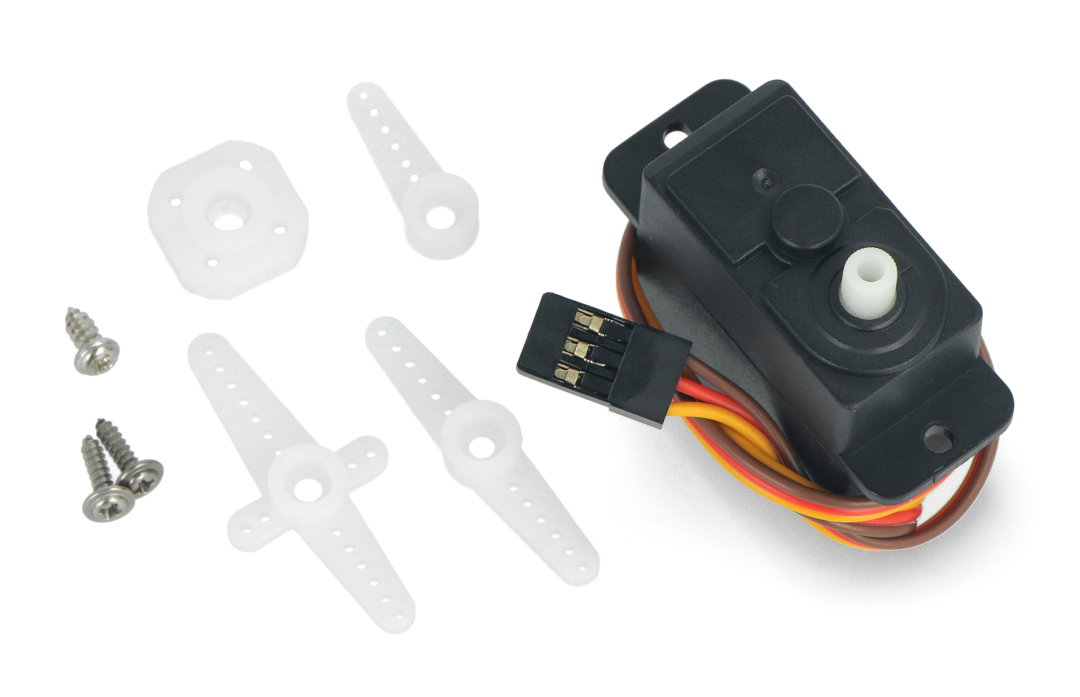

In the picture you can see the composition of the kit.
Technical specifications of the DFRobot servo SER0050
- Operating voltage: 4.8 V to 6 V
- Nominal current consumption: ≤8 mA at 6.0 V
- No-load current consumption:
- ≤110 mA at 4.8 V
- ≤120 mA at 6.0 V
- Current consumption when shaft is stopped:
- ≤700 mA at 4.8 V
- ≤800 mA at 6.0 V
- Rated torque:
- ≥0.45 kg*cm at 4.8 V
- ≥0.55 kg*cm at 6.0 V
- Torque:
- ≥1.6 kg*cm at 4.8 V
- ≥2.0 kg*cm at 6.0 V
- Working angle: 180° ± 10°
- Communication mode: PWM
- Pulse width range: 500 to 2500μs
- Dimensions: 42.4 x 16.6 x 31.5 mm
The kit includes
- Servo 2kg 180° x1
- Servo plate and accessories x1 (set of screws and orbs)
Useful links
| Name | Value |
|---|---|
| Voltage to | 4.8 |
| Voltage from | 6.0 V |
| Torque | 2.03 kg*cm |
| Servo - Range | 180 ° |
| Servo - Size | standard |
| Servo - Type | analog |
| Width | 8.5 cm |
| Height | 1.5 cm |
| Depth | 8 cm |
| Weight | 0.025 kg |
