Product description: SenseCAP Indicator D1L - 4'' IoT touch screen with ESP32S3 + RP2040 LoRa - Seeedstudio 114993070
Versatile SenseCAP D1L development platform based on Raspberry Pi RP2040 and ESP32S3 systems. The D1L version is additionally equipped with the SX2162 system for long-range LoRa wireless communication. The ESP32S3 system also allows WiFi and Bluetooth 5.0 Low Energy communication. The platform has a 4-inch touch display with a resolution of 480 x 480 px . It is a fully open platform, ideal for developers of various IoT applications. SenseCAP Indicator D1L does not have built-in environmental sensors available in other versions, such as tVOC and CO2. Thanks to this, users can independently expand the device with selected sensors and functions, adapting them to individual projects.
The manufacturer has prepared a user's guide to help you start working with the SenseCAP Indicator D1L device.

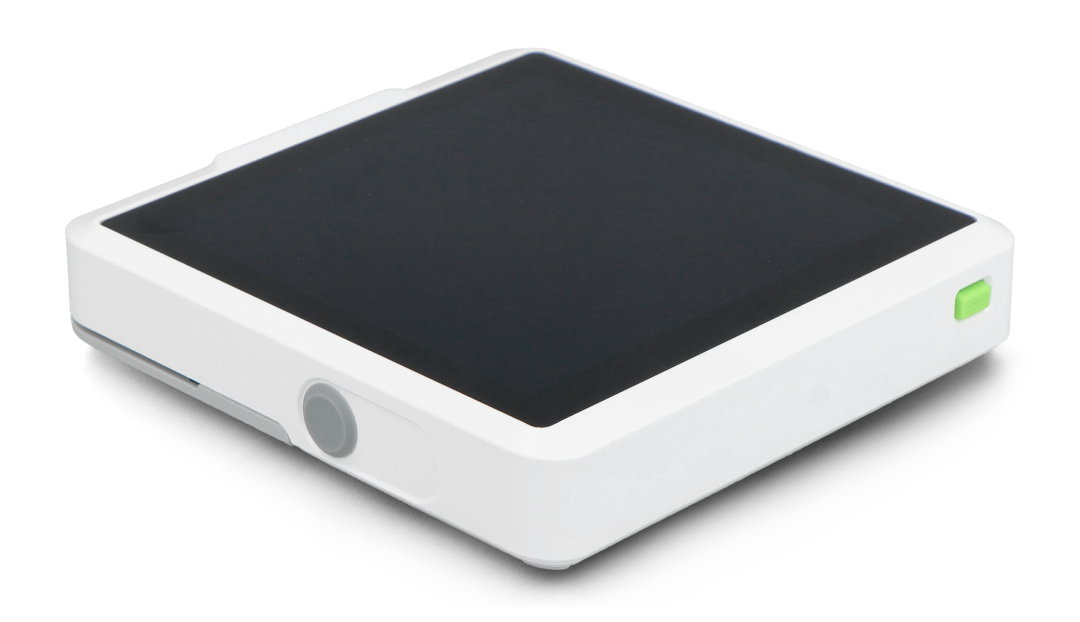

SenseCAP Indicator D1L - 4'' IoT touch screen with ESP32S3 + RP2040 LoRa - Seeedstudio 114993070.

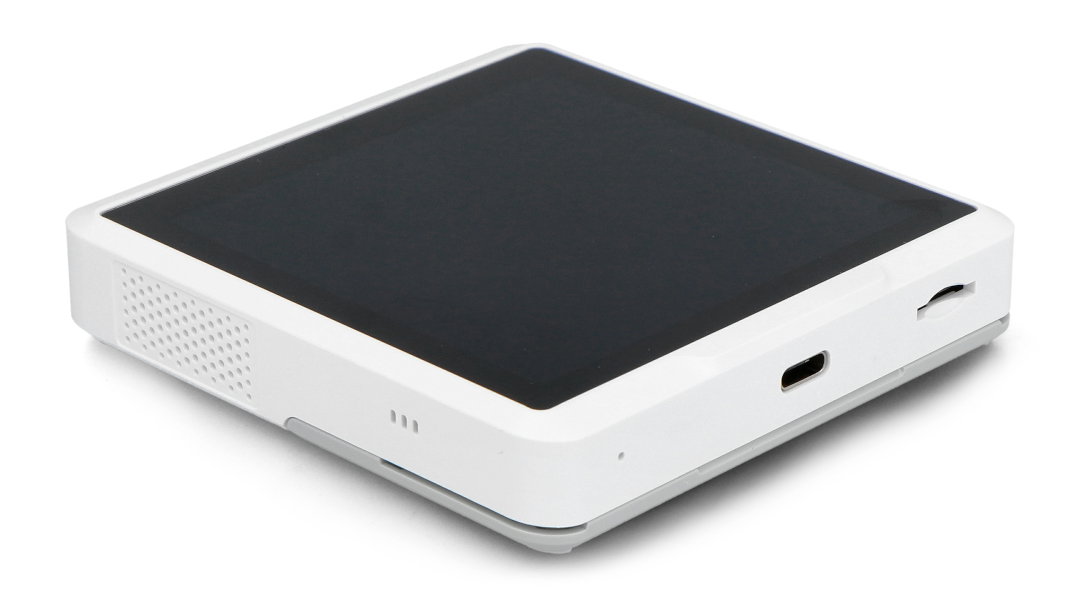

SenseCAP Indicator D1L based on two microcontrollers - ESP32S3 and RP2040 and equipped with a LoRa system.Main features of SenseCAP Indicator D1L
- Two microcontrollers: equipped with powerful ESP32S3 and Raspberry Pi RP2040 microcontrollers.
- Long-range communication : built-in SX2162 chip allowing wireless communication in the LoRa network and creating advanced IoT projects, such as Matter, via WiFi, without any additional accessories.
- Rich GPIO interfaces: compatibility with over four hundred Grove series modules.
- Wireless connectivity: the integrated ESP32 chip allows for WiFi and Bluetooth 5.0 LE wireless communication.
Set contents
- SenseCAP Indicator D1L x1
- USB Type-C cable (1 m) x1
Configuration and applications
SenseCAP Indicator D1L is an advanced IoT platform offering developers wide possibilities. Equipped with two microcontrollers, ESP32S3 and RP2040, ensures performance and versatility. The device works with various platforms, including AWS, ChatGPT, Matter, NodeRED, IoTex, and Home Assistant, offering a wide range of applications.

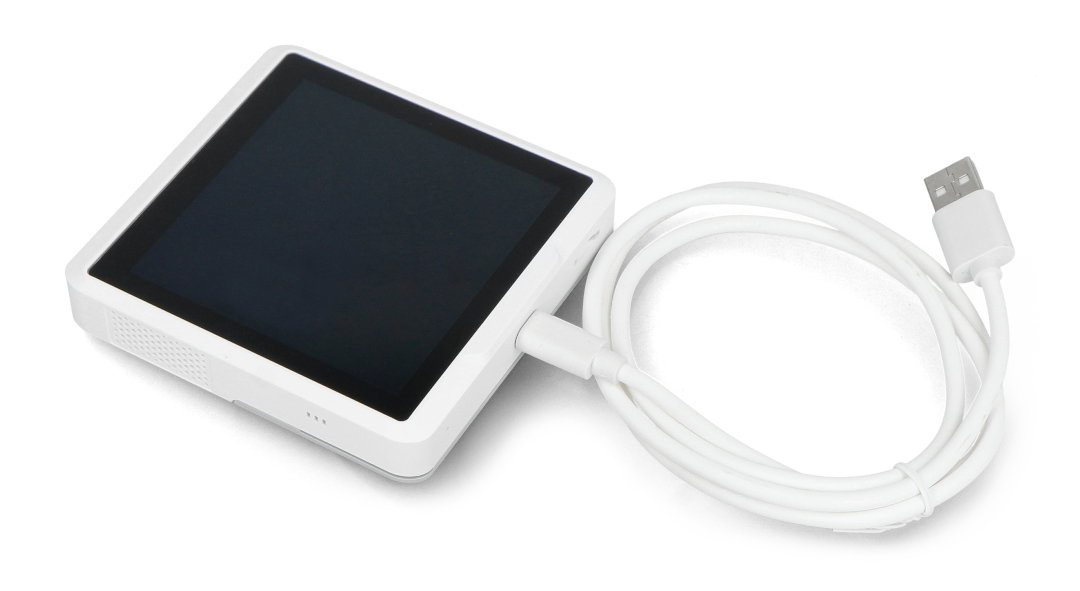

SenseCAP Indicator D1L comes with a USB Type-C cable.
SenseCAP Indicator D1L Specification
- Screen: 3.95", RGB capacitive touchscreen
- Screen resolution: 480 x 480 px
- Power supply: 5V DC, 1A
- WiFi: 802.11b/g/n, 2.4 GHz
- Bluetooth : Bluetooth 5.0 LE
- LoRa SX1262: LoRaWAN / (G)FSK, 21 dBm, range up to 5 km
- Processors:
- ESP32-S3: Xtensa dual-core 32-bit LX7, up to 240 MHz
- RP2040: Dual ARM Cortex-M0+ up to 133 MHz
- Flash memory:
- ESP32S3: 8MB
- RP2040: 2MB
- External memory: microSD card up to 32 GB (not included)
- Buzzer: MLT-8530, resonance frequency: 2700 Hz
