Product description: Universal meter UNI-T UT33B+
UniversalmeterUT33B+ allows to measure DC and AC voltage up to 600 V and DCcurrentup to 10 A. The values are displayed on an illuminatedLCD screenwith dimensions 55 x 23 mm. Meter is powered by 2AAA 1.5 V batteries.Multimeter is equipped witha handle for convenient setting. The measurement wires are included in the set. Before first use, pleasereadthe manual.

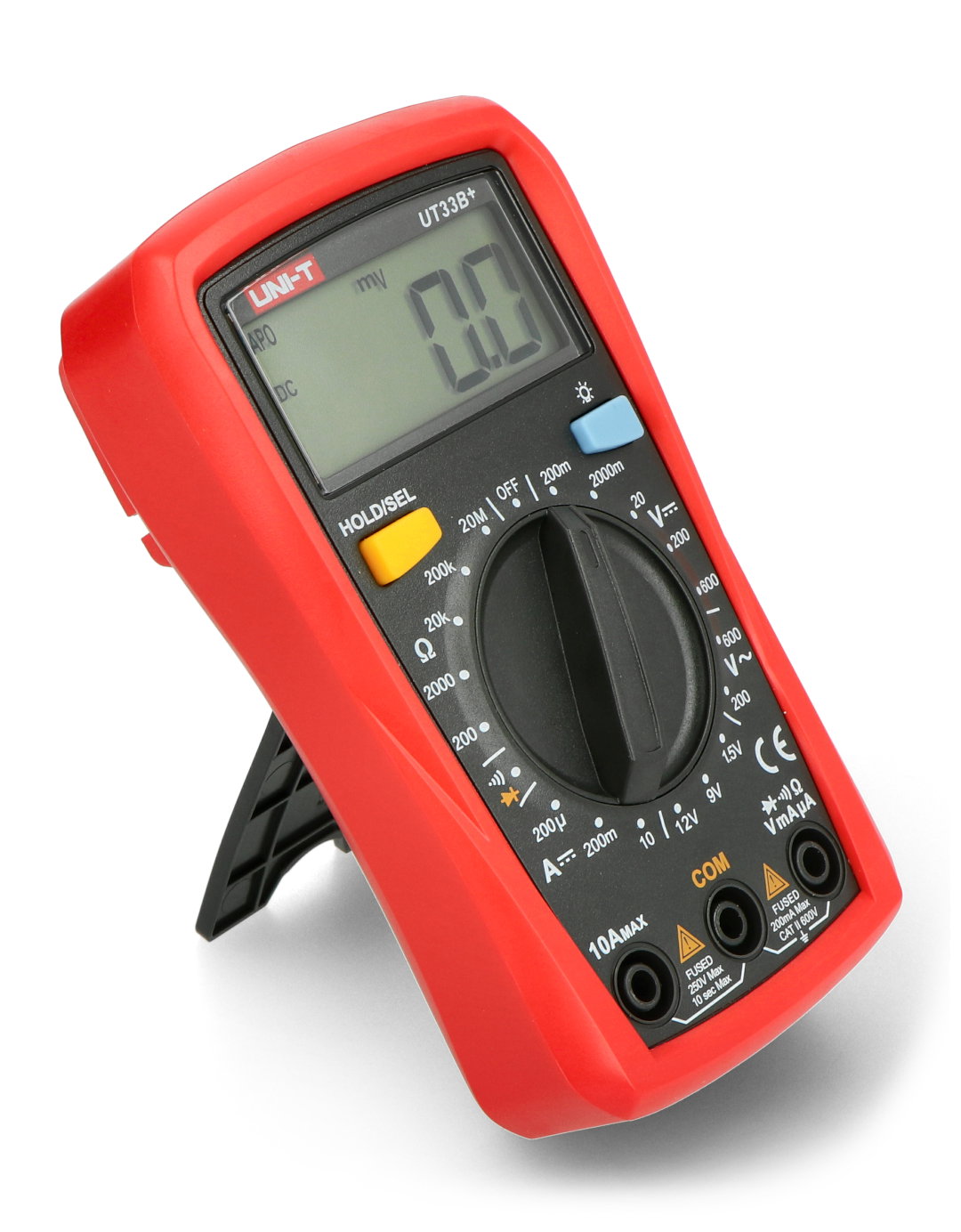

Universal meter Uni-T UT33B+.
Features of the UT33B+ meter
- Backlit LCD screen
- Relative measurement function (only for capacity measurement)
- Freeze last indication - Hold function
- Low battery indicator
- Rotary switch
- Automatic shutdown after 15 minutes
- Maximum displayed value: 2000
The Multimeter has a handle for convenient setting up.
Specification of the meter UT33B+
| Parameter | Scope |
|---|---|
| Manufacturer | UNI-T |
| Model | UT33B+ |
| DC voltage | 200 mV / 2000 mV / 20 V / 200 V / 600 V ±(0.7%+3) |
| AC voltage | 200 V / 600 V ±(1.2%+3) |
| DC current intensity | 200 µA / 200 mA / 10 A ±(1%+2) |
| AC current intensity | No |
| Resistance | 200 Ohm / 2000 Ohm / 20 kOhm / 200 kOhm / 20 MOhm ±(0.8%+2) |
| Capacity |
No |
| Maximum voltage | 600 V |
| Humidity | ≤ 75% RH |
| Socket 10 A | 10 A 250 V 5 x 20 mm fuse |
| MA/uA socket | Fuse 200 mA 250 V 5 x 20 mm |
| Maximum value | 2000, above on OL display, refresh 2-3x/min |
| Polarisation | symbol - displays during minus polarity |
| Inductivity | No |
| Operating temperature | 0°C to 40°C (for more accurate measurement, use the device at 18°C to 28°C) |
| Storage temperature | from -10°C to +50°C |
| Automatic range selection | No |
| Standby | Yes |
| Beacon | Yes |
| Transistor tester | not |
| Diode tester | Yes |
| Battery tester | Yes |
| Data Hold function | Yes |
| Relative measurement | No |
| Data transmission function | No |
| Battery indicator | Yes |
| Backlighting | Yes |
| Display | LCD, illuminated, 55 x 23 mm |
| Dimensions | 134 x 77 x 47 mm |
| Power supply | 2 x1.5 V AAAbattery(LR03) |
| Mass | 205 g |

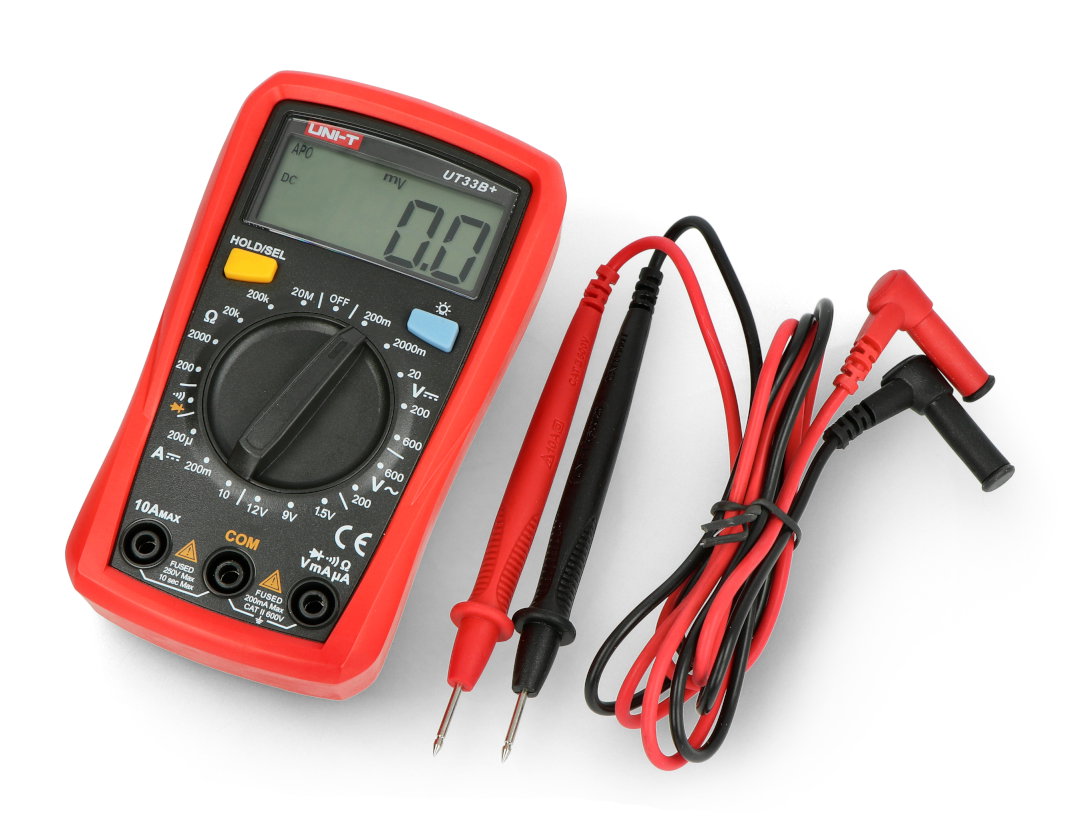

Set contents
- Universal meter UT33B+
- Test leads
- 2x 1.5 V AAA battery
- Operating instructions
