Product description: Universal meter UNI-T UT33C+
Universal meterby UNI-T company gives the possibility to measureDC and ACparameters, as well astemperaturemeasurementsusing theattachedprobes. Received measurements are displayed on the LCD screen, with backlighting function. The measurement takes place as early as 2 seconds after starting the device. The set includestwo1.5 V AAAbatteries,which power the meter, and monitoring of the battery status is possible with a digital indicator located on the panel. Thanks to the built-in handle, the user can comfortably set up the device. Please readthe manualbefore first use.

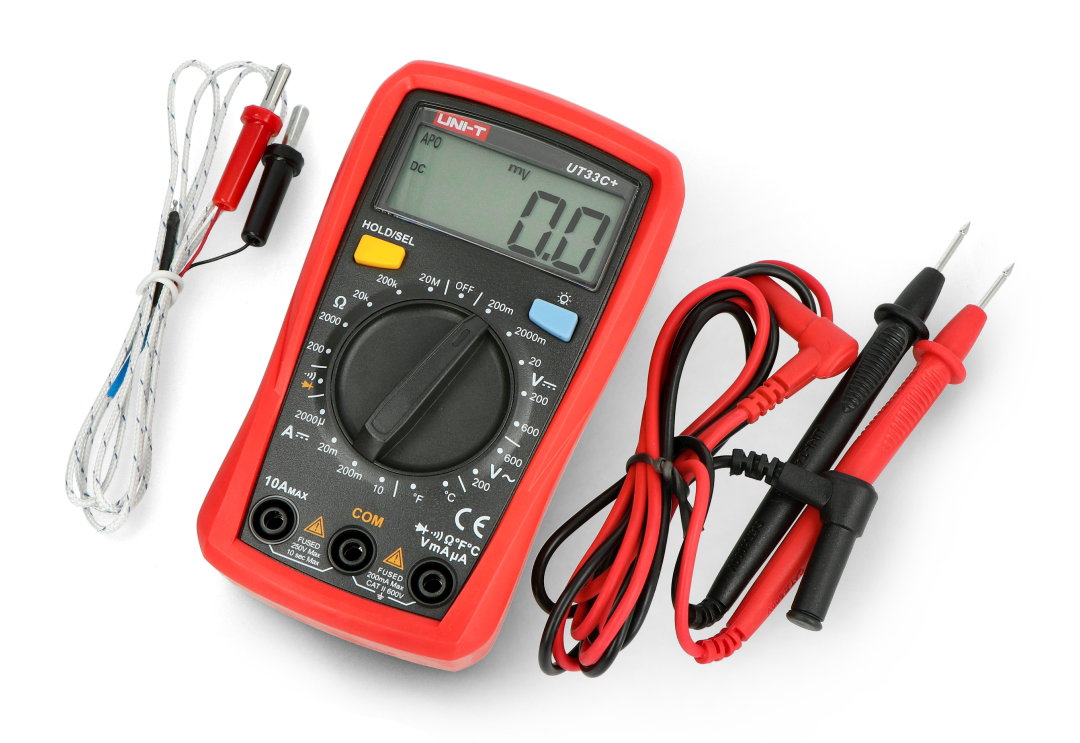

Universal meter UNI-T UT33C+.
Features of the UT33C+ meter
- Backlit LCD screen
- Relative measurement function
- Temperature measurement
- Rotary switch
- HOLD function - freezing the last measurement
- Battery level indicator
- Maximum displayed value: 1999
Meter with a handle for convenient device setting.
Specification of the UT33C+ meter
| Parameter | Scope |
|---|---|
| Manufacturer | UNI-T |
| Model | UT33C+ |
| DC voltage | 200 mV / 2000 mV / 20 V / 200 V / 600 V ±(0.7%+3) |
| AC voltage | 200 V / 600 V ±(1.2%+3) |
| DC current intensity | 2000 µA / 20 mA / 200 mA / 10 A ±(1%+2) |
| AC current intensity | No |
| Resistance | 200 Ohm / 2000 Ohm / 20 kOhm / 200 kOhm / 20 MOhm ±(1%+2) |
| Temperature |
°C from -40 -+ 1000°C ±(1%+4) °F from -40 -+ 1832 °F ±(1.5%+5) |
| Capacity |
No |
| Maximum voltage | 600 V |
| Humidity |
0 - 30°C≤75% RH 30°C-40°C≤ 50% RH |
| Socket 10 A | 10 A 250 V 5 x 20 mm fuse |
| MA/uA socket | Fuse 200 mA 250 V 5 x 20 mm |
| Maximum value | 1999, above on OL display, refresh 2-3x/min |
| Polarisation | symbol - displays during minus polarity |
| Inductivity | No |
| Operating temperature | 0°C to 40°C (for more accurate measurement, use the device at 18°C to 28°C) |
| Storage temperature | from -10°C to +50°C |
| Automatic range selection | No |
| Standby | Yes |
| Beacon | Yes |
| Transistor tester | not |
| Temperature measurement | Yes |
| Diode tester | Yes |
| Battery tester | No |
| Data Hold function | Yes |
| Relative measurement | Yes |
| Data transmission function | No |
| Battery indicator | Yes |
| Backlighting | Yes |
| Display | LCD, backlit |
| Dimensions | 134 x 77 x 47 mm |
| Power supply | 2 x1.5 V AAAbattery(LR03) |
| Mass | 205 g |
Set contents
- Universal meter UT33C+
- Test leads
- Temperature measuring probe
- 2x 1.5 V AAA battery
- Operating instructions
