Product description: Universal meter UNI-T UT33A+
Universal meterfrom UNI-T enables measurement of DC and AC voltage up to600 Vand current up to 10 A. All values are displayed on a backlit LCD screen measuring 48 x 16 mm. The display goes out automatically after 30 seconds. The meter is powered by two1.5 V AAA batteries(included). The Multimeter has a bracket at the back for convenient setting of the device and the included measuring leads. The level of battery discharge is indicated by a digital indicator. Before first use, please readthe manual.

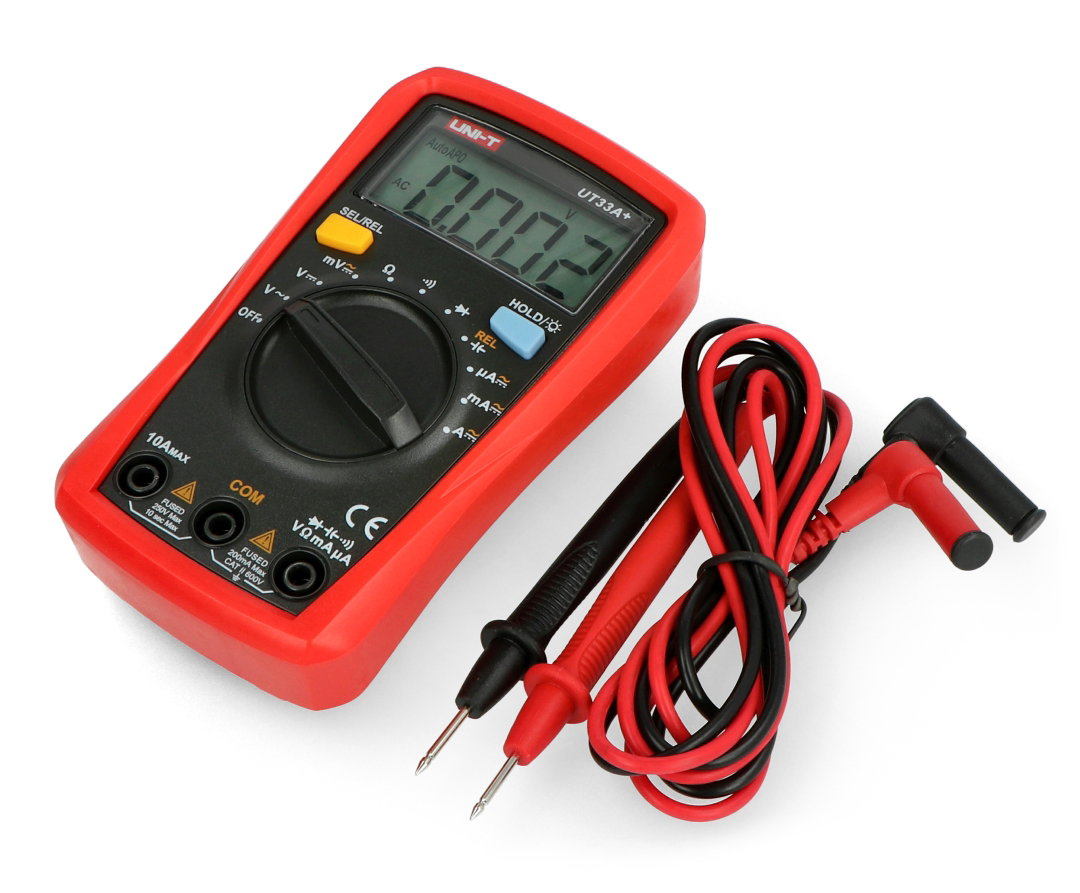

Universal meter UNI-T UT33A+.
Features of the UT33A+ meter
- Backlit LCD screen
- Automatic change of measuring ranges
- Relative measurement function (only for capacity measurement)
- Freeze last indication
- Low battery indicator
- Maximum displayed value: 2000
Specification of the UT33A+ meter
| Parameter | Scope |
|---|---|
| Manufacturer | UNI-T |
| Model | UT33A+ |
| DC voltage | 200 mV / 2000 mV / 20 V / 200 V / 600 V ±(0.5%+2) |
| AC voltage | 200 mV / 2 V/ 20 V / 200 V / 600 V ±(0.7%+3) |
| DC current intensity | 200 µA / 2000 µA / 20 mA / 200 mA / 2 A / 10 A ±(1%+2) |
| AC current intensity | 200 µA / 2000 µA / 20 mA / 200 mA / 2 A / 10 A ±(1.2%+3) |
| Resistance | 200 Ohm / 2000 Ohm / 20 kOhm / 200 kOhm / 20 MOhm / 200 MOhm ±(0.8%+2) |
| Capacity |
2 nF / 20 nF / 200 nF / 2 µF / 20 µF / 200 µF / 2 mF ±(4%+8) |
| Maximum voltage | 600 V |
| Humidity |
|
| Socket 10 A | 10 A 250 V 5 x 20 mm fuse |
| MA/uA socket | Fuse 200 mA 250 V 5 x 20 mm |
| Maximum value | 2000, above on OL display, refresh 2-3x/min |
| Polarisation | symbol - displays during minus polarity |
| DC input impedance | approximately 10 MOhm |
| Inductivity | No |
| Operating temperature | 0°C to 40°C (for more accurate measurements, use the device at 18°C to 28°C) |
| Storage temperature | from -10°C to +50°C |
| Automatic range selection | Yes |
| Standby | No |
| Beacon | No |
| Transistor tester | not |
| Diode tester | Yes |
| Battery tester | No |
| Data Hold function | Yes |
| Relative measurement | Yes |
| Data transmission function | No |
| Battery indicator | Yes |
| Backlighting | Yes |
| Display | LCD, backlit, 48 x 16 mm |
| Dimensions | 134 x 77 x 47 mm |
| Power supply | 2 x1.5 V AAA battery (LR03) |
| Mass | 205 g |
Set contents
- Universal meter UT33A+
- Test leads
- 2x 1.5 V AAA battery
- Operating instructions
