Product description: Universal meter UNI-T UT33D+
Multimeter UNI-T UT33D+ allows to defineDC and ACparametersandto performNCV measurement (electric field detection). Thanks to this function, we can check, among other things, the voltage running in the cables under the plaster without major problems. After the measurement is completed the results are displayed on a48 x 16 mmLCD screen. The device has aholdfunction, thanks to which the last measurement is frozen. The meter is powered bytwo 1.5 V AAA batteriesincluded in the set. The digital indicator shows the battery level and the mounted bracket makes it easier for the user to use the device. Please readthe manualbefore first use.

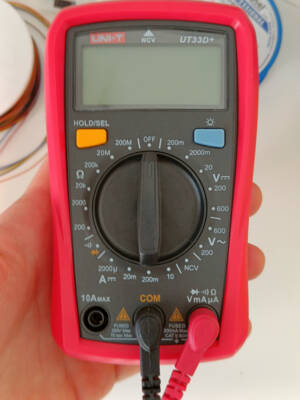

Universal meter UNI-T UT33D+.
Features of the UT33D+ meter
- Backlit LCD screen
- Relative measurement function
- NCV function
- Rotary switch
- HOLD function - saving the last measurement
- Battery level indicator
- Maximum displayed value: 2000

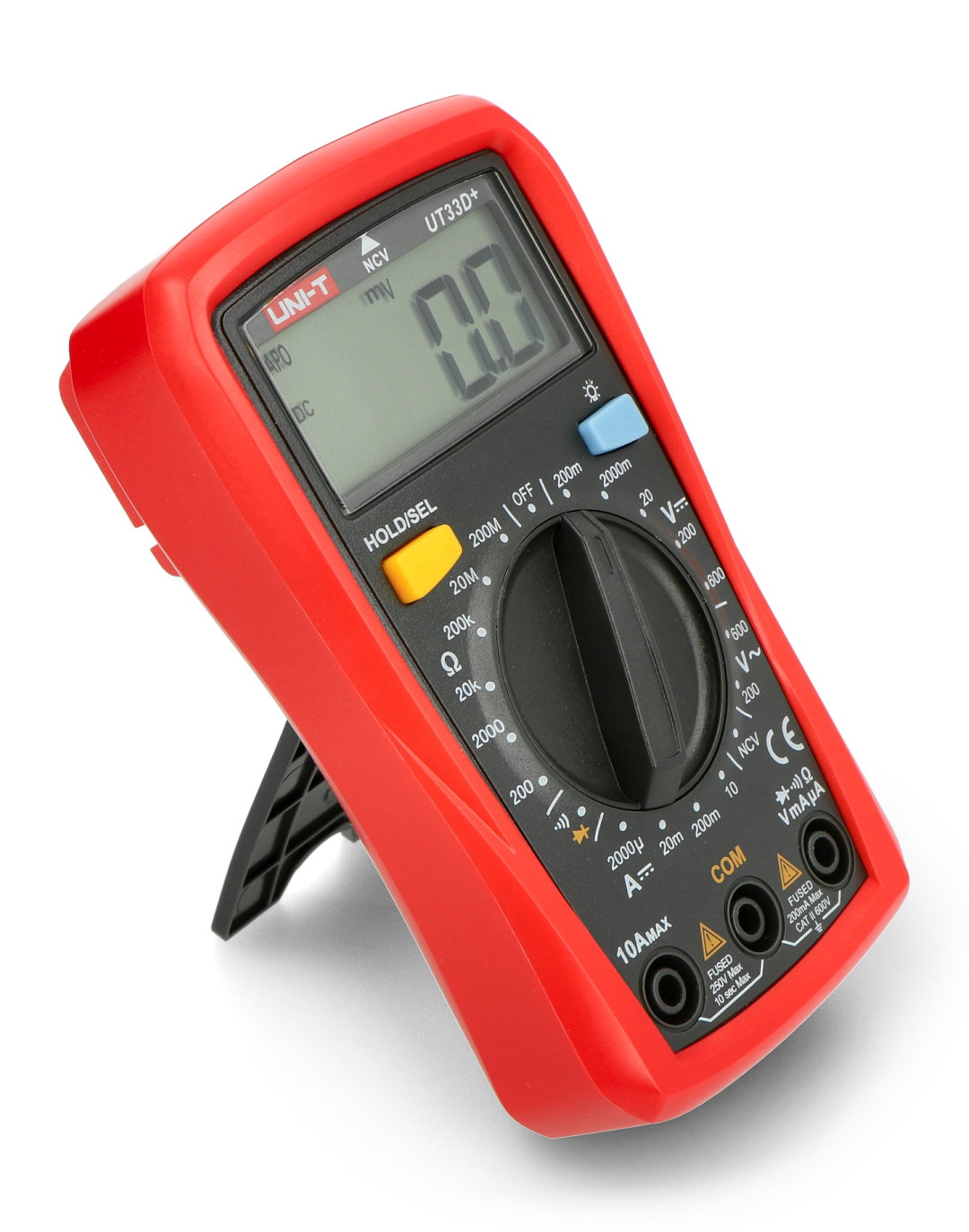

Meter with a handle for comfortable positioning.
Specification of the meter UT33D+
| Parameter | Scope |
|---|---|
| Manufacturer | UNI-T |
| Model | UT33D+ |
| DC voltage | 200 mV / 2000 mV / 20 V / 200 V / 600 V ±(0.7%+3) |
| AC voltage | 200 V / 600 V ±(1.2%+3) |
| DC current intensity | 2000 µA / 20 mA / 200 mA / 10 A ±(1%+2) |
| AC current intensity | No |
| Resistance | 200 Ohm / 2000 Ohm / 20 kOhm / 200 kOhm / 20 MOhm ±(1%+2) |
| NCV measurement |
0-50 mV / 50-100 mV / 100-150 mV / 150-200 mV / >200 mV |
| Capacity |
No |
| Maximum voltage | 600 V |
| Humidity |
0 - 30°C ≤ 75% RH 30°C - 40°C ≤ 50% RH |
| Socket 10 A | 10 A 250 V 5 x 20 mm fuse |
| MA/uA socket | Fuse 200 mA 250 V 5 x 20 mm |
| Maximum value | 1999, above on OL display, refresh 2-3x/min |
| Polarisation | symbol - displays during minus polarity |
| Inductivity | No |
| Operating temperature | 0°C to 40°C (for more accurate measurement, use the device at 18°C to 28°C) |
| Storage temperature | from -10°C to +50°C |
| Automatic range selection | No |
| Standby | Yes |
| Beacon | Yes |
| Transistor tester | not |
| NCV measurement | Yes |
| Diode tester | Yes |
| Battery tester | No |
| Data Hold function | Yes |
| Relative measurement | Yes |
| Data transmission function | No |
| Battery indicator | Yes |
| Backlighting | Yes |
| Display | LCD, backlit |
| Dimensions | 134 x 77 x 47 mm |
| Power supply | 2 x1.5 V AAAbattery(LR03) |
| Mass | 205 g |

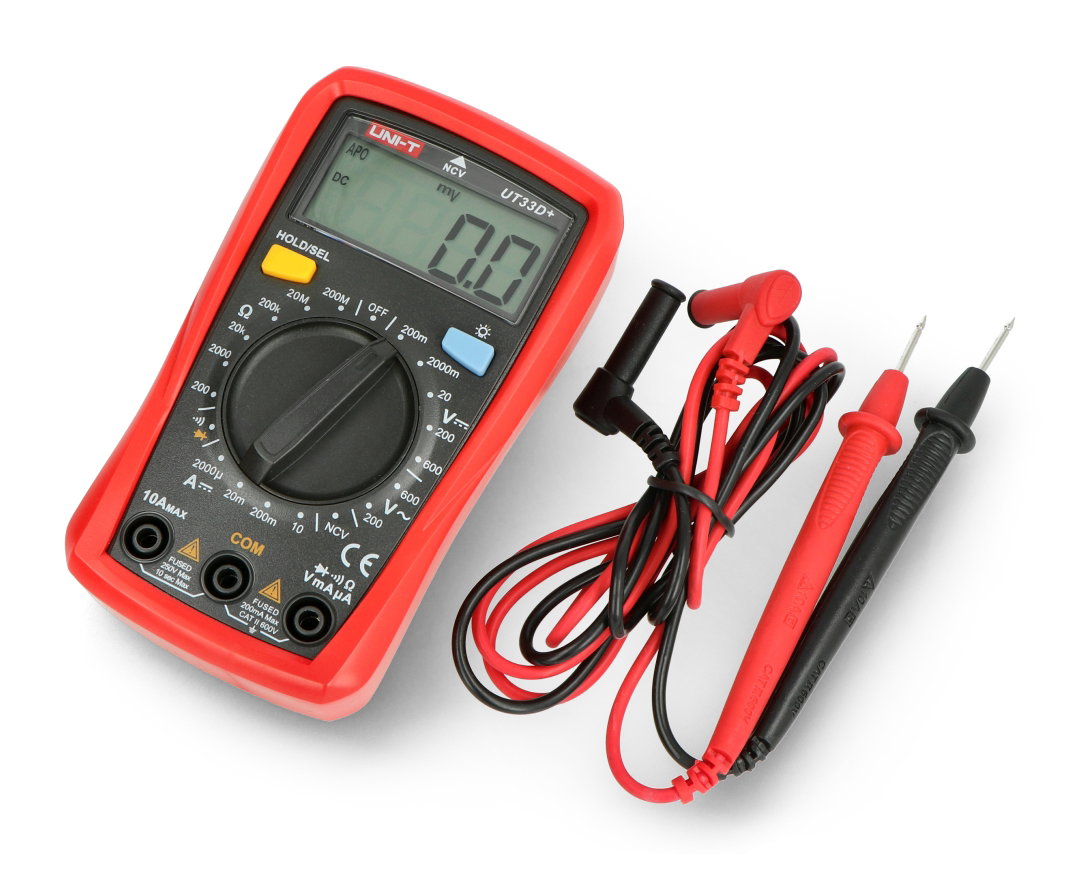

Set contents
- Universal meter UT33D+
- Test leads
- 2x 1.5 V AAA battery
- Operating instructions
