Description

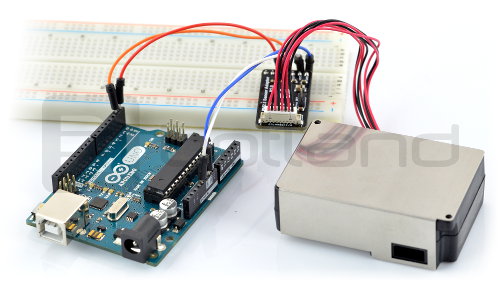

The sensor measures the coefficient of PM2.5, that is, the number of so-called dust suspended in the air. They are contaminants which are harmful to the environment and human health. The device is powered with 5V, the data passes through the communication, serial interface UART (RX,TX). The kit includes: sensor, wire and plate for connecting the signals to any microcontroller, e.g.an Arduino.
|
The product is compatible with Arduino The manufacturer provides auser manualandlibrary for Arduino. |
Specification
- Supply voltage: from 4,95 V to 5.05 V
- Current consumption: 120 mA
- Current consumption in sleep mode: 200 µa
- Measuring range: from 0 to 500 µg/m3
- Communication: UART - RX and TX
- The diameter of the PM:
- from 0.3 µm to 1.0 µm
- from 1.0 µm to 2.5 µm
- from 2.5 µm to 10 µm
- Response time: less than 10 seconds.
- Operating temperature: -20 °C to +50 °C
- Humidity tolerance: 0 to 99% RH
- The size of the sensor: 65 x 42 x 23 mm
