Description: Ultrasonic distance sensor A01NYUB 28-750cm - waterproof - DFRobot SEN0313.
An ultrasonic sensor that measures by calculating the time between sending and receiving a pulse.A01NYUBis a high quality water and dust resistant sensor. The sensor can measure distancesfrom 28 cm to 750 cm. It communicates through theUARTinterface and its supply voltage isbetween 3.3 V and 5 V. The module is enclosed in a sealed enclosure withIP67class.

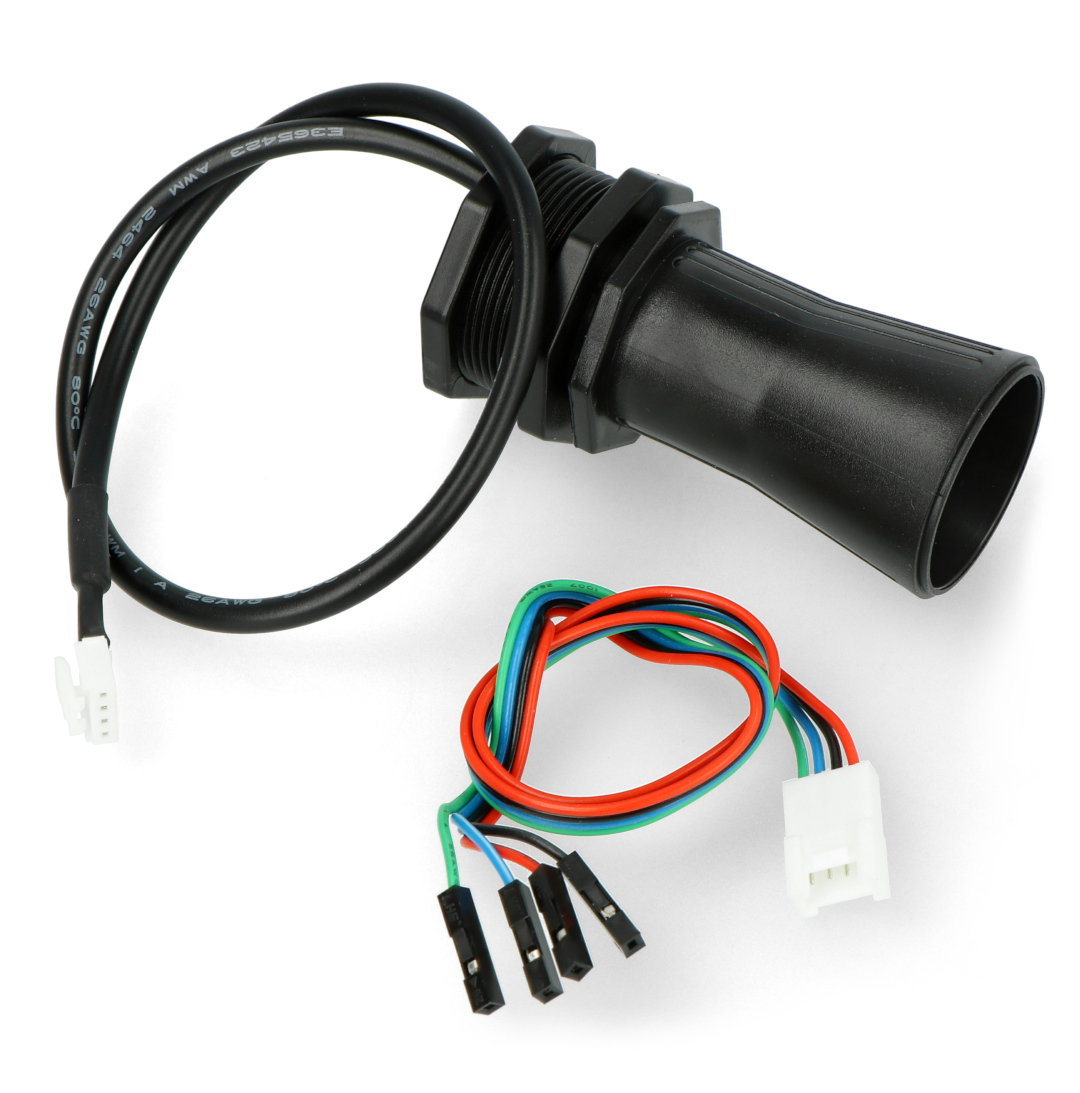

Ultrasonic distance sensor A01NYUB - cable adapter for BLC female connectors included.
The sensor is encapsulated in a sealed IP67 enclosure that effectively protects it from water and dust so that it can be used for distance measurements in difficult conditions.
|
Product compatible with Arduinoand RaspberryPi The manufacturer has prepared auser guidewith sample programs for Arduino and Raspberry Pi. |
Connection of sensor A01NYUB
The chip communicates through a UART interface with a bandwidth of 9600 b/s, so it is compatible with most of the startup sets, including Arduino andRaspberryPi.
Example of sensor connection with Arduino.
Sensor specification A01NYUB
- Operating voltages: 3.3 V to 5 V
- Average power consumption: 15 mA
- Dead zone: 28 cm
- Measurement range: from 28 cm to 750 cm
- Communication: UART
- Response time: 100 ms
- Probe centre frequency: 40 kHz ± 1 kHz
- Operating temperature: -15°C to 60°C
- Storage temperature: from -25°C to 80°C
- Measuring angle: 55°
- Measuring angle without handle: 40°
- Leakage class: IP67
Sensor dimensions.
