Set of 5mm LEDs 10pcs with resistors

Index: LED-04663 EAN: 5904422309718

Set of ten 5 mm LEDS with resistors. The kit includes: 10 PCs resistors 1.2  and 3 PCs green, red and yellow LEDs and 1 blue LED.

Set of 5mm LEDs 10pcs with resistors
€1.50
€1.22 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: OEM

Description

Set of 10 LEDs in the threaded housing 5 mm. In the package there are:

  • 3 LEDs red
  • 3 LEDs yellow
  • 3 LEDs green
  • 1 LED blue
  • 10 resistors 1.2

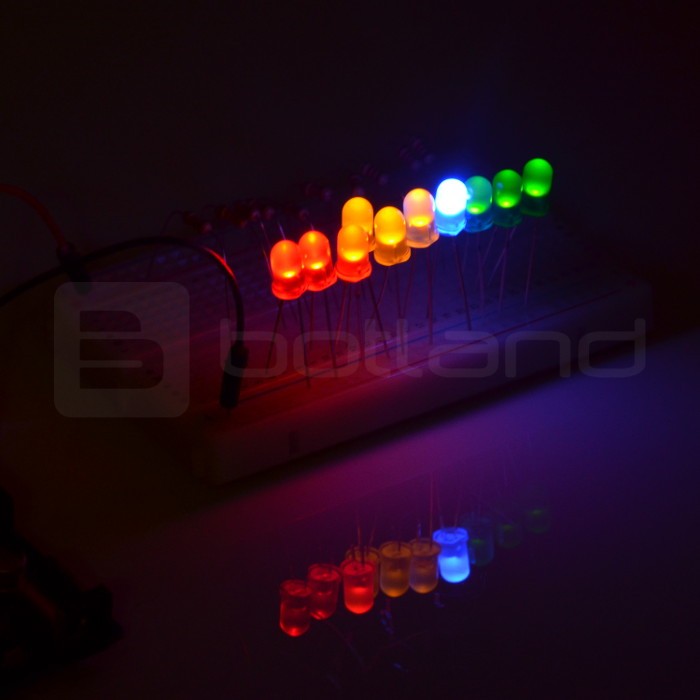

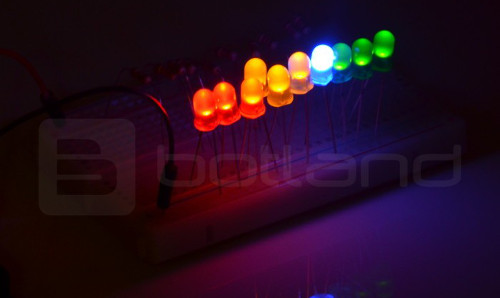

Diody LED płytka stykowa



The LEDs are connected on the PCB pin.

Check out how to choose the right resistor for the LEDs!

Parameters diode yellow:

  • Lens yellow
  • Case: DIP 5 mm
  • The length of the interaction wavelength: 589 nm
  • Brightness: 40 MCD
  • Beam angle: 60 °
  • Temp. operating: -40 °C to +80 °C
  • Operating parameters:
    • Current If: 25 mA
    • Voltage Vf: 2.0 V



Options LEDs green:

  • Lens green
  • Case: DIP 5 mm
  • The length of the interaction wavelength: 571 nm
  • Brightness: 100 - 150 mcd
  • Light beam angle: 50°
  • Temp. operating:-40 °C to +80 °C
  • Operating parameters:
    • Current If: 20mA
    • Voltage Vf: 2.3 - 2.5 V



Parameters led:

  • Lens red
  • Case: DIP 5 mm
  • The length of the interacting waves: 625-645 nm
  • Brightness: 450 - 800 MCD
  • Angle of radiation : 70 °
  • Temp. operating: -40 °C to +80 °C
  • Operating parameters:
    • Current If: 20mA
    • Voltage Vf: 2.0 - 2.3 V



The parameters of the LEDs blue

  • Lens in blue color
  • Case: DIP 5 mm
  • The length of the interaction wavelength: 470 nm
  • Brightness: 1000 mcd
  • Light beam angle: 30 °
  • Operating parameters:
    • Current If: 25 mA
    • Voltage Vf: 3.2 V



The parameters of the resistor

  • Resistance: 1.2 kω
  • Rated power: 1/4 W
  • Tolerance: 5 %
  • Mounting: threaded TNT





Nominal power 0.05
LED - color set
LED - type set
LED lens mat
LED wavelength set
Test 3
Package width 5 cm
Package height 0.5 cm
Package depth 6.5 cm
Package weight 0.001 kg
