Specification
- Power Supply: 5 V
- Current consumption: 150 mA
- Measuring range up to 10,000 ppm
- Operating temperature: -20 to 50 °C
- Analog and digital output
- Resistor which pulls the sensor's output to ground with a value of 1 kΩ
- Pins: goldpin connectors, 2.54 mm pitch
- Board sizes: 36 x 20 x 23 mm
- It has mounting holes with diameter: 3.2 mm
Specifications and other detailed information can be found in thedocumentation.
Description

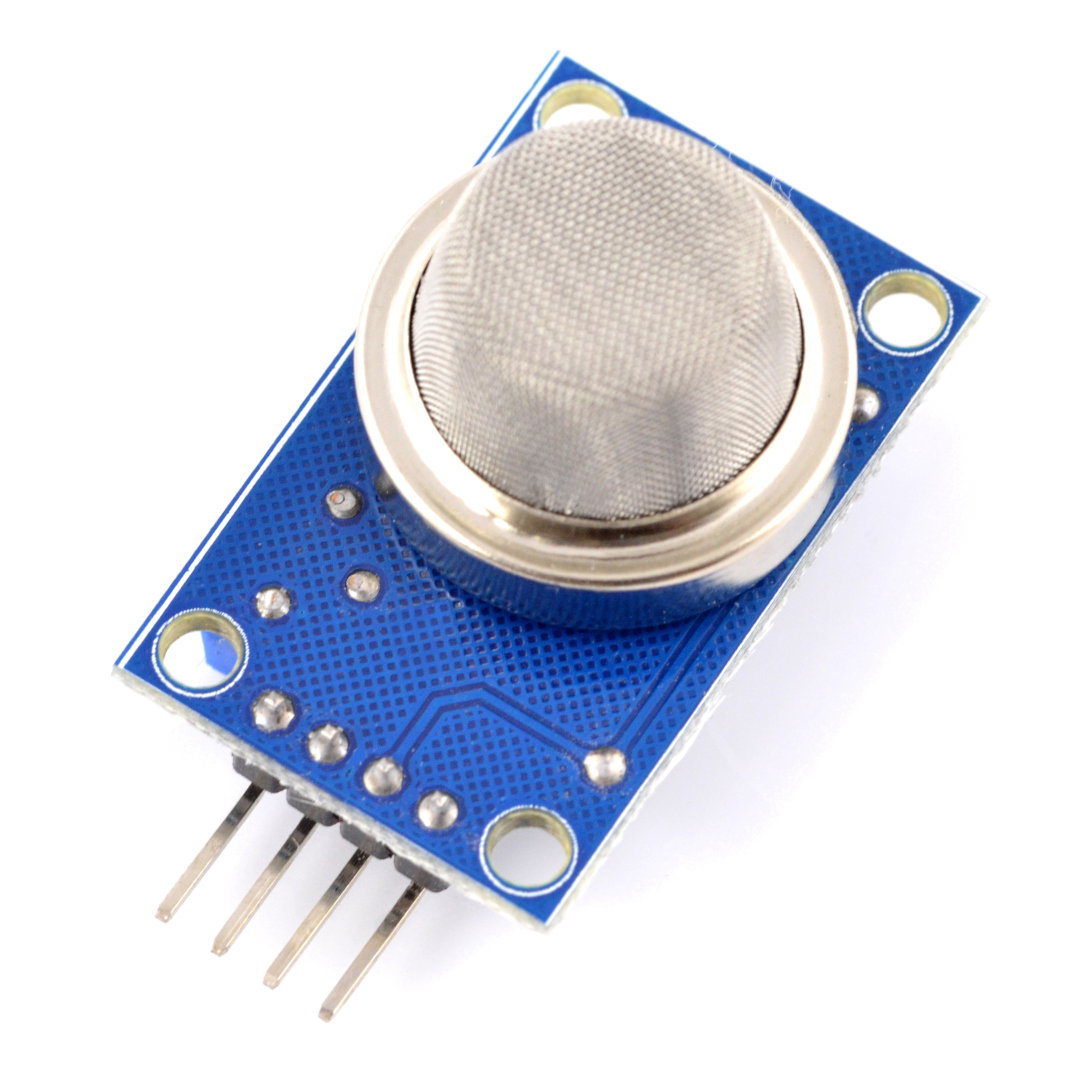

The sensor measures the concentration of flammable gases in the air, the result can be obtained measuring the voltage on the analog output. The system is powered with the voltage of 5 V. The current consumption is about 150 mA. It has digital and analog output, making it compatible with mostof the commissioning modules including Raspberry PiandArduino.
The digital output D0

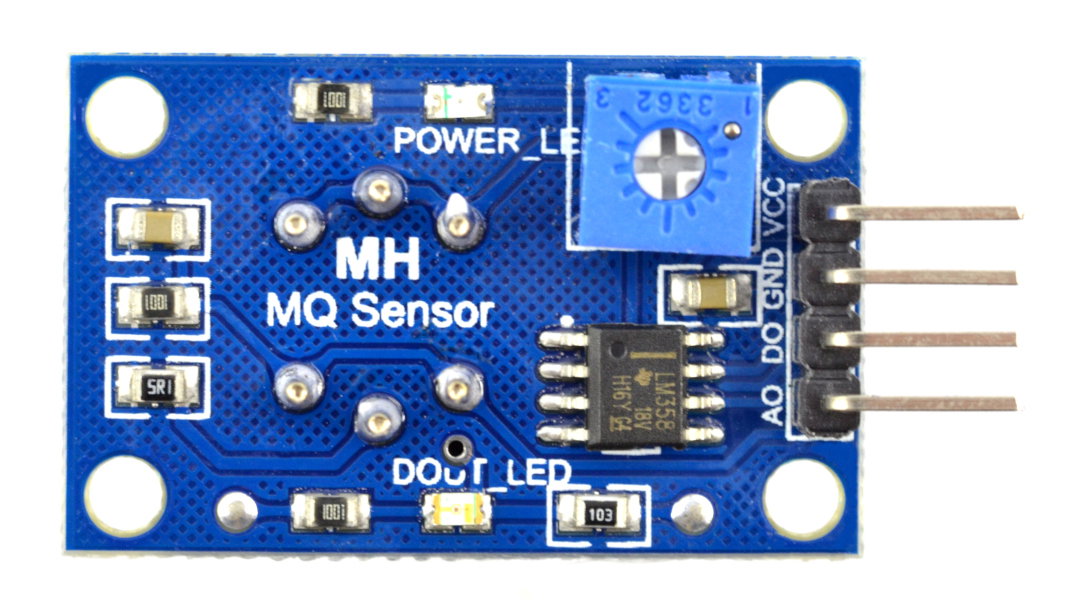

With the help of placed on the reverse side of the board, potentiometer, set is the threshold, exceeding of which, causes the output D0 changing from a high to a low status. The pin D0 can be linked directly with a microcontroller or commissioning set, including Arduino, or for example, a module with a buzzer, which will signal a too low or too high level of unwanted gases in the air.
Analog output A0
The sensor has an analog output A0, which must be connected to the pin of the converter A/D (analog input in Arduino). This will allow you to measure the proportional voltage signal and more accurately determine the concentration.
