Temperature, humidity, pressure and gas sensor - BME688 - SPI/I2C - STEMMA QT/Qwiic - Adafruit 5046
Multifunctional sensor that combines sensors for temperature, humidity, pressure and VOC gas. It has an embedded Bosch BME688 chip. Manufactured by Adafruit, it uses SPI and I2C buses to communicate with the main module. It works with controllers such as Arduino and Raspberry Pi.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Temperature, humidity, pressure and gas sensor - BME688 - SPI / I2C - STEMMA QT / Qwiic - Adafruit 5046
Multifunctional sensorcombining sensors fortemperature,humidity, pressure and VOC gas measurement. It has an integratedBME688chip from Bosch. Manufactured by Adafruit, it uses SPI and I2C buses to communicate with the main module. It works with controllers such as Arduino and Raspberry Pi.
TheBME688sensor has a smallMOXsensor built in. The heated metal oxide changes resistance based on volatile organic compounds (VOCs) that are in the air, so it can detect gases and alcohols such as ethanol, alcohol, and carbon monoxide. It can also be used to perform air purity measurements.
Contents of the kit
- Temperature, humidity, pressure and gas sensor - BME688
- Goldpin 1x8 strip - 2,54 mm pitch

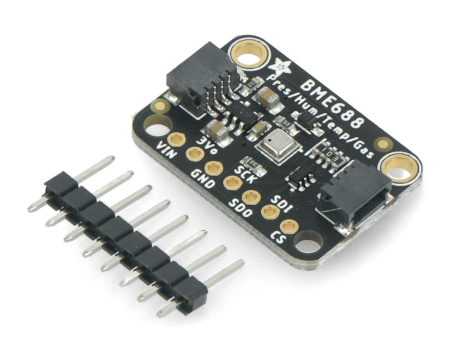

Temperature, humidity, pressure and gas sensor from Adafruit.
Botland is an official distributor of Adafruit electronics. These dependable American solutions cover sensors, controllers, Arduino shields, educational systems, smart building and a wide range of accessories. The Botland range holds original Adafruit products only.
Product is compatible with Arduino and Raspberry Pi!
A detaileduser guideis available on the manufacturer's website, which makes getting started with the sensor much easier. It includes description of leads, connection diagrams, libraries for particular programming environments and sample program codes.

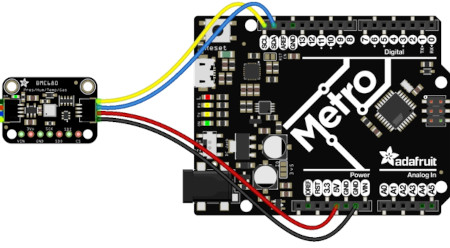

Connection diagram of sensor with Metro board - equivalent of Arduino. Metro board is not a part of kit, you can buy it separately in our shop.
Sensor pinout description from Adafruit
Multifunction sensor module has solderingfields, to which you should solder includedgoldpinstrip (pinout is 2,54 mm). On the board there are alsoSTEMMA QT / Qwiicconnectors which are more convenient alternative to connect the sensor with the controller. You should connect the leads according to the relation below:
- VIN - power supply pin from 3V to 5.5V
- 3Vo - power supply pin 3.3 V
- GND - system ground
- SCK / SDO / SDI - logic pins of SPI / I2C communication interface
- SCK - communication interface clock line
- SDI - communication interface data line
- CS - Chip Select pin
Technical specification of the sensor
- Type: temperature, humidity, pressure and gas sensor
- Built-in circuit: Bosch BME688
- Temperature measurement range:from -40°C to 85°C
- Temperature measurement accuracy: ± 1°C
- Humidity measuring range: from 10% to 90% RH
- Accuracy of humidity measurement: ± 3%
- Pressure measuring range: from 300 hPa to 1100 hPa
- Accuracy of pressure measurement: ± 1 hPa
- VOC gas measuring range: 0 to 500 IAQ
- Communication interface: I2C bus
- I2C interface address: 0x77
- Supply voltage: 3 V to 5 V
- Connectors: STEMMA QT / Qwiic / solder fields - 2,54 mm pitch
- Mounting holes - 4 pcs.
- Board dimensions: 25,5 x 17,6 x 4,6 mm
- Weight: 1,7 g.

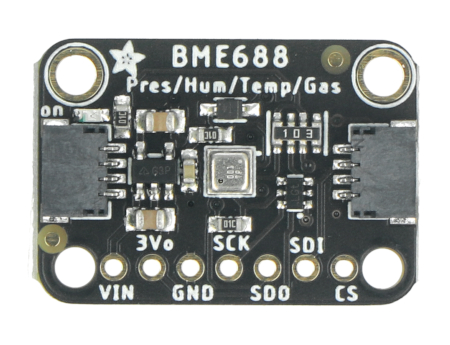

Sensor from Adafruit equipped with BME688 chip.
In our offer you will also find othermultifunctional environmental sensors. We invite you to familiarize with available assortment.
Useful links
| Name | Value |
|---|---|
| Sensor - type | temperature, humidity, pressure |
| Width | 14 cm |
| Height | 0.5 cm |
| Depth | 10 cm |
| Weight | 0.006 kg |
