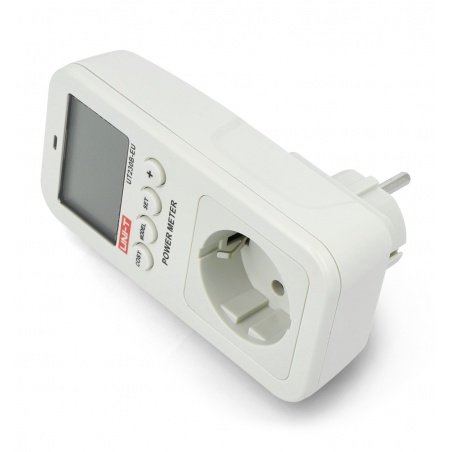

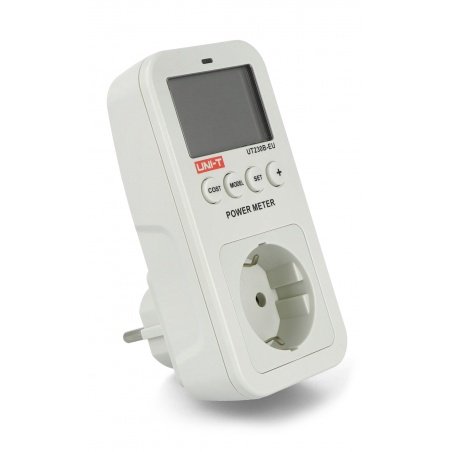

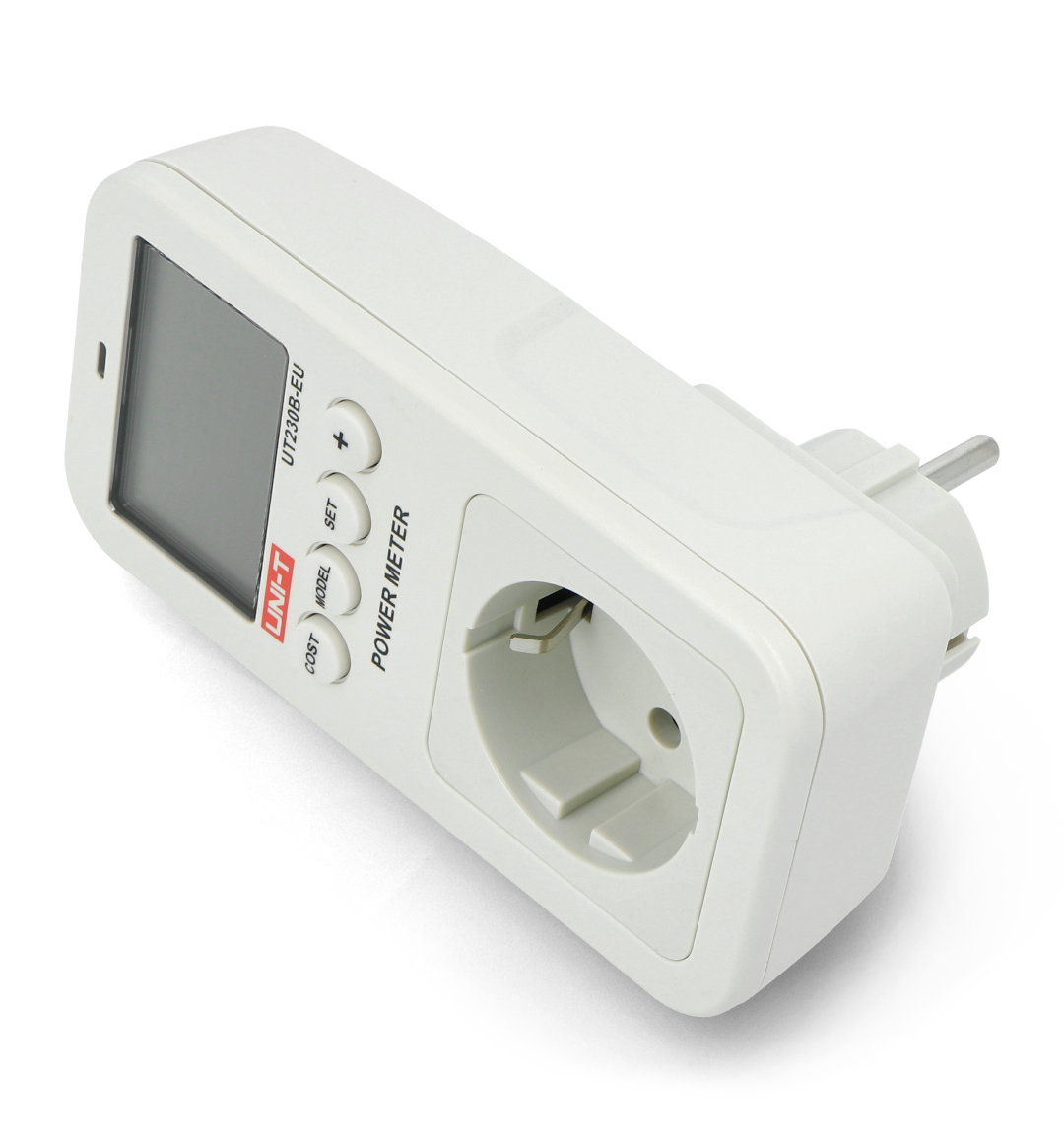

Product description: Uni-T UT230B-EU Energy Meter
Meter, with which you can easily checkthe amount of energyconsumed by all devices used in the household, office or other place of work. The device can operate with voltages from100to260 V. The maximum current capacity of theUT230B-EUis16 A. Using the meter, it is possible to measure voltage and current, power and power factor, determine the amount and estimated cost of energy used, as well as theCO2emissions generated by it. The meter is also equipped with an overload warning function. If17.6 Ais exceeded for approximately 10 seconds, the power indicator will flash and the display will show"OL"andan exclamation mark icon. In this situation the device should be disconnected from the socket.

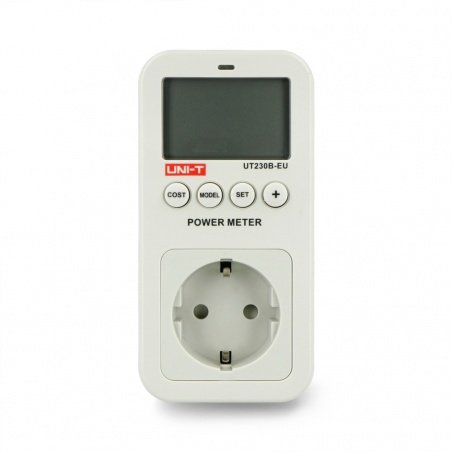

The meter is very simple to use. To configure it, use the buttons on the front of the device.

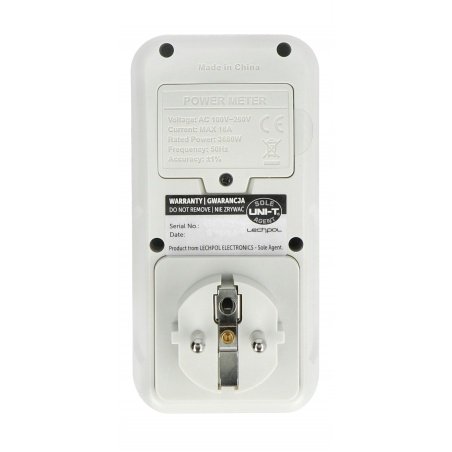

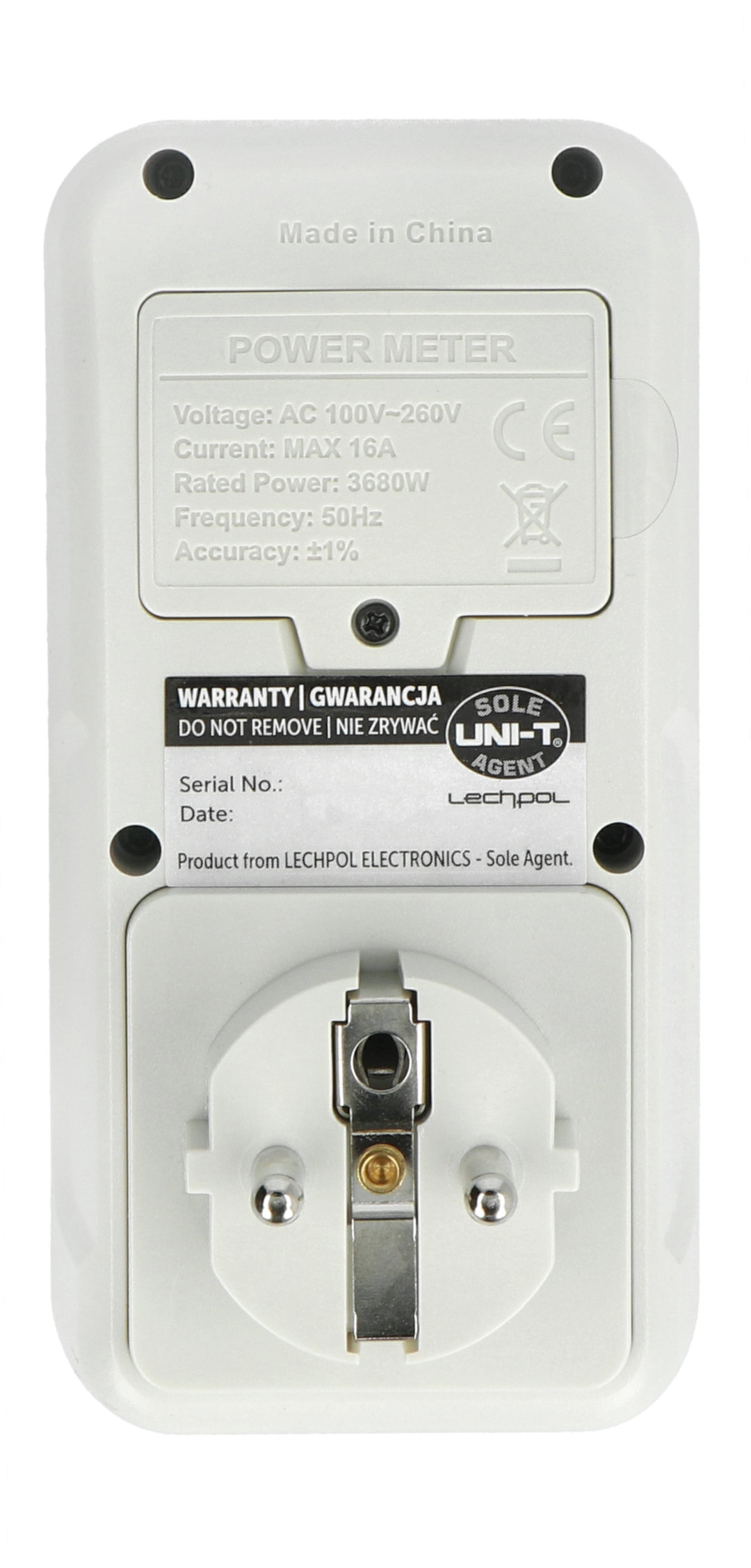

The battery should be placed in the back of the device, under the flap visible on the picture.
Technical specifications
- Rated voltage: from 100 V to 230 V AC / from 45 Hz to 65 Hz
- Additional power supply: 3 V battery(CR2032)
- Maximum load: 16 A (3680 W)
- Minimum consumption: 0.4 W
- Energy: 0 to 9999 kWh
- Energy consumption accuracy: +/- 1%
- Minimum displayed energy consumption: 0.01 kWh
- Measurement time: 0 min to 9999 days
- CO2Emissions: 0 to 9999 kg
- Energy measurement range: 0 kWh to 9999.99 kWh
- Cost range: 0 to 9999
- Power consumption: less than 0.5 W
- Display dimensions: 48 x 30.5 mm
- Dimensions: 130 x 65 x 37 mm
- Weight: 155 g
