Product description: Single-phase energy consumption meter 230 V for DIN rail - Qoltec 50888
The Qoltec single-phase energy meter is a functional solution for those who want to consciously control their electricity consumption . It operates in standard 230 V installations in a single-phase, two-wire system and can handle currents from 5 A to 60 A. It enables accurate energy measurement thanks to electronic technology and a pulse constant of 1600 pulses/kWh . The LCD display shows current energy consumption in kWh , while the LED indicates current consumption by flashing proportionally to consumption. The compact design ensures quick and convenient installation in electrical switchboards. The meter complies with the IEC 62053-21 and DIN EN50022 standards, ensuring its reliability and safety of use.

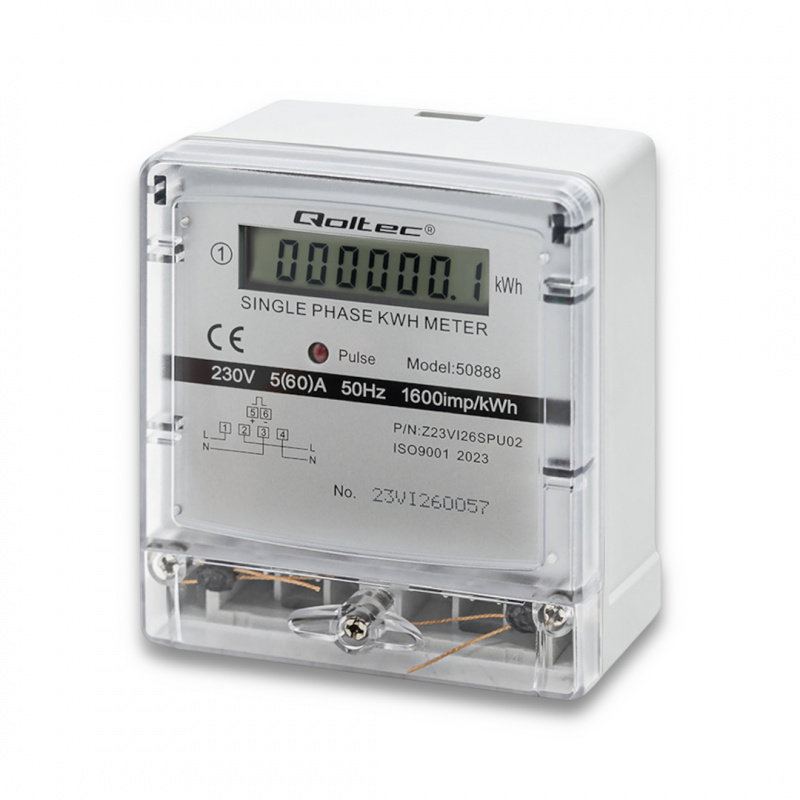

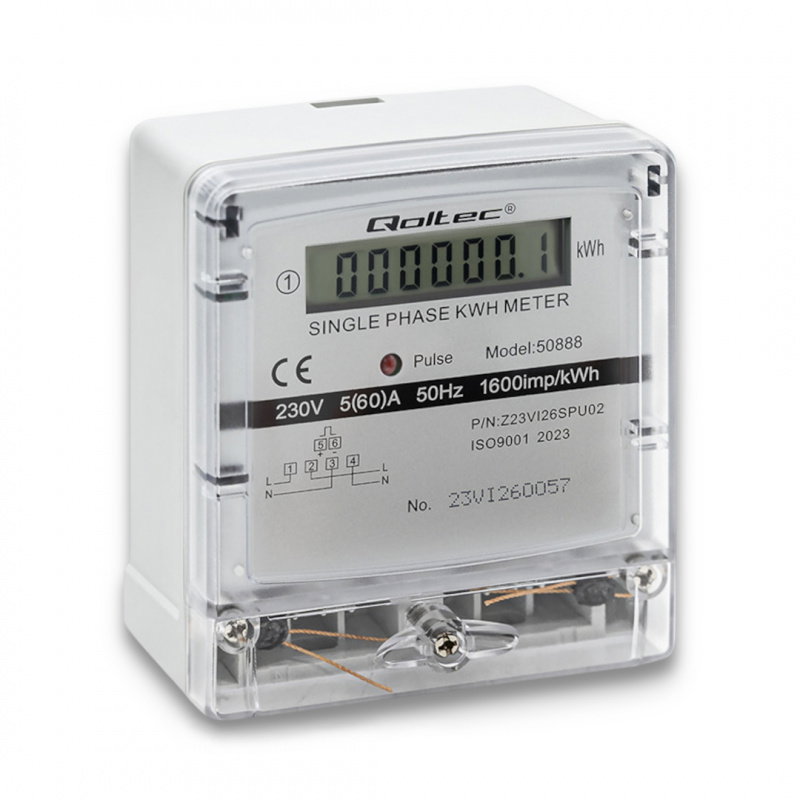

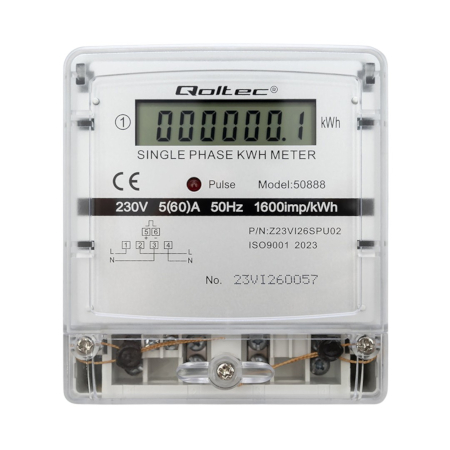

Single-phase 230 V energy consumption meter for DIN rail - Qoltec 50888.

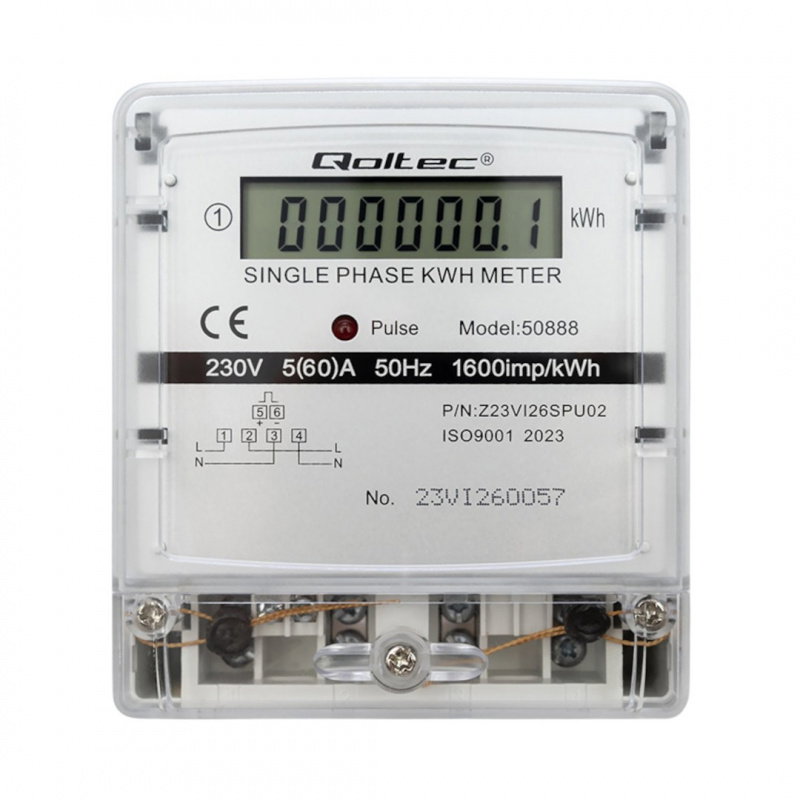

The LCD display shows the value of the consumed energy converted from the number of pulses.
Main features of the energy consumption meter
- Single-phase energy meter : designed for 230 V AC, 50/60 Hz installations
- LCD display : easy-to-read 6 + 1 screen showing energy consumption in kWh
- LED indicator : energy consumption signaling through light pulses
- High accuracy : accuracy class 1.0 ensures reliable measurements
- Direct measurement : supports current from 5 A to 60 A
- Pulse constant : 1600 imp/kWh for precise energy calculation
- Compact design : small dimensions facilitate installation in distribution boards
- Compliance with standards : IEC 62053-21, DIN EN50022
- Possibility of sealing : protection against interference and manipulation of measurements
Effective protection against measurement falsification
The housing design allows for the installation of a security seal to fully protect the electricity meter against unauthorized access, including energy theft and the possibility of meter falsification . This feature allows for quick verification of any irregularities by an authorized installer. This is particularly important in multi-family buildings, subleased premises, and manufacturing plants , where measurement accuracy is crucial for financial settlements.
The Qoltec electricity consumption meter can be used in home installations and any other facility.

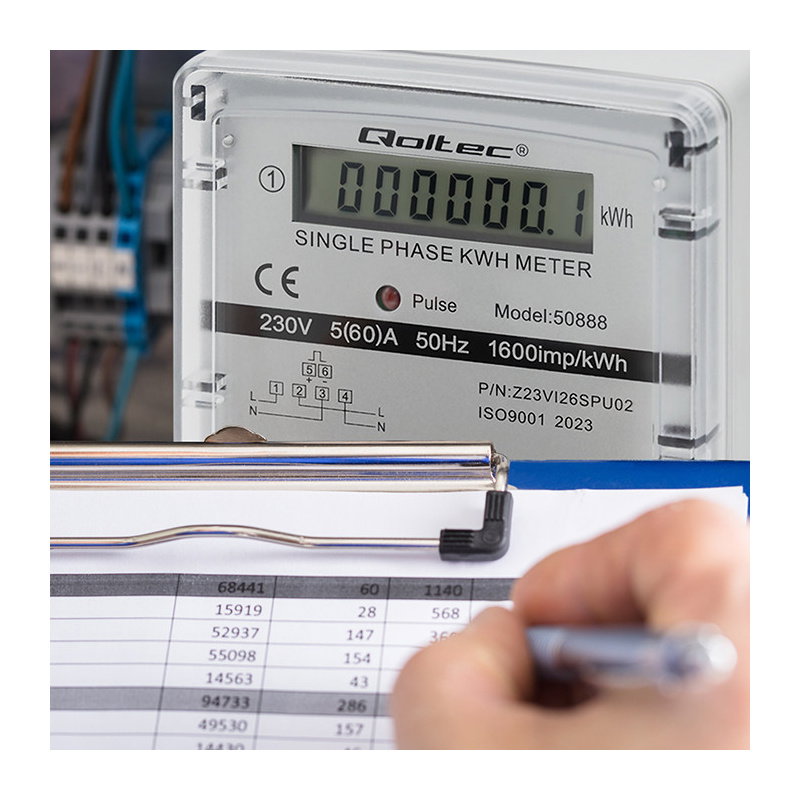

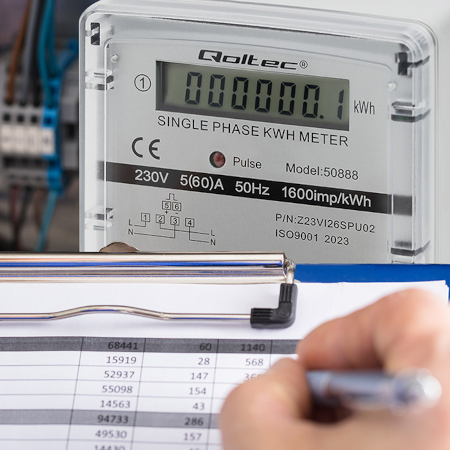

The meter allows you to constantly monitor your energy consumption.Technical specifications of the Qoltec electricity consumption meter
- Type: single-phase, two-wire
- Rated voltage: 230V AC (supports 220V to 240V range)
- Frequency: 50 Hz to 60 Hz
- Rated current: 5(60) A
- Base current: 5 A
- Maximum current: 60 A
- Inrush current: 0.4% Ib
- Accuracy class: 1.0
- Pulse constant: 1600 imp/kWh
- Display: LCD (6 + 1)
- Operating temperature: -25°C to 70°C

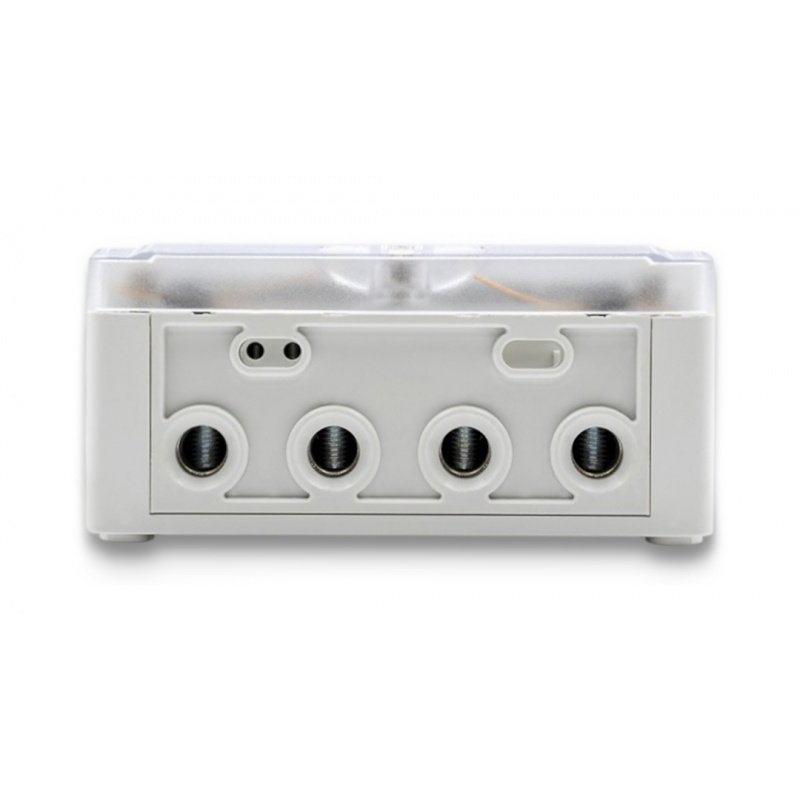

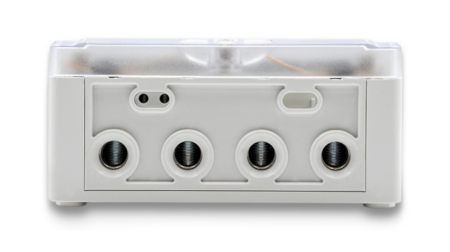

- Connection point: bottom of the device
- Dimensions: 46 x 100 x 114 mm
- Weight: 0.259 kg
Contents of the set
- Qoltec 50888 energy consumption meter
- manufacturer's documentation
