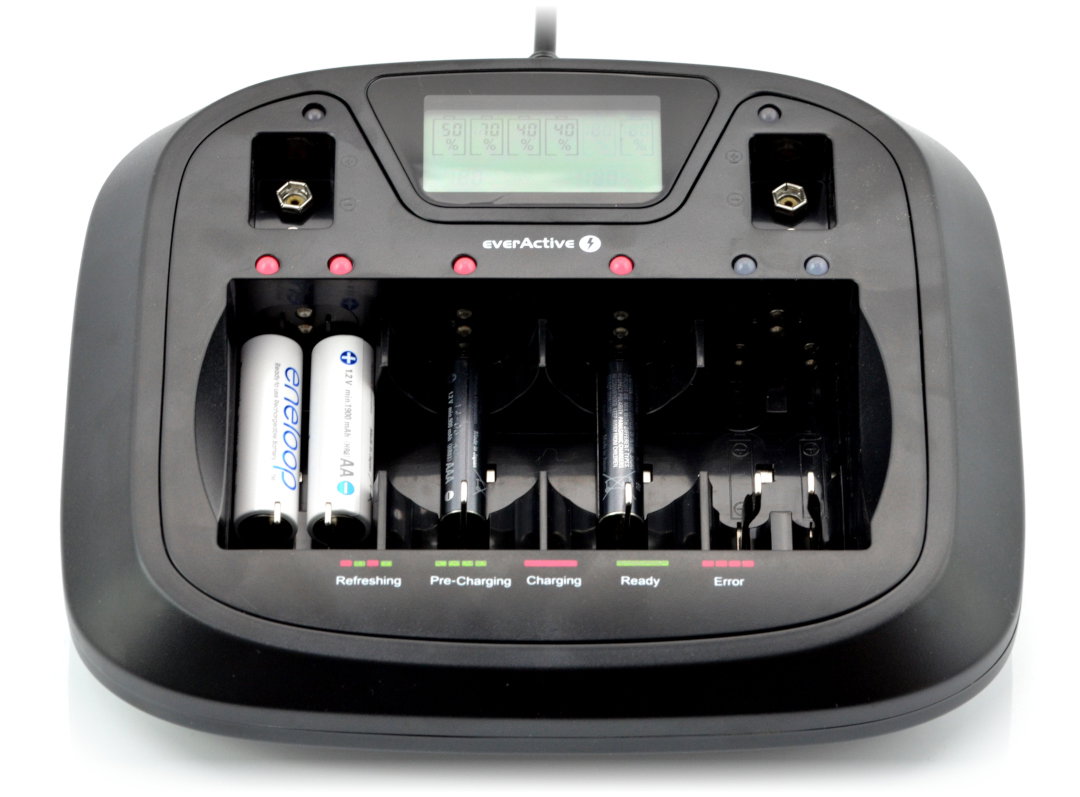

Product description:BatterychargereverActive NC-900U AA, AAA, R14, R20, HR22
Fast, universal charger with everActiveNC-900ULCD display withUSBport. It has 8 independent charging channels with refresh and discharge function. The device supports the following battery types in configurations:
- 4 x R6 AA / R03 AAA + 2 x R14 C / R20 D + 2 x HR22 9 V
- 3 x R6 AA + 3x R03 AAA + 2 x HR22 9 V
- 6 x R6 AA / R03 AAA + 2 x HR22 9 V
- 1 x R6 AA + 1x R03 AAA + 3 x R14 C / R20 D + 2 x HR22 9 V
- USB output enables charging of mobile devices
The charger has an algorithm that tests the batteries before they start charging - it decides whether to use the refresh or precharge mode.
Charging can take place in 4 stages:
- Discharging in order to remove the effect of the so-called lazy battery, which minimizes the memory effect.
- Pre-charging - pulse charging, low intensity charging for cells with high internal resistance.
- Basic charging - with rated current.
- Back-up charge - the batteries remain fully charged and can be removed from the charger at any time.
Specification
- Power supply: 100 V - 240 V AC / 50 Hz - mains
- Charger designed to chargeNiMH, Eneloop, Ni-Cdbatteries
- USB output: 5 V DC, max. 500 mA

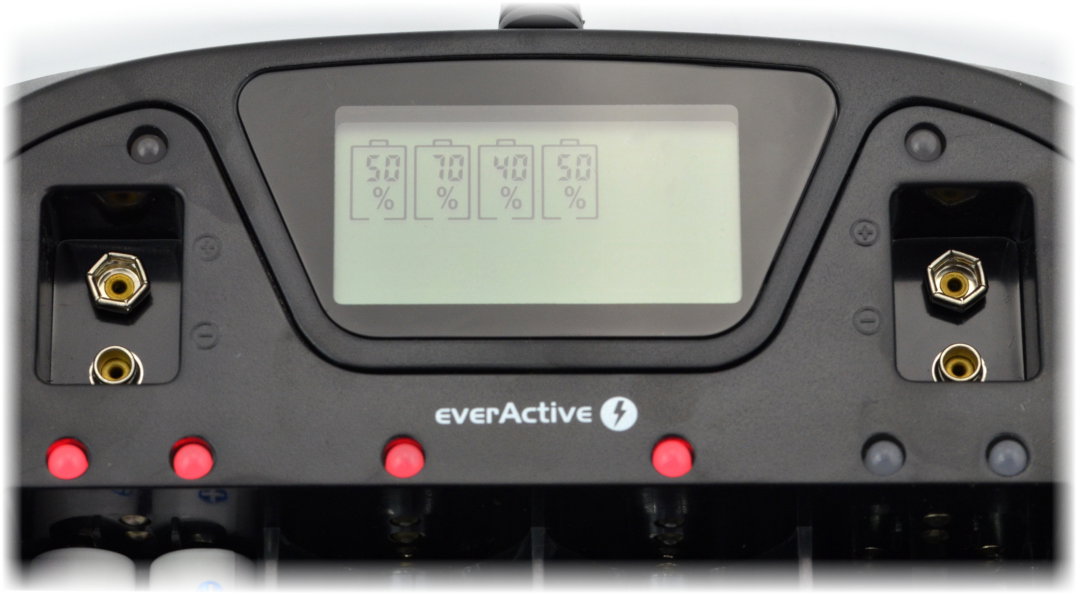

- Multi-segment, large LCD display with percentage indication, and 8 two-colour LEDs
- Automatic diagnostics, battery discharge/refreshing, % battery charge indicator for all slots
- Precharge currents
- AA/C/D - 6 x 500 mA
- AAA - 6 x 300 mA
- 6F22 - 2 x 30 mA
- Auxiliary charging currents
- AA/C/D - 6x 1000 mA
- AAA - 6x 500 mA
- 6F22 - 2x 60 mA
- Unloading currents
- AA/C/D - 6x 120 mA
- AAA - 6x 80 mA
- 6F22 - 2x 30 mA
- Supporting charge
- AA/C/D - 6x 40 mA
- AAA - 6x 20 mA
- 6F22 - 2x 3 mA
- Dimensions of the device: 210 x 175 x 48 mm
Examples of battery charging times:
- R03 AAA 600 mAh - 1 h 30 min
- R03 AAA 800 mAh - 2 h
- R03 AAA 1000 mAh - 2 h 30 min
- R6 AA 1500 mAh - 2 h
- R6 AA 2000 mAh - 2 h 30 min
- R6 AA 2500 mAh - 3h 15 min
- R6 AA 2700 mAh - 3 h 30 min
- R14 C 3000 mAh - 4 h
- R14 C 4500 mAh - 5 h 50 min
- R20 D 3000 mAh - 4 h
- R20 D 6000 mAh - 7 h 45 min
- R20 D 10000 mAh - 13 h
- 9V 6F22 150 mAh - 3 h
- 9V 6F22 200 mAh - 4 h
- 9V 6F22 250 mAh - 5 h
