3V WY-ELI-ITB2-0-50CM pocket-sized step-up converter for EL - CR2032 cables
 - zdjęcie 1
 - zdjęcie 2
3V WY-ELI-ITB2-0-50CM pocket-sized step-up converter for EL - CR2032 cables - zdjęcie 3

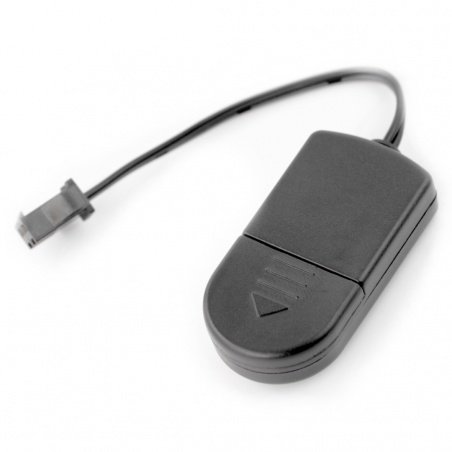

Step-up converter 3V WY-ELI-ITB2-0-50CM for EL cables with CR2032 baterry socket

Index: ODS-13787 EAN: 5904422321468

Small portable inverter forelectroluminescentcables. The device is powered by a CR2032 battery, which is capable of powering up to 50 centimeters of high brightness EL wireor a 10 cm x 1 cm strip for 3 hours.

€7.02
€5.71 tax excl.

The minimum purchase order quantity for the product is 10.

Waiting time approx. 4-6 weeks
Only on request
30-day returns
PayPal payment
Manufacturer: OdSeven

Description

Small portablecableconvertereThe device powersCR2032batteries,which can supply up to 50 centimetres of highbrightnessEL cableor10 cm x 1 cmtapefor 3 hours.or longer if the cable isshorter than 50 cm.

The converter does not have batteriesincluded. They can be purchased separately.

On one of the sides of the device there is a button with which we can selectone of three modes of operation: continuous / flashing / offThesetincludes a 2.5 mm 2-pinfemale JST connector. The converteroperates on"audible"frequenciesandits oscillation is 2000 Hz, whichmeans that you can hear a slight squealingcomingout of the housing.

The converter requires a 'load' to stabilise. Do not start the inverter

without at least 30 cm EL cable connected. Otherwise, the device may

get stuck and cause damage.

Specification

  • Input voltage: 3 V DC
  • Output voltage: 100 V AC
  • Frequency of operation: 60 Hz to 2000 Hz
  • Current consumption for 1 m. of EL cable: 10 to 15 mA
  • Dimensions: 46 mm x 24 mm x 10 mm
  • Power supply: 1 x CR2032
  • Maximum EL cable length with higher brightness: 50 cm
  • Maximum EL strip dimensions: 10 cm x 1 cm
  • Weight: 10 g (without batteries)
Length 46 mm
Width 24 mm
Height 10 mm
Raster 2.50 mm
Cable - type JST
Lead 2
Voltage to 3.0 V
Voltage from 3.0 V
Mass 10 g
Voltage nominal 3.0 V
Cell - case CR2032
Cell 1
