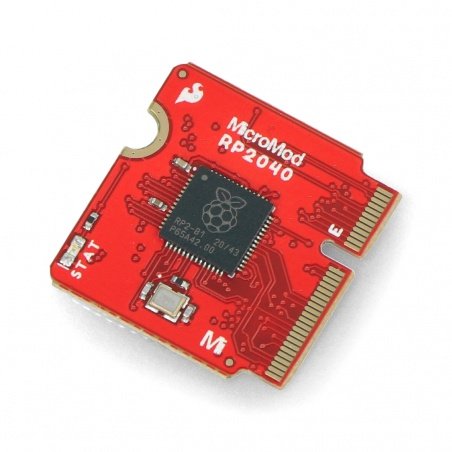

SparkFun MicroMod - RP2040 - DEV-17720
SparkFun MicroMod - RP2040 - DEV-17720
SparkFun MicroMod - RP2040 - DEV-17720
SparkFun MicroMod - RP2040 - DEV-17720
SparkFun MicroMod - RP2040 - DEV-17720
 - zdjęcie 1
SparkFun MicroMod - RP2040 - DEV-17720 - zdjęcie 2
SparkFun MicroMod - RP2040 - DEV-17720 - zdjęcie 3
SparkFun MicroMod - RP2040 - DEV-17720 - zdjęcie 4
SparkFun MicroMod - RP2040 - DEV-17720 - zdjęcie 5
SparkFun MicroMod - RP2040 - DEV-17720 - zdjęcie 6

SparkFun MicroMod - RP2040 - DEV-17720

Index: SPF-18866 EAN: 5904422370336
This module is produced by SparkFun as a small board equipped with Raspberry Pi RP2040 microcontroller. It has a dual core Cortex M0+ processor clocked at 133 MHz. The SparkFun MicroMod is equipped with 264 kB of SRAM, 6 dedicated IO pins for SPI Flash memory and 30 multi-function GPIO pins. The RP2040 processor can be programmed using both C/C++ and MicroPython. It has UF2 booting and floating point routines built into the chip. The board has an additional chip with 16 MB of QSPI Flash memory, which is designed to store program code. The module is equipped with an M.2 connector, so it can work with MicroMod series expansion boards.
€15.38 -12%
€13.53
€11.00 tax excl.
Waiting for confirmation of delivery date
Product unavailable
30-day returns
PayPal payment
Manufacturer: SparkFun

Product description: SparkFun MicroMod - RP2040 - DEV-17720

A module produced bySparkFunin the form of a small board equipped with a Raspberry PiRP2040microcontroller. It has a dual coreCortex M0+processor clocked at133 MHz. The SparkFun MicroMod is equipped with 264 kB of SRAM, 6 dedicated IO pins for SPI Flash memory and 30 multi-function GPIO pins. The RP2040 processor can be programmed using bothC/C++andMicroPython. It has UF2 booting and floating point routines built into the chip. The board has an additional chip with 16 MB of QSPI Flash memory, which is designed to store program code. The module is equipped with M.2 connector, so it can work with MicroMod series expansion boards.

A detaileduser guideis available on themanufacturer's websiteto make working with the SparkFun MicroMod module easier.

Dwurdzeniowy procesor Dual Core M0+ o taktowaniu 133 MHz.

Dual CoreM0+ processor clocked at 133 MHz.

SparkFun MicroMod technical specification

  • Chip: Raspberry Pi RP2040
  • Supports C / C++ and MicroPython programming
  • 16 MB of external QSPI Flash memory
  • Pinouts:
    • 1 x USB dedicated for programming and debugging (with host support)
    • 2 x UART
    • 2 x I2C
    • 2 x SPI
    • 29 x GPIO
    • 2 x digital pins
    • 3 x analog pins
    • 16 x PWM
  • Built-in LED to indicate processor status
  • Board dimensions: 22 x 22 mm

Technical specification of RP2040 chip

  • Processor: Dual Core M0+
  • Processor clocking: 133 MHz
  • Embedded SRAM: 264 kB
  • 6 dedicated IO for QSPI Flash
  • 30 programmable IO:
    • dedicated to commonly used peripherals
    • 4 x ADC 12-bit with built-in temperature sensor, 0.5 MSa/s
  • SWD interface
  • Connectors: M.2 standard
  • Timer with 4 alarms
  • Built-in real-time clock (RTC)
  • USB 1.1 Host / Device functionality
  • Development environment:
    • MicroPython language
    • C / C++ language
przetwornik ADC 12-bit z wbudowanym czujnikiem temperatury, 0,5 MSa/s .

Board equipped with four 12-bit ADCs with built-in temperature sensor, 0.5 MSa/s.

UC - Microcontroller RP2040
UC - Core ARM Cortex-M0+
UC - core 2. Dual Core
UC - freq 133 MHz
