Product description: Schottky diode MBR20100 CT 20 A / 100 V
The MBT20100CT (also known as the MBR20100CT) is an efficient Schottky diode with a maximum reverse voltage of 100 V and a maximum forward current of 20 A. Its single-cathode, dual-anode design makes it ideal for applications requiring efficient voltage rectification. Schottky technology provides low forward voltage drop (from 0.75 V) and a very fast switching time , resulting in lower losses and higher power efficiency. The TO-220AB package simplifies installation and provides efficient heat dissipation.
Schottky diode MBR20100 CT 20 A / 100 V
Double Schottky diode.
Main features
- Reverse voltage: up to 100 V
- Forward current: up to 20 A (10 A per diode)
- Type: Single Common Cathode Double Schottky Diode
- Low forward voltage drop: from 0.75 V
- Housing: TO-220AB – ensures good cooling
- Short switching time: minimal switching losses
- High temperature resistance: up to 150°C
Technical specifications
- Diode type: double Schottky
- Configuration: one common cathode, two anodes
- Reverse Voltage (VR): up to 100 V
- Forward current (IF): up to 20 A (10 A per diode)
- Peak current (IFSM): 150 A (for 8.3 ms)
- Forward voltage drop (VF): 0.75 V to 0.95 V (at 10 A, 25°C)
- Reverse current (IR): 2 mA max (at 100 V, 125°C)
- Housing: TO-220AB
- Operating temperature: -65°C to +150°C
- Dimensions: compatible with TO-220AB
- Weight: approx. 2 g
Contents of the set
- 1 x MBT20100CT Dual Schottky Diode in TO-220AB package

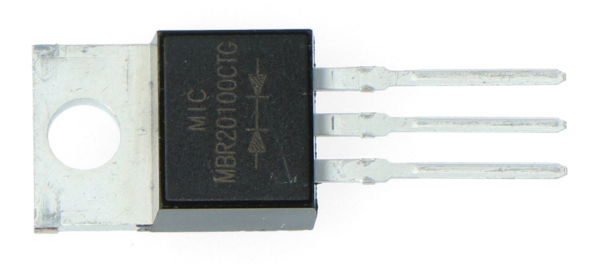

Schottky diode with common cathode in the center.
