Sharp GP2Y0A02YK0F - Analog distance sensor 20-150 cm - Pololu 1137

Index: PLL-00073 EAN: 5904422351953

Analog distance sensor (rangefinder) Sharp GP2Y0A02YK0F to detect objects in the range from 20 to 150 cm.

€15.18
€12.34 tax excl.

In stock, shipping 24 hours!
(Check quantity)
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: Sharp

Specification: Sharp GP2Y0A02YK0F - Analog distance sensor 20-150 cm - Pololu 1137

  • Measurement range 20-150 cm
  • Supply voltage of 4.5-5.5 V
  • The average current consumption 33 mA
  • Response time: 38 ms
  • Output: voltage-analog signal
  • Case: 29.5 x 13,0 x 21.5 mm
  • Weight: 4.8 g



Description of the distance sensor GP2Y0A02YK0F

The sensor can detect objects at a distance of from 20 to 150 cm Output is the analog signal whose value depends on the distance between the detected object and the sensor. The closer the object is, the voltage at the output will be higher.



The product is compatible with Arduino

The sensor's output should be connected to any analog pin, the measurement is done using the function analogRead(sensorPin);. Example of the project with code can be found onthe bildr websiteand inour guide.



Accessories for sensor Sharp GP2Y0A02YK0F

To facilitate the connection of the sensor, in our offer available are also specialwires:without ends and with the ends:maleandfemale.


Czujnik odległości sharp z przewodem połączeniowym

The other optical distance sensors

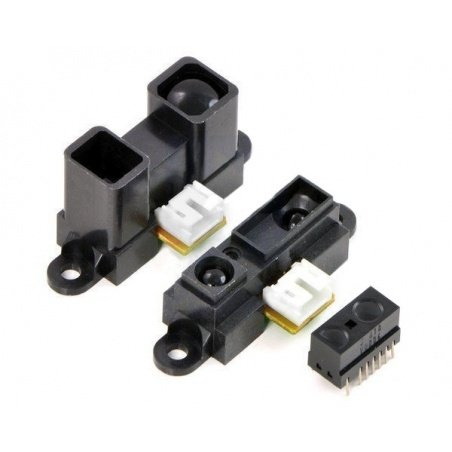

In our store available are versions of analog sensors that detect objects in the range of:4-30 cm,10-80 cm,20-150 cmand digital sensors that detect objects in field of view of:5 cm,10 cmand40 cm.



Pins of the distance sensor Sharp GP2Y0A02YK0F

The sensor has three pins: power supply - Vcc (voltage is from 4.5 to 5.5 V), ground - GND and analog output signal Vo, the value of which depends on the distance between the sensor and the detected object, this dependence is presented onthis chart. The following figure shows the location of the pins.

Voltage to 4.5 V
Voltage from 5.5 V
Interface analog
Sensor - distance to 150 cm
Sensor - distance from 20 cm
