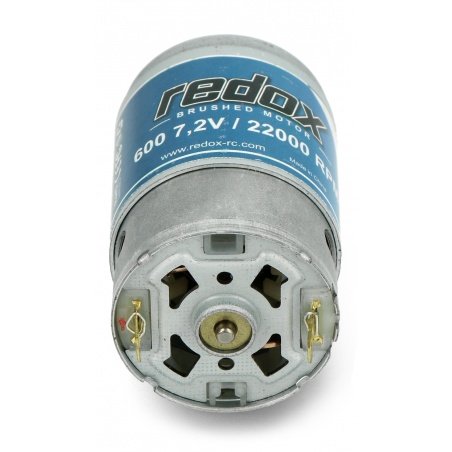

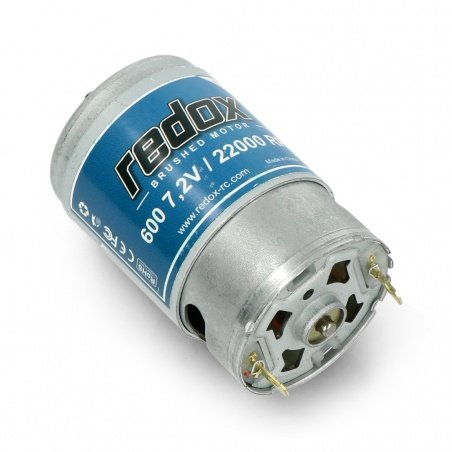

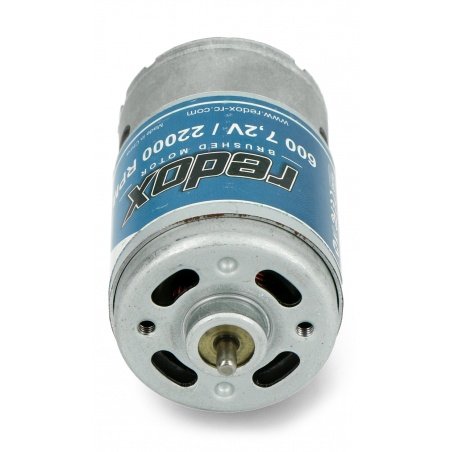

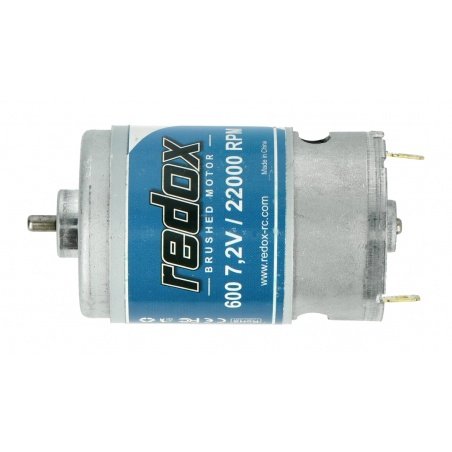

Redox DC Motor 7,2V 22000RPM

Index: ANF-18444 EAN: 5903754000324
BOTLAND B. DERKACZ SPÓŁKA JAWNA Opinie z ekomi-pl.com
DC brush motor from Redox. Provides a torque of 0.282 kg*cm. The motor supply voltage is 7.2 V DC. The speed is 22000 rpm. The simple and robust design of the device makes the motor can be used, among other things, in the design of robots, vehicles and industrial and home automation equipment.
€7.85
€6.38 tax excl.

Available
(Check quantity)
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: Redox

Product description: Redox DC 7.2 V 22000 RPM motor

DC brush motor from Redox. Provides a torque of 0.282 kg*cm. The motor supply voltage is 7.2 V DC. The speed is 22000 rpm. The simple and robust design of the device makes the motor can be used, among other things, in the design of robots, vehicles and industrial and home automation equipment.

Technical specifications

  • Operating voltage: 4.5 V to 8.4 V DC
  • Nominal voltage: 7.2 V DC
  • Idle speed: 22000 rpm
  • No load current consumption: 2,5 A
  • Current consumption when the shaft is stopped: 15,5 A
  • Torque: 0.282 kg*cm (0.03 Nm)
  • Power: 80 W (71.4% capacity)
  • Shaft diameter: 3.17 mm
Silnik Redox DC 7,2 V 22000 RPM.

Redox DC 7.2 V 22000 RPM motor.

Voltage to 4.5 V
Voltage from 8.4 V
Rotation speed 22000 obr/min
Torque 0,282 kg*cm
Motor - shaft 3.2 mm
