RS-AMP kit - Reduktor Szumu

Index: MSX-19317 EAN: 5904422328535

Ask a question

Remove from wishlist Add to wishlist

DIY digital amplifier kit by Noise Reducer. The amplifier is based on Tripath TA2022 chip, the power of the amplifier is about 2 x 100 W on 4 ohm impedance. The kit includes a PCB with soldered SMD components and a set of THT components for individual soldering.

€119.90

€97.48 tax excl.

Check quantity

Manufacturer: MSX Elektronika

Must-have accessories

DAC to build RS-AMP amplifier - SMD board + THT kit - Noise Reducer

€39.90

Product description: RS-AMP kit - Noise Reducer

DIY digital amplifier kit by NoiseReducer. The amplifier is based onTripath TA2022chip, power of the amplifier is about2 x 100 Won 4 Ω impedance. The set includes a PCB with soldered SMD components and a set of THT components for individual soldering. The amplifier module supports two channels, so a stereo connection is possible. All components included in the set have been closed in antistatic pouches, which are additionally described, making it easier to find the right element.

RS-AMP amplifier

Preampandpower supplycircuits are located on the amplifier board. The module is powered by a toroidaltransformerwith a capacity of about 200 W. The power supply on the board has 24 V, 15 V and 5 V output. The module is characterized by power supply with a very low noise level, which is very important to obtain a very good sound quality.
A detailed description of the board can be seen in the author's video: Noise Reducer.

In our offer you can also findHead Amplifierby Noise Reducer and DAC.

Contents of the kit

L.p.	Picture	Description

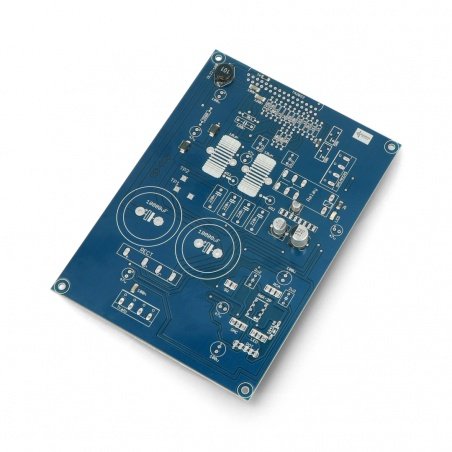

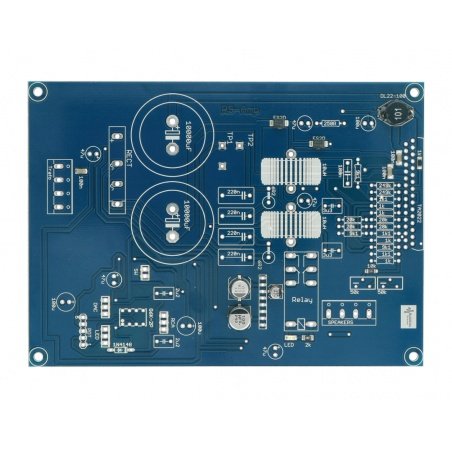

1		PCB RS-AMP with soldered SMD components
2		2 x 6.2 Ω 2W 5% resistor.
3		2 x resistor 249 kΩ 1%.
4		1N4148 diode.

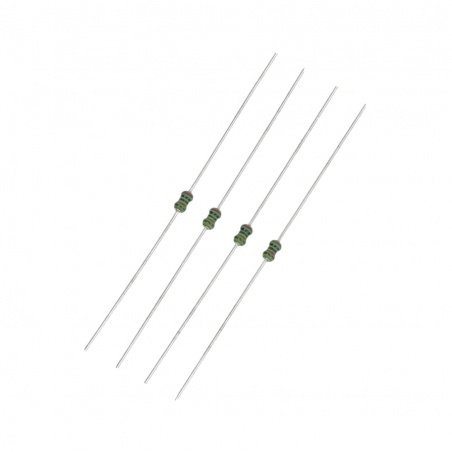

5		4 x 9.1 kΩ 1% resistor.
6		4 x 1 kΩ 1% resistor.

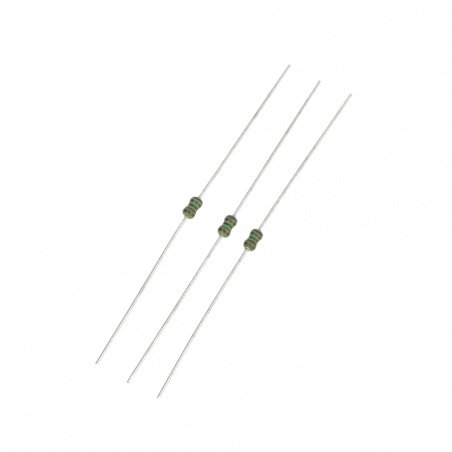

7		3 x 1.1 kΩ resistor 1%.
8		4 x 20 kΩ resistor 1%.
9		250 Ω resistor 1%.
10		Tripath TA2022 integrated circuit.
11		5 x 47 uF electrolytic capacitor.

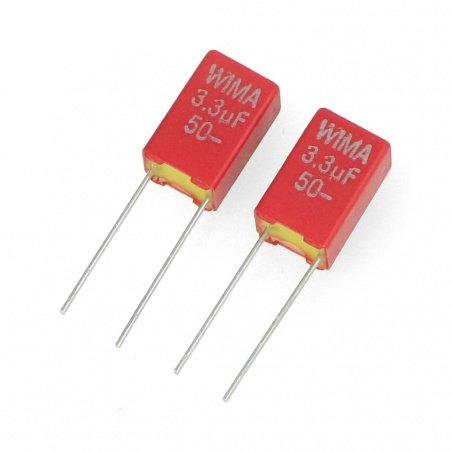

12		2 x 3.3 uF polyester capacitor.
13		2 x polyester capacitor 2,2 uF.

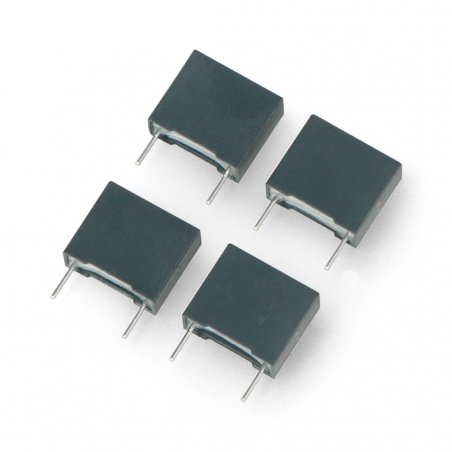

14		4 x 220 nF polyester capacitor.
15		PC1237HA integrated circuit.
16		2 x 50 kΩ potentiometer.
17		Rectifying bridge.

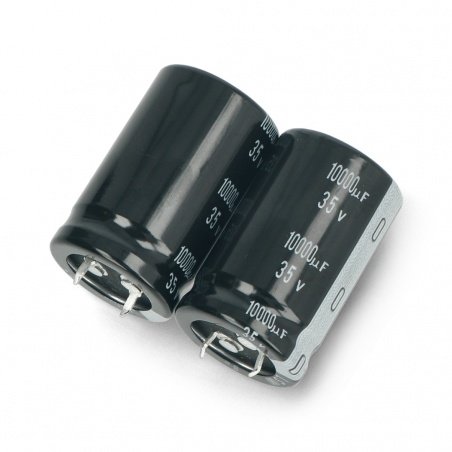

18		2 x electrolytic capacitor 1000 uF / 35 V.
19		3 x 100 uF electrolytic capacitor.
20		2 x 4-pin screw connector.
21		G6K-2P relay.
22		100 nF polyester capacitor.

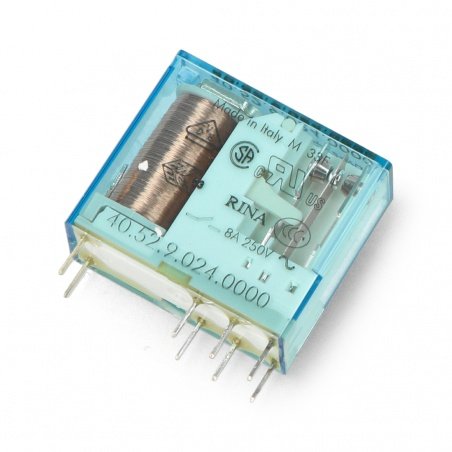

23		F4052 24 V relay.
24		10uH choke.

Useful links

Channel Noise Reducer

Package width	22 cm
Package height	6 cm
Package depth	15 cm
Package weight	0.331 kg

Send us your question

Dawid 12/27/21	Question: What are the dimensions of the board? What kind of power supply does this amplifier expect?
	Answer: The board has dimensions of 14.7 x 10.7 cm. As for the power supply, this issue is addressed in the video about this amplifier where the author describes the selection of a suitable transformer. The video is available in the product description. In addition, I send a direct link to it: https://www.youtube.com/watch?v=rxR_7Ew3qwk

Product reviews

4.8/5

Average grade

9

Customers opinion

The following opinions are collected
and verified by
an external partner Trustmate
and come from the post-purchase process.

JJ 13.03.2023 Confirmed purchase Translated review

Very good quality components. It's worth it.

Sebastian 09.12.2022 Confirmed purchase Translated review

The amplifier is designed correctly in terms of noise (better than the Chinese one, which I also have, anyway; the hum of the RS amplifier is barely audible from the meter on 86 dB/W speakers). The author did not save on components, although he could use a larger relay (100 mΩ is a lot for loudspeakers). Unfortunately, there is no schematic in the kit and it is not online either, so you have to check everything with an ohmmeter. The tile is twice as large as the Chinese one. I consider it a mistake to pack everything on one PCB for amateur construction, because a separate power supply, input switch and speaker protection could be easier placed in the housing.
