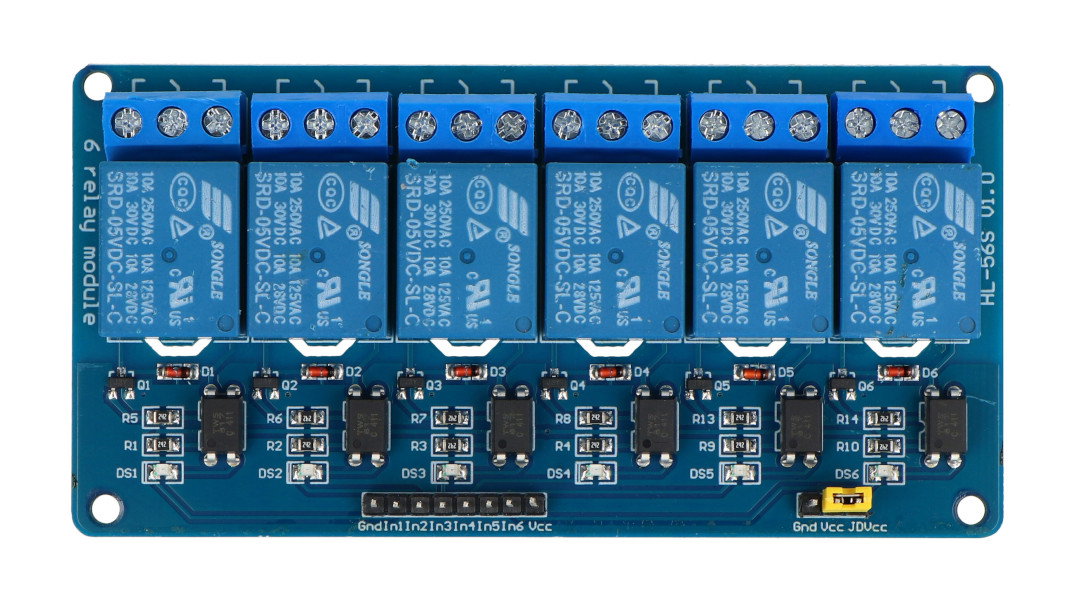

Optoisolation relay module 6 channel - 10A/250VAC contacts - 5V coil

Index: MOD-08223 EAN: 5904422336325

The module has six SRD-05 relays with a coil powered with a voltage of 5 V along with optoelectronic insulation. The system allows you to control actuators with microcontroller ports or any development kit.

Optoisolation relay module 6 channel - 10A/250VAC contacts - 5V coil
€5.62
€4.57 tax excl.
Available
Check quantity
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: OEM

Specification

  • Supply voltage VCC: 12 V
  • Activated with the low status
  • Relay SRD-05VDC-SL-C (documentation)
    • Coil voltage: 5 V
    • The maximum voltage of contacts: 250 VAC, 125 VDC*
    • Maximum current: 10 A
  • Optoelectronic insulation
  • 6 LEDs signalling the activation of relays
  • The dimensions of the board 104 x 53 mm
  • Weight: 82 g
  • Diameter of mounting holes: 3 mm



* Maximum contact voltage depends on the type of load - details in the documentation, tab. 7. Contact Rating.



Description

The module allows to control the actuators consuming the current up to 10 A using the microcontroller's ports or any development kit (including ArduinoRaspberry Pi and STM32Discovery). Optical insulation seperates the control signal from the part associated with the power of relay, thereby providing work safety of the management system.



The product is compatible with Arduino

For relay control, sufficient is a digital control signal from the pins of the Arduino.



Connection

For proper operation, it is sufficient to connect the power of the relay coil and the digital control signal. Leads are the standard goldpin strips with the pitch of 2.54 mm, which enables connection using the popular connecting cables.

The relay has the following pins

  • VCC, DC+- power supply of the optocoupler
  • GND,DC- - ground of the system
  • IN1 ... IN6- control inputs of the relay are activated by the the low status
  • Connectors KF (ARK)- the relay contacts are connected in accordance with the pattern on the board of the module.
