Product description: ESP32-S3-Korvo-2 - development board
The ESP32-S3-Korvo-2 is a versatile development board designed for multimedia projects. It is based on the ESP32-S3-WROOM-1 , which integrates WiFi and Bluetooth and has advanced signal processing capabilities. The board is equipped with a dual microphone that supports voice recognition and far-field functions, making it ideal for creating smart home devices and IoT applications. Additionally, it has the ability to connect to an LCD display and camera and is equipped with a microSD card slot , enabling video editing and streaming.

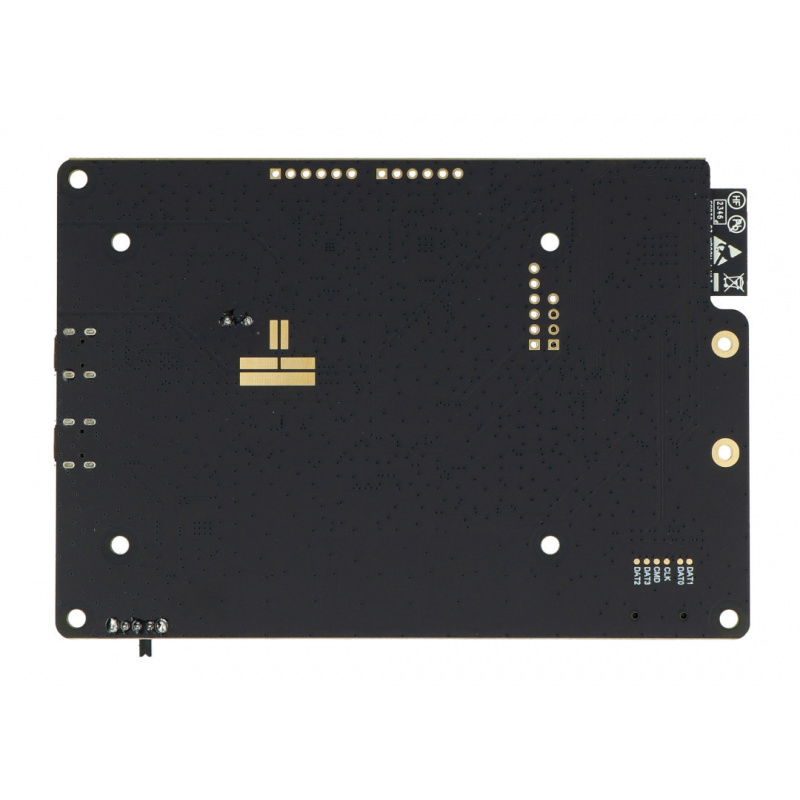

ESP32-S3-Korvo-2 - development board.
ESP32-S3-Korvo-2 is a versatile development board designed for multimedia projects.Special Features
- ESP32-S3-WROOM-1 - WiFi + Bluetooth module with advanced signal processing capabilities. ESP32-S3 offers high performance, low power consumption and support for advanced features
- Dual microphone - microphones can capture sound from different directions, which is ideal for interactive voice applications
- LCD display - provides a clear and legible display of information, which significantly facilitates navigation and operation of the device (not included)
- Camera - Built-in camera allows you to capture images and video, which can then be processed or transmitted in real time (not included)
- Low power consumption - the device has been designed to minimize power consumption, making it perfect for projects that require continuous power supply
Description of the elements on the board
- ESP32-S3-WROOM-1 module
- Left microphone
- Audio chip ES7210
- Audio chip ES8311
- Audio amplifier
- Right microphone
- Speaker output port
- USB - UART bridge circuit
- USB-UART port
- USB power port
- Battery socket
- Power button
- Battery charge management system
- Utility buttons
- Boot and Reset Button
- microSD slot
- LCD connector
- System diodes
- Camera connector
Arrangement of components on the board.
The module has the ability to connect to an LCD display and camera and is equipped with a microSD card slot, enabling video processing and streaming.Technical specification
- Microcontroller: ESP32-S3-WROOM-1
- WiFi: 2.4GHz, 802.11b/g/n
- Bluetooth: Bluetooth 5.0 BLE
- Memory: 4MB RAM, 16MB Flash
- Interfaces: I2S, I2C, SPI, UART
- Power supply: 5V via USB, optional lithium-ion battery
- Ports: USB, microSD, speaker output jack
Kit Contents
- ESP32-S3-Korvo-2 - development board
