Cytron Maker Reflect - Analog IR reflectance sensor

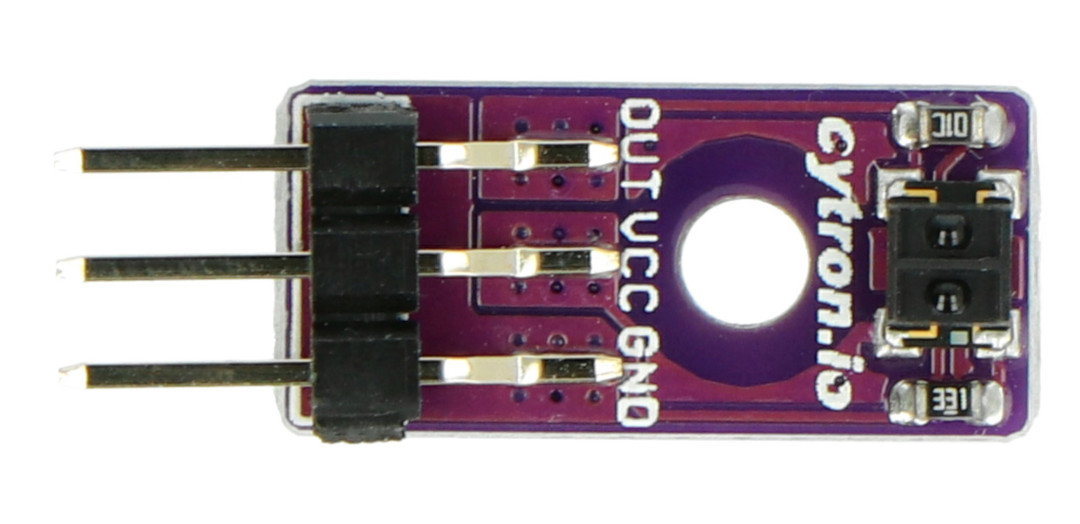

Maker Reflect is a small reflective sensor equipped with an IR diode that sends out an infrared light beam, which returns to the sensor after reflection from the surface and the built-in phototransistor measures its intensity. The sensor can be used to build a line tracing or minisumo robot. The module operates with voltage from 3 V to 5.5 V.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product Description: Cytron Reflect Maker - Analogue IR Reflect Sensor
Maker Reflect is a small reflective sensor equipped with an IR diode that sends out an infrared light beam, which returns to the sensor after reflection from the surface and the built-in phototransistor measures its intensity. The sensor can be used to builda line tracingorminisumorobot. The sensor works with voltagefrom 3 V to 5.5 V. The size of the sensor is: 18,1 x 8,4 x 4,2 mm.We offer a dedicated CytronMakerMini Sumorobot controller.

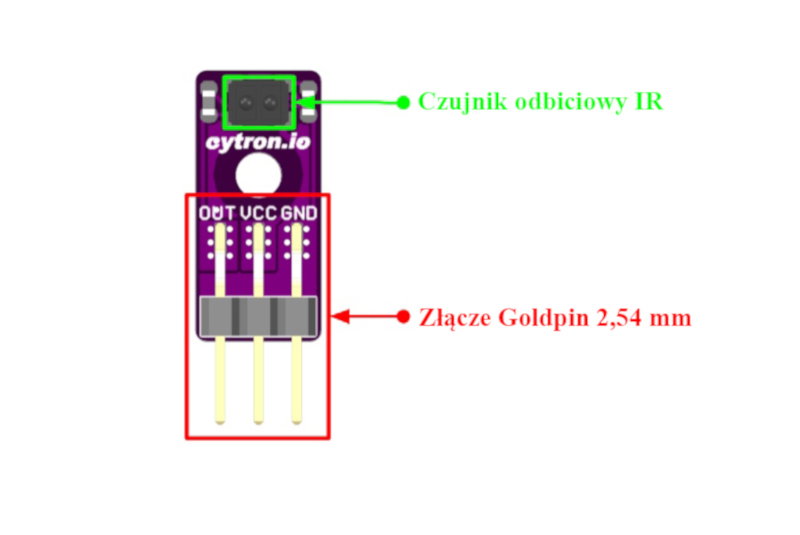

Outputs Cytron Maker Reflect - IR reflective sensor
| Name | Description |
|---|---|
Bounce sensor | Equipped with IR LED and phototransistor. The LED sends a light beam which is reflected from the surface and returns to the phototransistor measuring the intensity of this light. |
2.54 mm goldpin connector | 3-pin goldpin raster connector 2.54 mm
|
Specification Cytron Reflect IR Reflect Maker
- Supply voltage: 3 V to 5.5 V
- Analogue output: Voltage
- 0 V to: VVC
- Detection distance: 1 mm to 40 mm
- Dimensions: 18.1 x 8.4 x 4.2 mm
Useful links
| Name | Value |
|---|---|
| Width | 6 cm |
| Height | 10 cm |
| Depth | 0.5 cm |
| Weight | 0.002 kg |
