Description: 2in1 hotair and Yuihua 995D main soldering station with fan in the flask - 750 W
Soldering station equipped with amainsheet andhotair flask. The total power of the station is 750 W. It is equipped with a PID controller, LCD display and a hotair flask with a fan. The flask is made in ESD Safe technology. The power of the mainsheet flask is 50 W. The maximum hot air flow is 120 l/min.

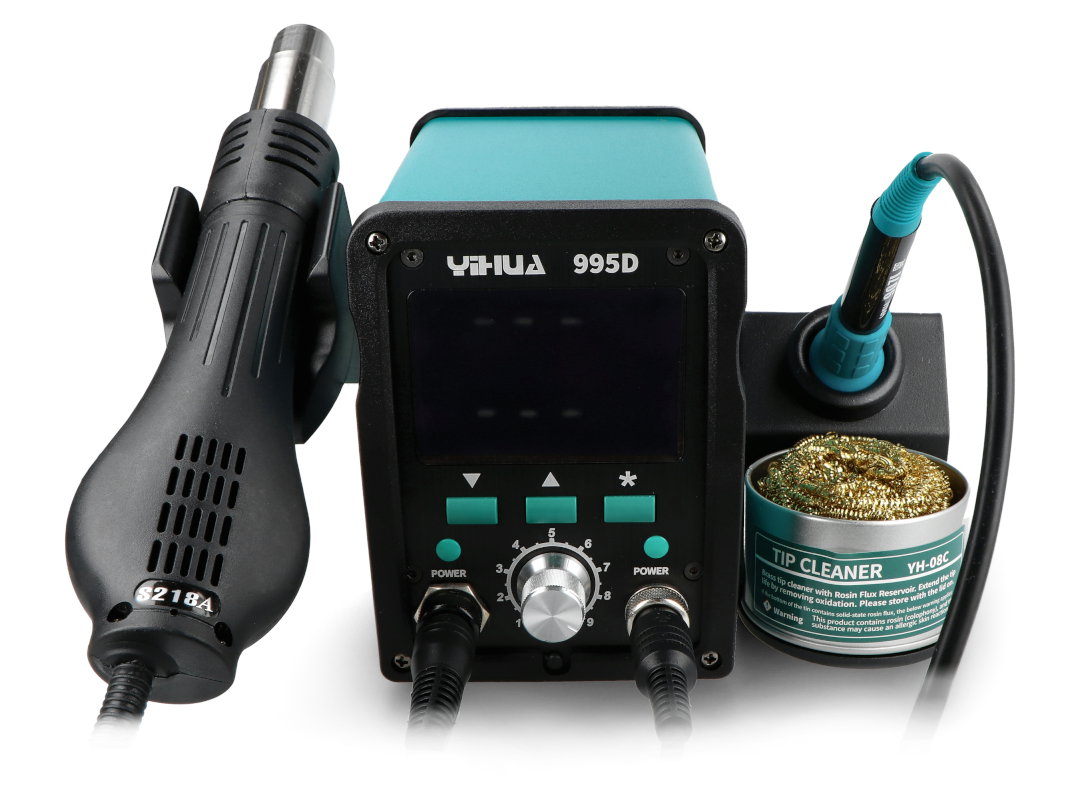

Soldering station Yihua 995D.
Compatible T-x series blades.
Soldering station heat-up characteristics
Zhaoxin and Yihua soldering stations heat up very similarly.Yihua heats up much faster. This difference ensures that you can work at lower / safer temperatures, because the station will quickly compensate for heat loss. The measurements were taken on an external sensor at the end of the G-3C mainsail.
Heat-up time diagram.
Main features of the Yihua 995D soldering station
- 2-in-1 station - mainsail and hotair.
- High quality heating elements.
- Hotair flask can work in automatic or manual mode. In automatic mode, when the flask is put away, the station starts to cool down, and when the heater reaches safe temperature, the air supply is also switched off.
- Sleep mode of the main flask when it is not used with a set time from 1 to 99 minutes.
- Digital calibration of the temperature in °C and °F.
- PID controller.
- Large LCD display.
- Flask made with ESD Safe technology.
- Compact housing.
- Fan integrated in the flask.
Yihua 995D soldering station specifications.
- Supply voltage: 220 V to 240 V AC
- Power consumption: 750 W
- Operating temperature: 0°C to 50°C
- Storage temperature: from -20°C to 80°C
- Station dimensions: 260 x 165 x 148 mm
- Hotair soldering iron:
- Supply air source: fan
- Maximum airflow: 120 l/min.
- Operating temperature: from 100°C to 480°C
- Temperature stability: +/- 1°C
- Display type: LCD
- Cable length: 90 cm
- The main soldering iron:
- Power: 50 W
- Operating temperature: 200°C to 480°C
- Temperature stability: +/- 1°C
- Display type: LCD
- Cable length: 90 cm
- Potential between mainsail and ground: up to 2 mV
- Resistance between mainsail and ground: up to 2 Ω
- Flask: 907L
- Security: ESD Safe
Included:
- Yihua 995D station
- Hotair flask tray
- A set of nozzles:
- round with a diameter of 4.4 mm
- round with a diameter of 8 mm
- round with a diameter of 9 mm
- square 12 x 12 mm
- Main flask holder with cleaning sponge
- Mainsail with mainsail T-I
- System lift gripper
- Power cord
- Manual
|
First start-up
|
