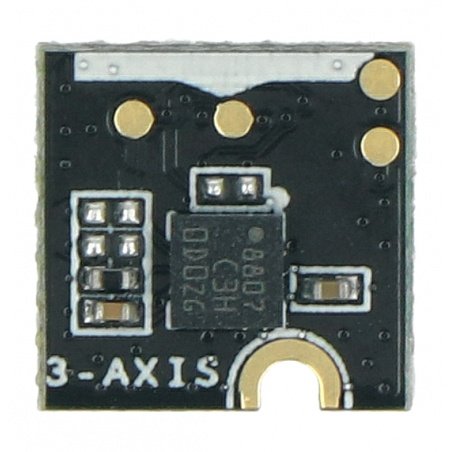

Product description: LIS3DH 3-axis linear accelerometer - extension to WisBlock Sensor - Rak Wireless RAK1904
Another module fromWisBlockSensor series -3-axislinearaccelerometer. The sensor from Rak Wireless allows to measure acceleration in the range± 2 g / ± 4 g / ± 8 g / ± 16 gwith data acquisition frequencyfrom 1 Hz to 5.3 kHz. It is characterized by low power consumption and high efficiency. UsesI2Cbus. It is designed to work withWisBlock Base BoardandWisBlock Coredevelopment modules. It can be programmed using popular environment - Arduino IDE. The manufacturer also provides a friendlyuser guide.
WisBlockSeries modules are an intelligent solution, developed byRak Wireless. It allows to createcomplex IoT projectsapplicable in advanced scenarios as well as in basic projects. They are used not only for rapid deployment of engineering prototypes, but can also be used to create massive applications ready for industrial deployment. The WisBlock system includes the WisBlockBase Board, WisBlockCoredevelopment module, WisBlockSensorsand WisBlock IO expansion modules.
WisBlock Sensor extensions are a component of the WisBlock series system. They are designed to work with the WisBlockBase Boardand are mounted according to the diagram shown in the photo opposite. Before commissioning, make sure that the module has beenproperly attached.
Technical specifications of the sensor
- Type: 3-axis accelerometer
- Circuit: LIS3DH
- Compatible withWisBlockseries
- Supported programming platforms: Arduino
- Range: ± 2 g / ± 4 g / ± 8 g / ± 16 g
- Data acquisition frequency: 1 Hz to 5.3 kHz
- Internal buffer for 32 levels of 16-bit data
- Power supply: 1.7 V to 3.6 V
- Module dimensions: 10 x 10 mm
Check also otherWisblock Sensorseries.
