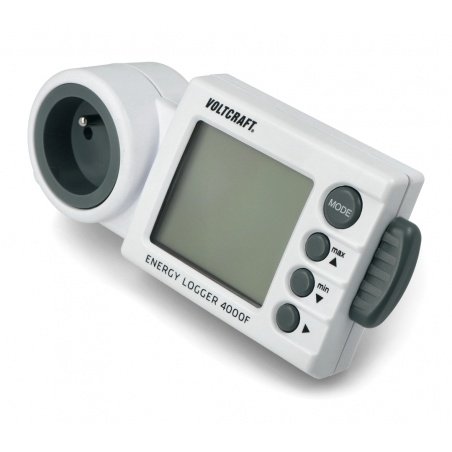

Voltcraft Energy Logger 4000 energy meter
Voltcraft Energy Logger 4000 energy meter
Voltcraft Energy Logger 4000 energy meter
Voltcraft Energy Logger 4000 energy meter
Voltcraft Energy Logger 4000 energy meter - zdjęcie 1
Voltcraft Energy Logger 4000 energy meter - zdjęcie 2
Voltcraft Energy Logger 4000 energy meter - zdjęcie 3
Voltcraft Energy Logger 4000 energy meter - zdjęcie 4

Voltcraft Energy Logger 4000 energy meter

Index: CNR-19322 EAN: 4016138728835

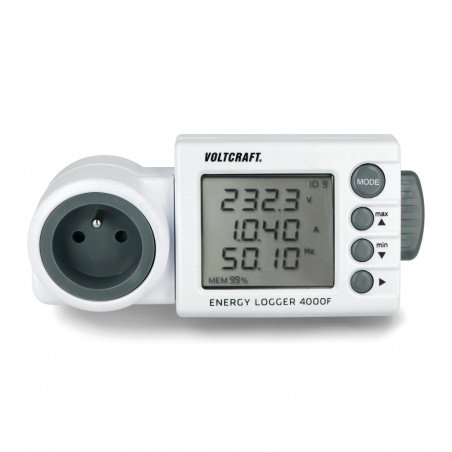

A meter allowing to obtain information about the energy consumption of electrical devices. It allows for identification of consumers consuming the largest amounts of electricity. The Voltcraft Energy Logger 4000 can take measurements for up to 6 months, storing the results in its built-in memory. It is possible to transfer them to an SDHC memory card, which is not included. The meter has a three-level display that shows energy consumption values, power factor cos φ, frequency and current voltage (also its minimum and maximum values). The Energy Logger 4000 registers power changes at a level of 0.1 W.
€65.78
€53.48 tax excl.

Available
(Check quantity)
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: Voltcraft

Product description: Voltcraft Energy Logger 4000

Meterallowing to obtain information about theenergy consumption of electrical devices. Allows identification of loads consuming the largest amounts of electricity. TheVoltcraftEnergy Logger 4000 can take measurements for up to 6 months, storing the results in itsbuilt-in memory. It is possible to transfer them to an SDHC memory card, which is not included. The meter has a three-level display that shows energy consumption values, power factor cos φ, frequency and current voltage (also its minimum and maximum values). Energy Logger 4000 registers power changes on the level of 0.1 W.

Our shop also offers otherVoltcraftmeasuring devices andelectricity consumption meters.

Miernik zużycia energii Voltcraft Energy Logger 4000

Voltcraft Energy Logger 4000 energy consumption meter.

Power consumption meter Voltcraft Energy Logger 4000 specification

Parameter Range
Operating voltage 230 V AC
Maximum current 15 A
Minimum current 0,01 A
Frequency 50 Hz
Maximum power consumption 9999.9 kWh
Minimum value of power consumption 0 kWh
Maximum active power 3500 W
Minimum active power 0,1 W
Accuracy 1%
Maximum recording duration 180 days
Display digital
MID permission no
MID permission no
Power supply Battery CR 1620 3V (backup)
Dimensions 164 x 82 x 83 mm
Weight 240 g

Voltcraft Energy Logger 4000 - mains plug.

Functions Voltcraft Energy Logger 4000

  • Measurement of active power
  • Measurement of power consumption
  • Power factor cos φ
  • Nominal voltage measurement
  • Current measurement
  • Frequency measurement
  • Constant value logging up to 6 months
  • Report of daily energy consumption of the last 9 days
  • Consumption cost forecast
  • Battery CR 1620 3V, enabling saving settings despite of power supply failure(included)

Contents of the meter set

  • Voltcraft Energy Logger 4000 energy consumption meter
  • Voltsoft software
  • User manual
