5V fan 30x30x7mm - with 2.54mm JST connector

Index: DNG-18677 EAN: 5904422308667

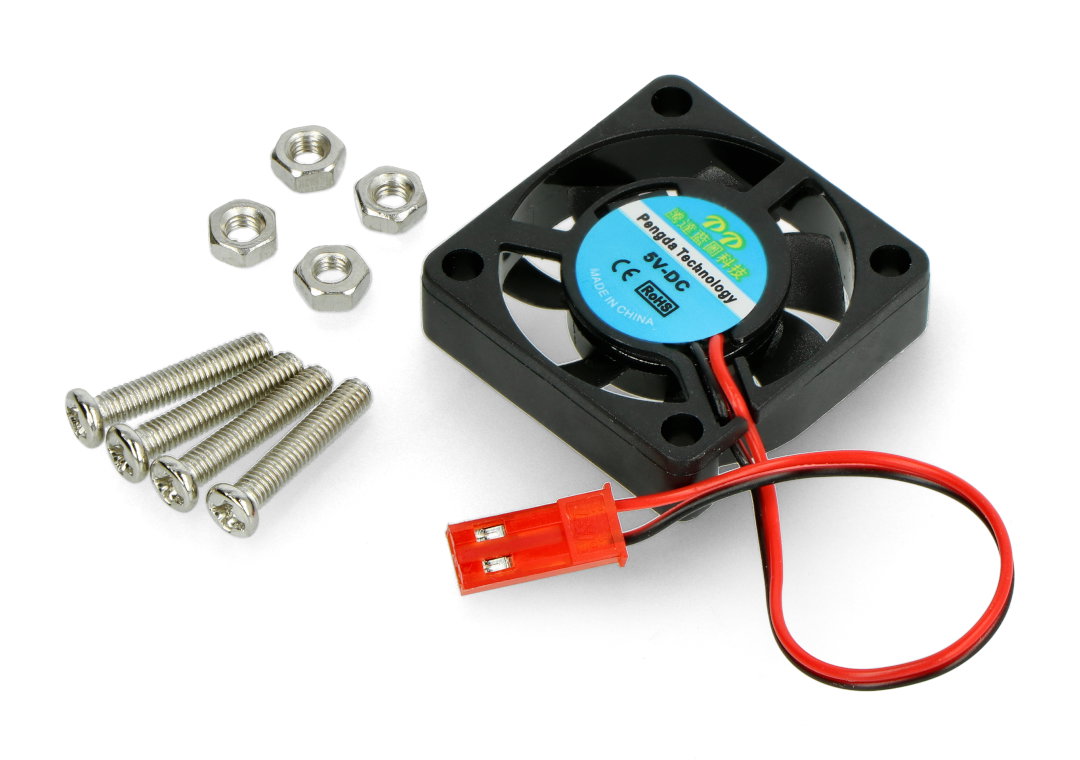

5V mounting fan with dimensions of 30 x 30 x 7 mm. Equipped with two 10 cm long cables, terminated with a female connector. The kit includes the necessary mounting elements, screws and nuts. Using the fan allows to lower the temperature of the module.
€1.71
€1.39 tax excl.
Delivery scheduled for 2022-06-20
Waiting for delivery
30-day returns
PayPal payment

Product Description: 5V fan 30 x 30 x 7mm - with JST 2.54mm connector

5V mounting fanwith dimensions of30 x 30 x 7 mm. Equipped with two10 cmlong cables, terminated with JST 2,54 mm connector. Kit contains necessary mounting elements, screws and nuts. Using a fan allows tolowerthe temperature of the module.

Specification

  • Supply voltage: 5 V
  • Power: 0,85W
  • Rotational speed: 8000 RPM
  • Sound intensity: 25 dB
  • Lifetime: 30000 h
  • Connections: cables with JST female connector
  • Dimensions: 30 x 30 x 7 mm
  • Cable length: 10 cm (including connector)
  • Weight: 6.6 g
  • Screws and nuts included
Wentylator o wymiarach 30 x 30 x 7 mm.

Fan with dimensions of 30 x 30 x 7 mm.

Length 30 mm
Width 30 mm
Height 7 mm
Voltage to 5.0 V
Voltage from 5.0 V
