- New

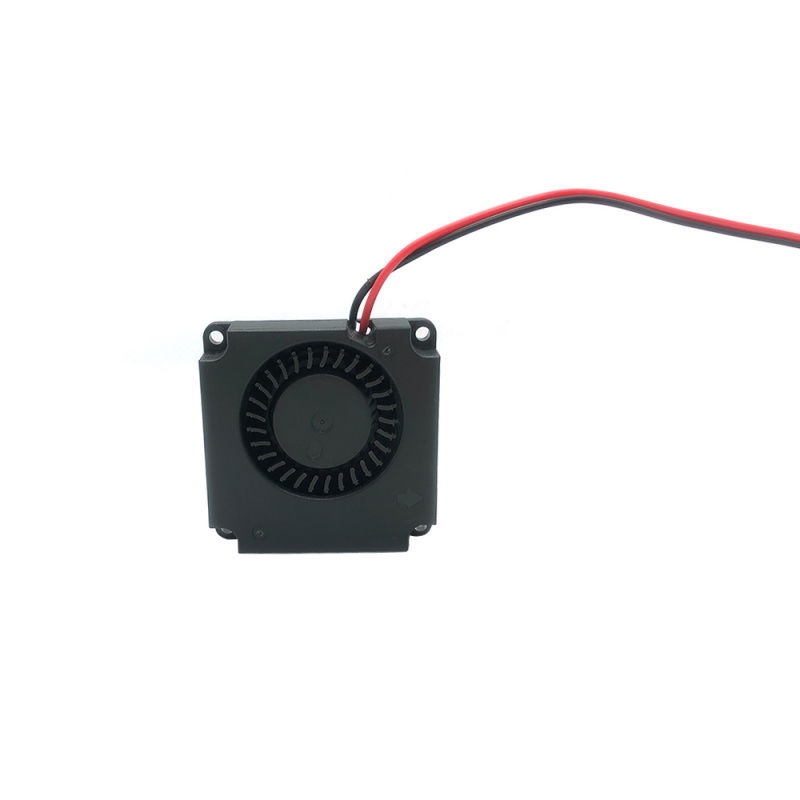

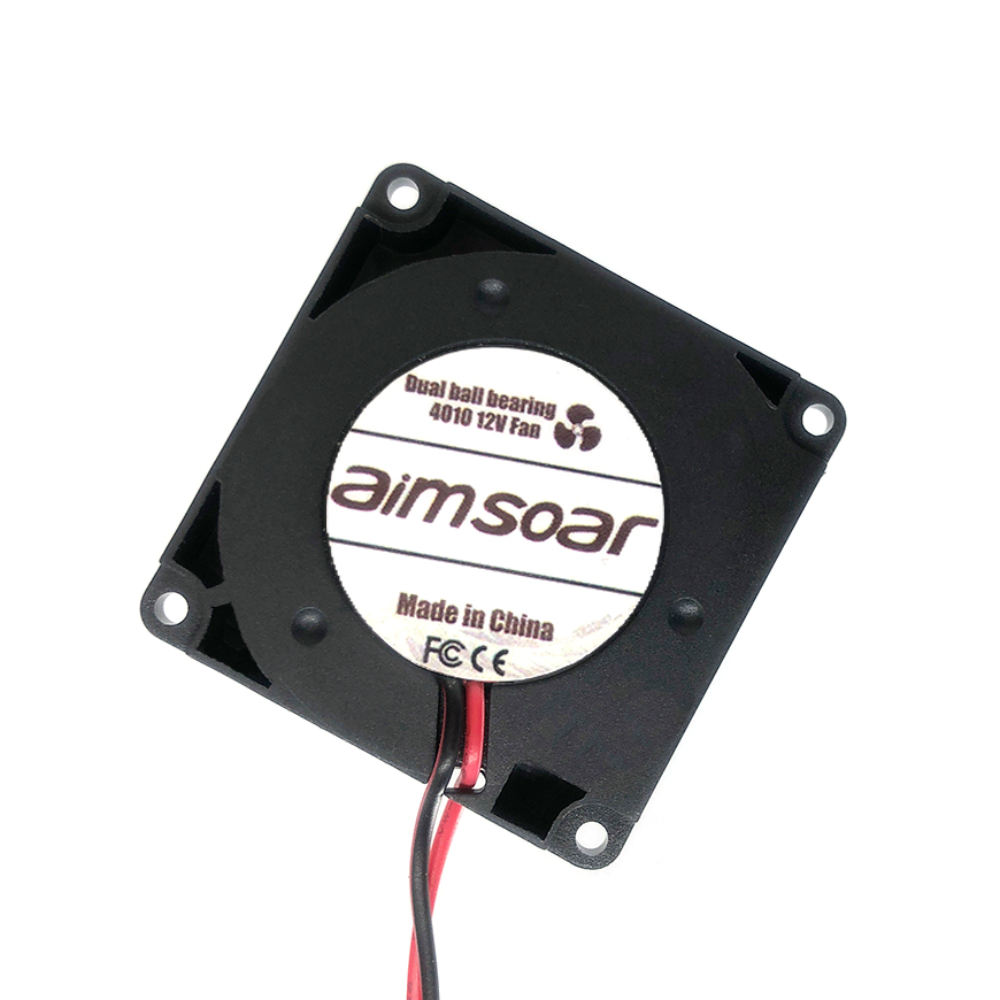

Product description: Turbine fan 12V 40 x 40 x 10 mm - with double ball bearing - Aimsoar AM006-E
The AM006-E is a powerful 40 x 40 x 10 mm turbine (turbo) axial fan designed for applications requiring intense and directed airflow. Thanks to its 12 V DC power supply, high rotational speed, and turbo design, this model provides significantly improved cooling compared to standard 4010 fans.
Turbine fan 12V 40 x 40 x 10 mm - with double ball bearing - Aimsoar AM006-E.
AM006-E is an efficient turbine (turbo) axial fan with dimensions of 40 x 40 x 10 mm.Practical applications
The AM006-E fan is ideal for cooling 3D printers, control electronics, device enclosures, inverters, routers, and DIY projects. Its compact size and quiet operation make it particularly suitable for applications where installation space is limited and stable cooling is crucial.
Technical specifications of the fan
- Type: turbine axial fan
- Model: AM006-E
- Power supply voltage: DC 12 V
- Rated current: 0.08 A
- Power: 1 W
- Rotation speed: 6500 RPM ±5%
- Air flow: 8 CFM
- Noise level: 29 dBA
- Bearing type: double ball bearing
- Connector: 2-pin
- Operating temperature: -10°C to 60°C
- Storage conditions: up to 95% RH
- Estimated lifespan: over 30,000 hours
- Cable length: 30 cm

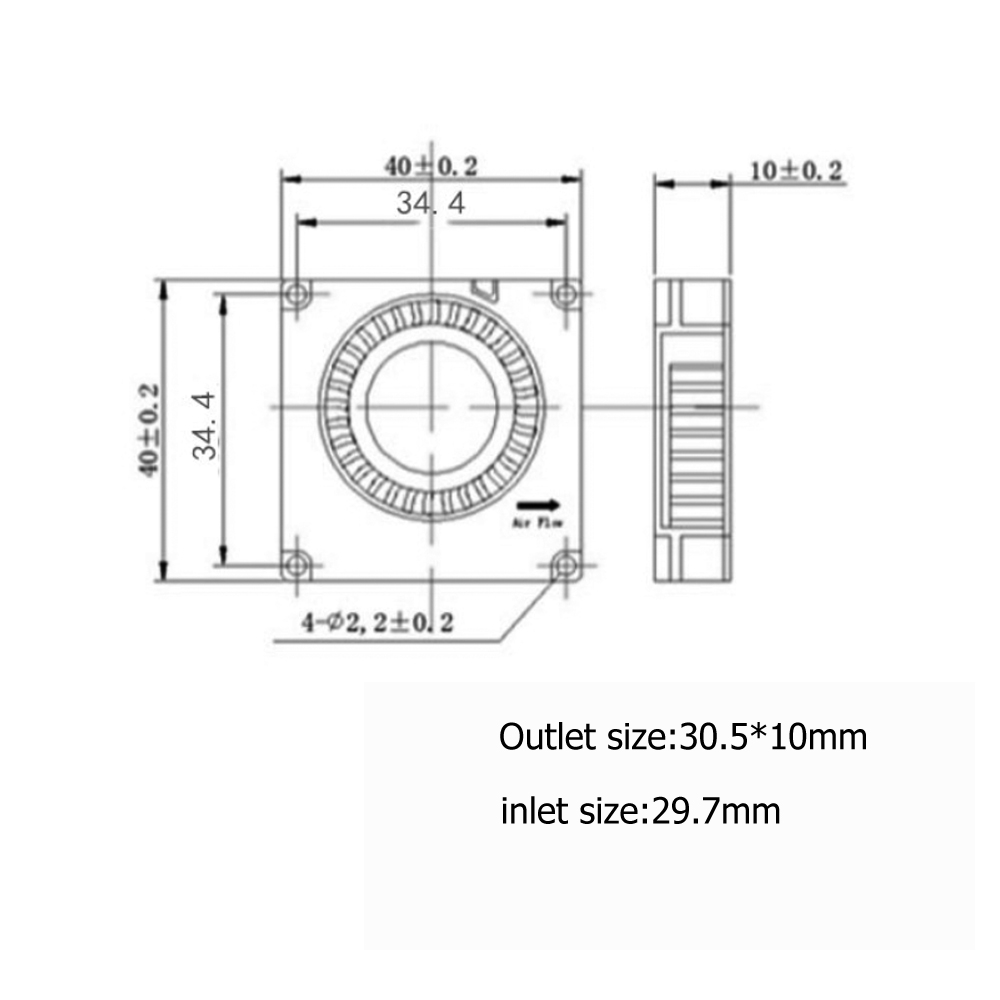

- Dimensions: 40 x 40 x 10 mm
