Product description: 12V fan 40 x 40 x 10 mm - Aimsoar AM006-A
The AM006-A is a compact axial fan measuring 40 x 40 x 10 mm , designed to effectively cool electronics and components operating in confined spaces . With a 12V DC power supply, stable speed, and moderate noise level, this model is suitable for both hobby and technical applications.

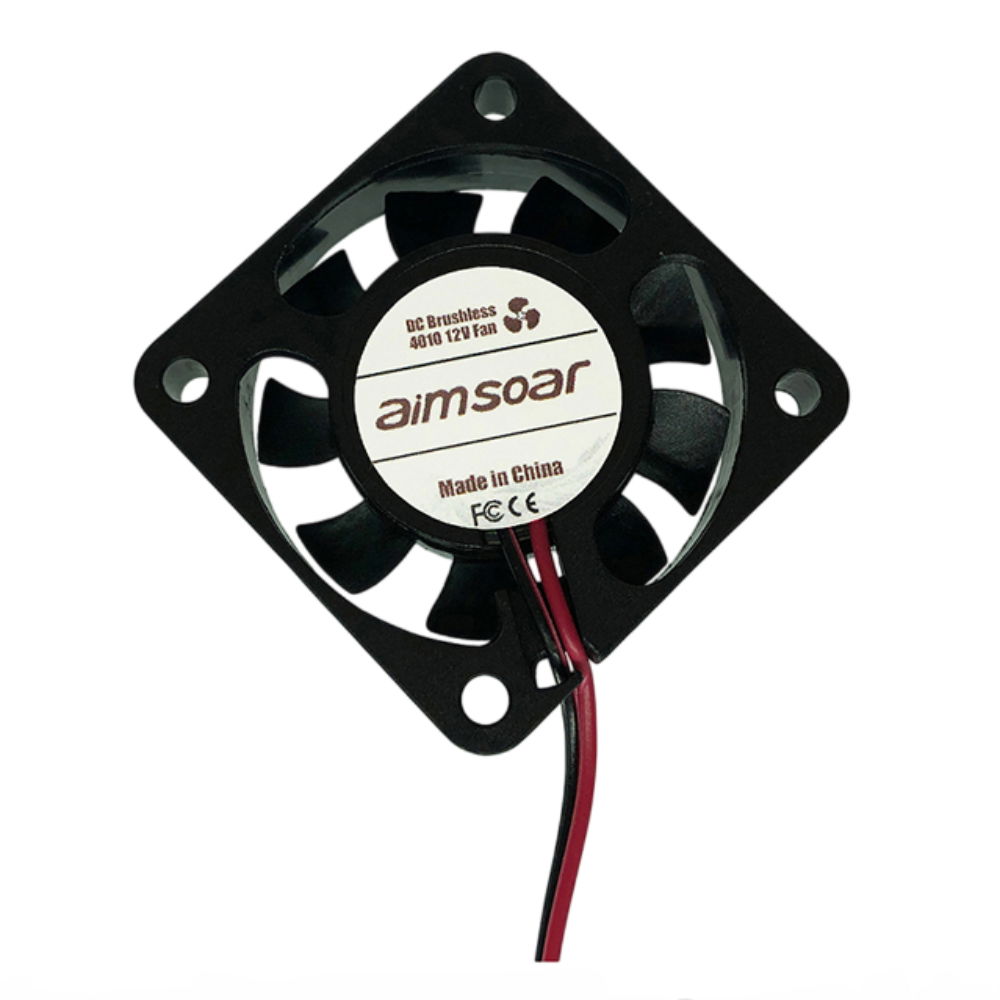

Fan 12V 40 x 40 x 10 mm - Aimsoar AM006-A.
The AM006-A fan is a compact axial fan with dimensions of 40 x 40 x 10 mm.Practical applications
The AM006-A fan is ideal for cooling 3D printers, control electronics, device enclosures, inverters, routers, and DIY projects. Its compact size and quiet operation make it particularly suitable for applications where installation space is limited and stable cooling is crucial.
Technical specifications of the fan
- Type: axial fan
- Model: AM006-A
- Power supply voltage: DC 12 V
- Rated current: 0.1 A
- Power: 1.2 W
- Rotation speed: 6512 RPM ±5%
- Air flow: 6 CFM
- Noise level: 25 dBA
- Bearing type: plain
- Connector: 2-pin
- Operating temperature: -10°C to 60°C
- Storage conditions: up to 95% RH
- Estimated lifespan: over 30,000 hours
- Cable length: 30 cm

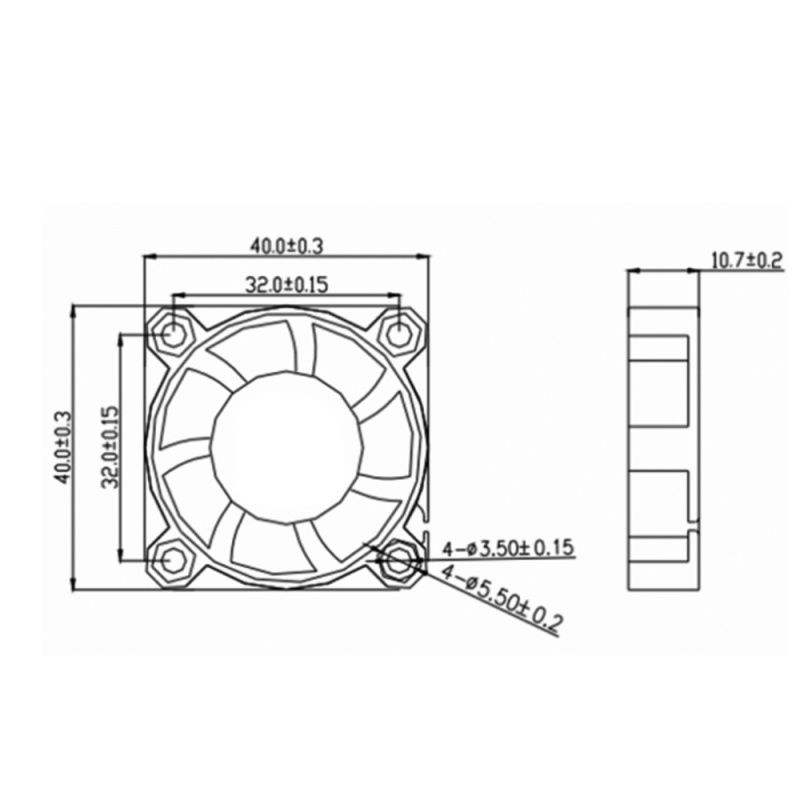

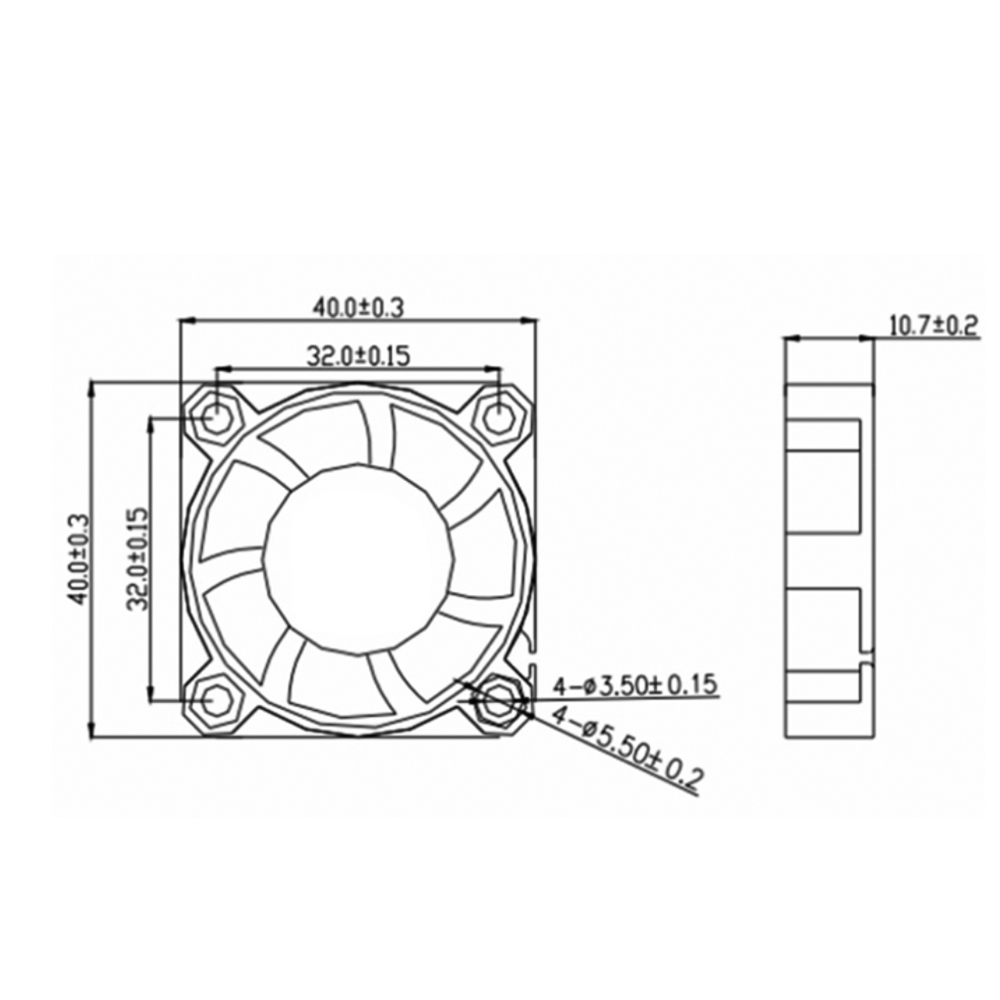

- Dimensions: 40 x 40 x 10 mm
