Product description: Fan 12V 30 x 30 x 10 mm 2 wires
The Aimsoar 30 x 30 x 10 mm cooling fan is a reliable solution for systems requiring efficient and continuous cooling. Its 12 V DC supply voltage, low power consumption, and robust plastic housing make it ideal for 3D printers , electronics, and CNC systems . Its universal mounting hole pattern (four 3 mm diameter holes) allows for easy installation in most projects. The built-in bearing ensures quiet operation and long life.
Fan 12V 30 x 30 x 10 mm 2 wires.
The Aimsoar 3010 fan is an indispensable component in projects requiring active cooling.
Main features of the fan
- Compact dimensions 30 x 30 x 10 mm : ideal for tight spaces
- 12V DC power supply : compatible with popular power sources
- Universal mounting holes : facilitate quick and stable installation
- High cooling efficiency : reliable heat removal from components
- Solid plastic housing : durability and resistance to working conditions
- Brushless DC motor : quiet operation and long service life
Practical applications
- Extruder and hotend cooling in 3D printers
- Ventilation in DIY electronics enclosures
- Protection of step-stick modules, converters and microcontrollers
- Cooling systems in minicomputers
- Robotic projects and automation
Technical specifications of the fan
- Motor type: brushless DC
- Supply voltage: 12 V DC
- Power wires: 2 wires (red/black)
- Diameter of mounting holes: 3 mm
- Distance between holes: 24 mm (center-center)
- Housing material: plastic
- Dimensions: 30 x 30 x 10 mm
Contents of the set
- 1x Aimsoar Cooling Fan 30 x 30 x 10 mm 12 V

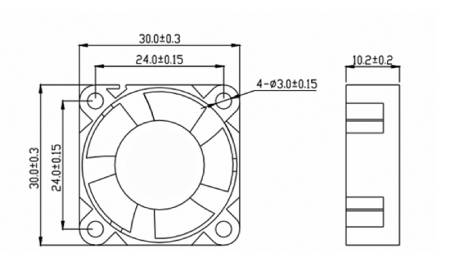

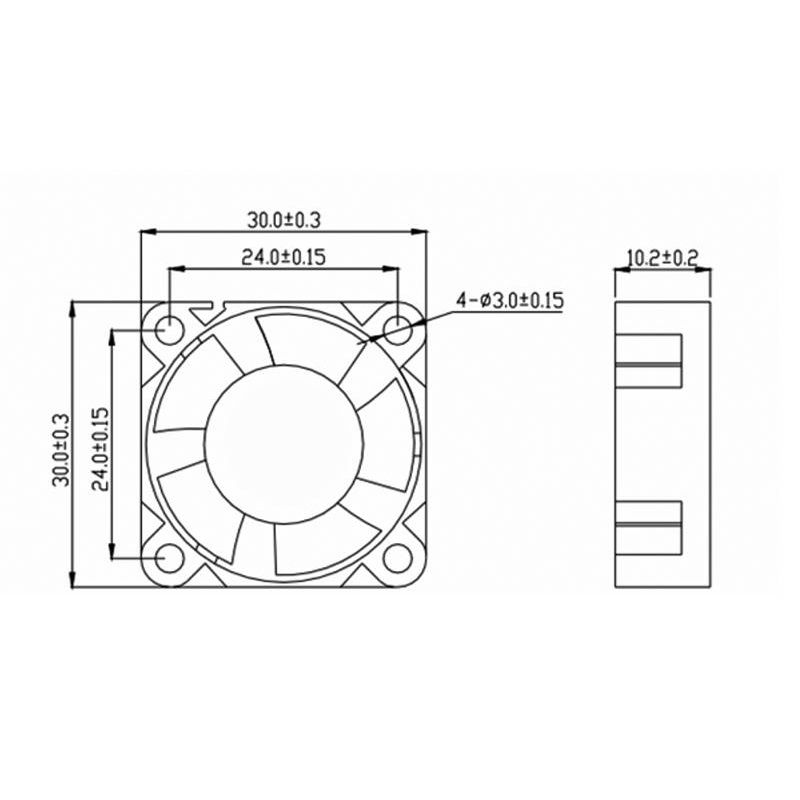

Fan dimensions.
