Product description: Active Cooler for LattePanda Mu - radiator + fan - aluminum - DFRobot FIT0981
Active radiator with built-in fan designed specifically for LattePanda Mu , offers a perfect fit for the module and baseboard. Thanks to the use of high-performance thermal materials and aluminum housing , it effectively dissipates heat from the processor, protecting the device from overheating. Integrated fan with double ball bearing guarantees long life and low noise. The perfect choice for DIY enthusiasts who expect reliable cooling and safe system operation.

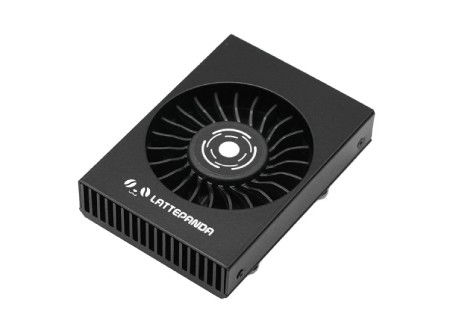

Active Cooler for LattePanda Mu - radiator + fan - aluminum - DFRobot FIT0981.

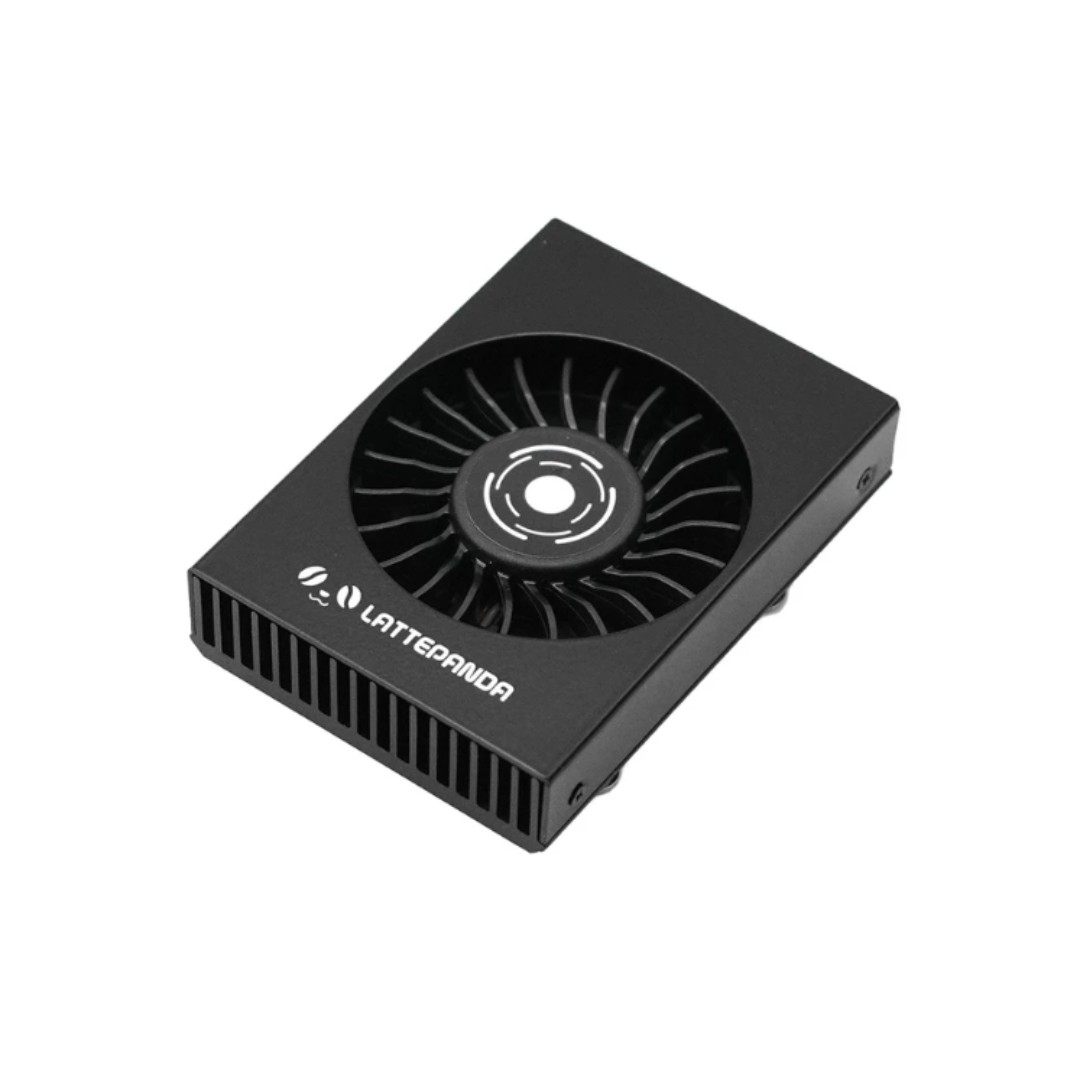

LattePanda Mu Active Cooler is a dedicated cooling solution for LattePanda Mu modules.
Key features of active cooling
- Dedicated cooling for LattePanda Mu : compatible only with the LattePanda Mu computing module
- Active cooling : radiator with fan for maximum efficiency
- Aluminum housing : excellent thermal conductivity and durability
- Ball bearing fan : quiet operation and long service life
- PCM Materials : High-quality phase change materials that improve contact with the CPU
How to install cooling for LattePanda Mu?

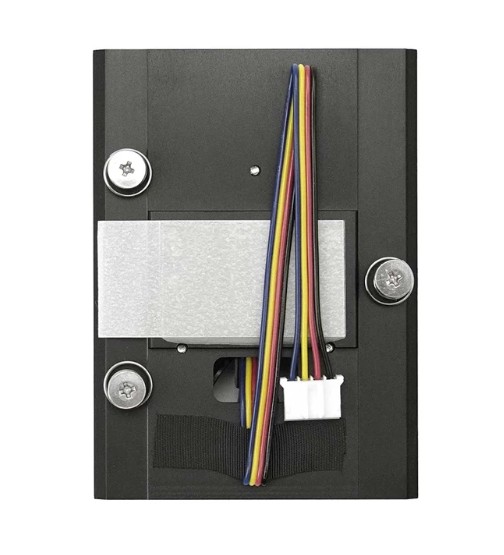

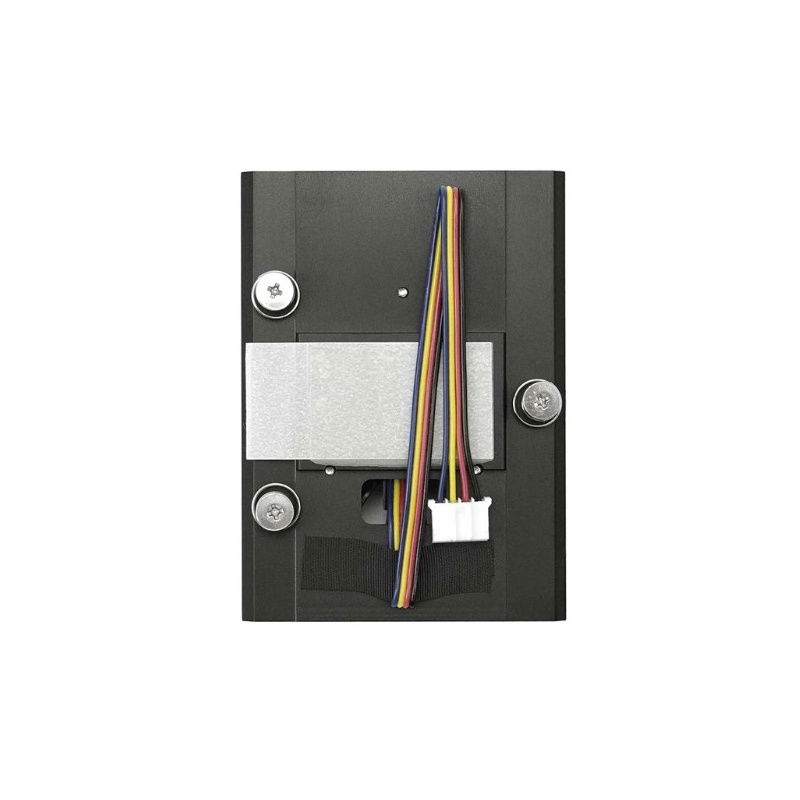

Installing the cooler is simple, but requires caution . The first step is to unscrew the three spring screws and remove the protective film made of PCM (phase change material). Then, precisely position the radiator over the LattePanda Mu CPU, aligning the mounting holes. The screws should be tightened evenly - a little at a time, in a circular order - so as not to exert excessive pressure on the processor .
Attention!
The installation and removal of the radiator must be performed with the power off , and during operation, avoid touching the housing as it may be hot.

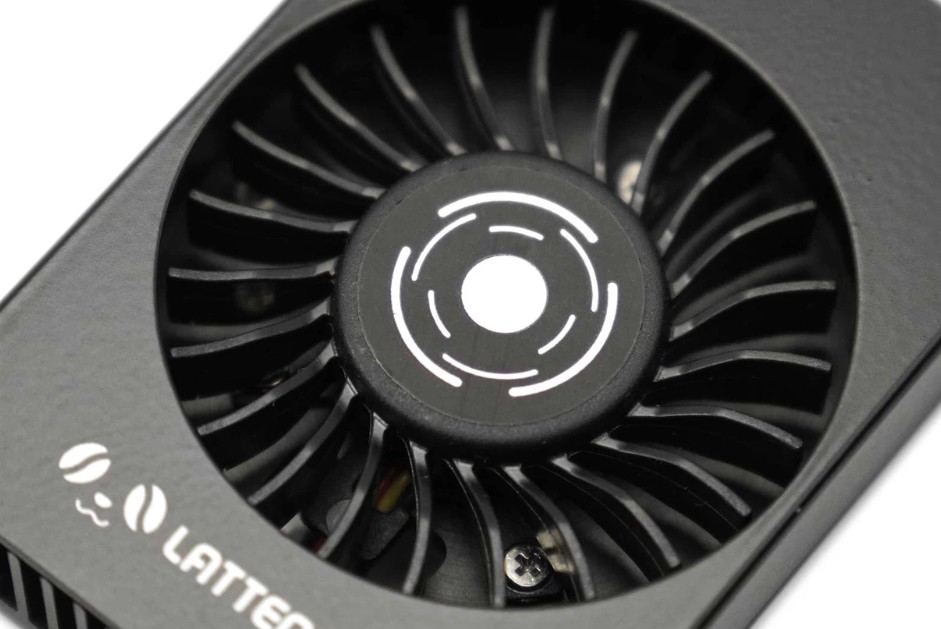

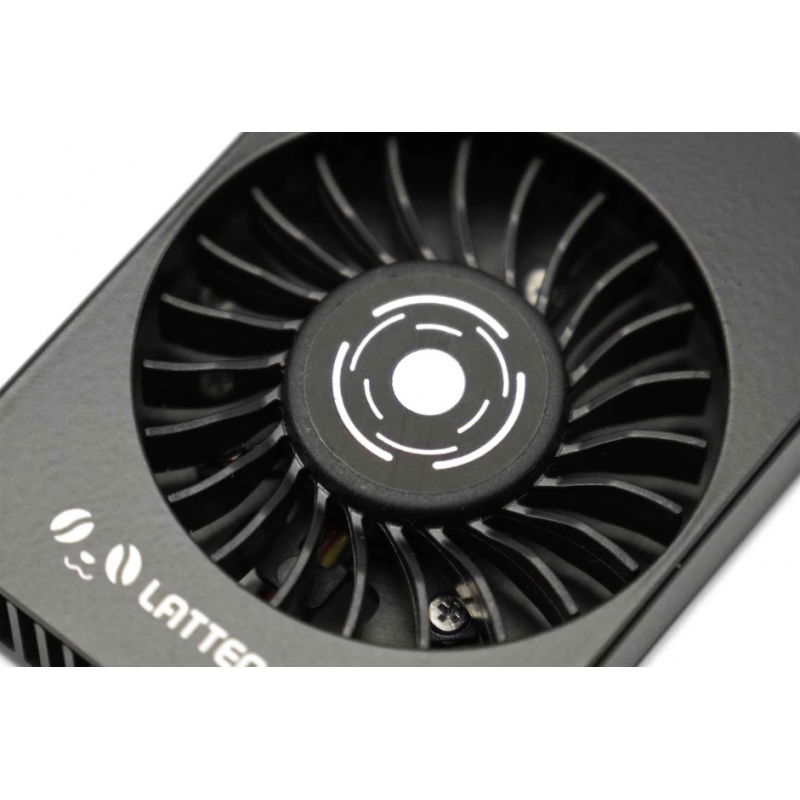

The fan ensures stable module temperature and quiet operation.

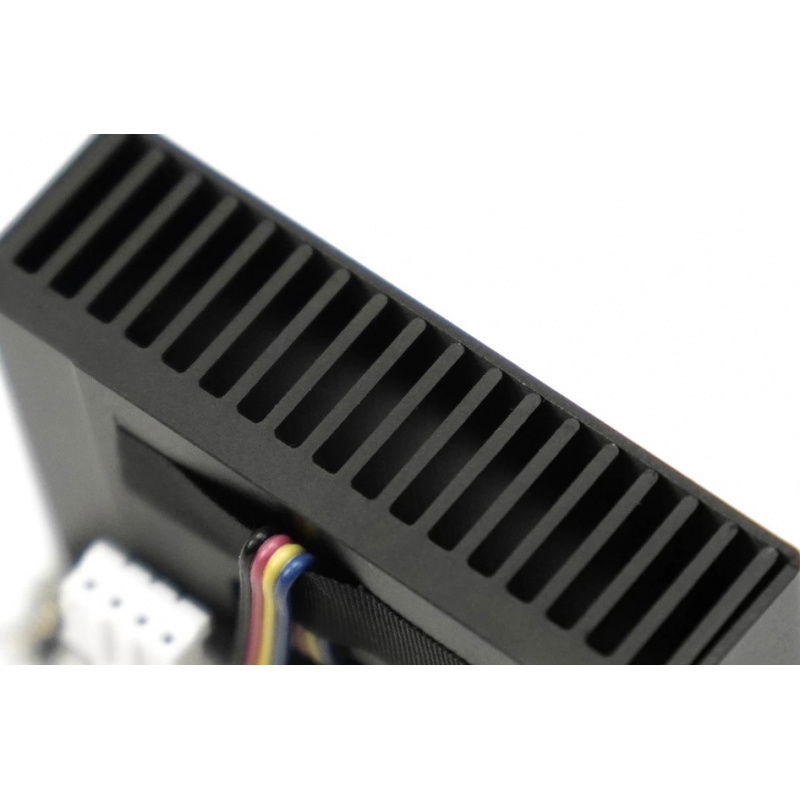

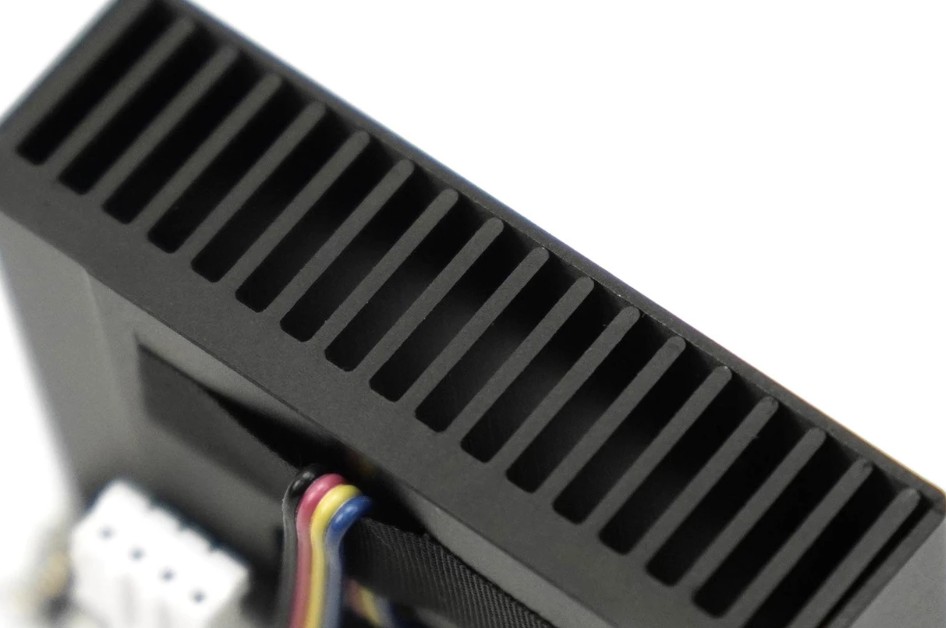

The aluminum alloy housing has excellent thermal conductivity.
Technical specifications of the fan
- Compatibility: LattePanda Mu
- Operating voltage: 5 V
- Operating current: 0.35 A
- Maximum rotation speed: 4000 RPM
- Cable length: 105 mm
- Connector type: 4-pin with 2 mm pitch
- Material: aluminum alloy
- Dimensions: 69.6 x 50.4 x 19 mm
- Weight: 69 g
