Product description: LattePanda Mu Full-Function Evaluation Carrier Board - carrier board for LattePanda Mu module - DFRobot DFR1141
The LattePanda Mu Full-Function Evaluation Carrier Board is a carrier board designed specifically for the LattePanda Mu compute module. The board uses all of the LattePanda Mu module's connectors, and with two Intel I225 2.5G Ethernet ports, it provides reliable network connectivity. It is powered by a voltage of 12V to 20V . It is equipped with 4 USB 3.0 ports, 2 HDMI 2.0 ports, 2 M.2 slots, 1 standard PCIe x1 slot, 1 standard PCIe x4 slot, 1 Type-C port, and more.
The kit does not include the LattePanda Mu module, it can be purchased separately. Check - LattePanda Mu x86 - 8GB RAM + 64GB eMMC Intel N100 .

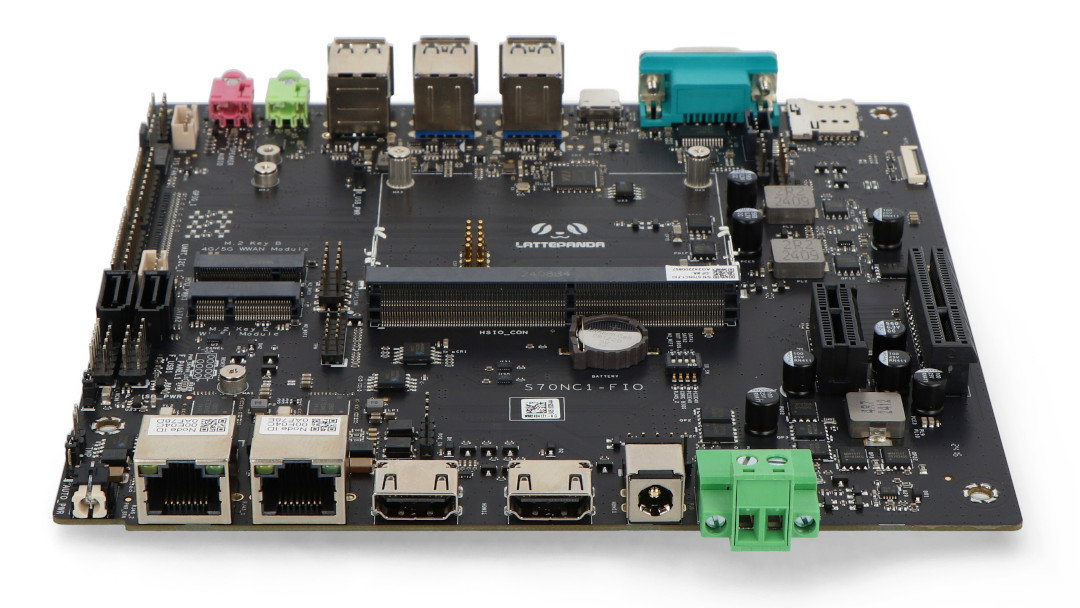

LattePanda Mu Full-Function Evaluation Carrier Board - carrier board for the LattePanda Mu module - DFRobot DFR1141.

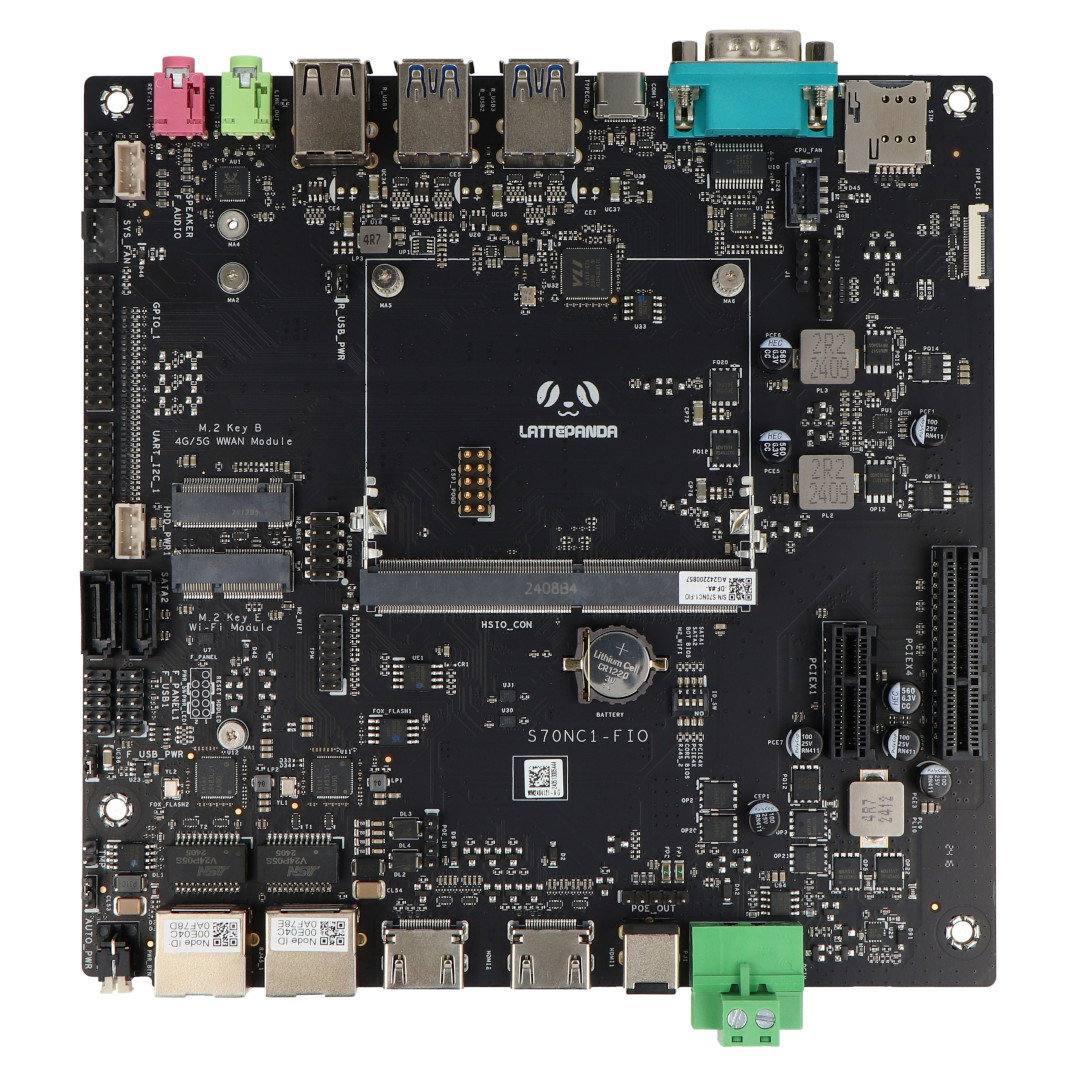

LattePanda Mu Full-Function Evaluation Carrier Board - DFRobot DFR1141.
Key Features of the DFRobot Carrier Plate
- LattePanda Mu Compatibility : uses all of the LattePanda Mu compute module expansion slots, making it possible to test and develop projects
- Multiple interfaces : the carrier board allows you to expand the LattePanda Mu module with multiple interfaces
- Network Connectivity : Built-in Dual Intel I225 2.5G Ethernet Ports
- Built-in M.2 E and M.2 B slots : slots allow expansion with WiFi cards, 4G or 5G cards
- Built-in standard PCIe slots : PCIe 3.0 x1 and PCIe 3.0 x4 slots allow you to connect various peripherals such as graphics cards or network cards
- Wide power supply range : the board is powered by an input voltage of 12 V to 20 V
Attention!
Before connecting or disconnecting the LattePanda Mu, cables, or internal interfaces, be sure to disconnect the power supply.
Description of pins on the board
- Speaker interface
- HD audio connector
- System Fan Interface
- USB Power Jumper
- SoC GPIO
- UART and I2C interface
- Hard disk drive (HDD) power connector
- SATA 6Gb/s connector
- Front Panel Connector
- USB 3.0 port
- USB Power Jumper
- Temperature sensor
- Auto Power On Jumper
- M.2 key E socket
- M.2 key B socket
- eSPI interface
- TPM interface
- PoE power connector
- Power input connector
- Configuration switch
- PCIe 3.0 x4 slot
- PCIe 3.0 x1 slot
- CR1220 battery slot
- Slot for LattePanda Mu
- I2S interface
- MIPI CSI connector
- Processor (CPU) fan socket

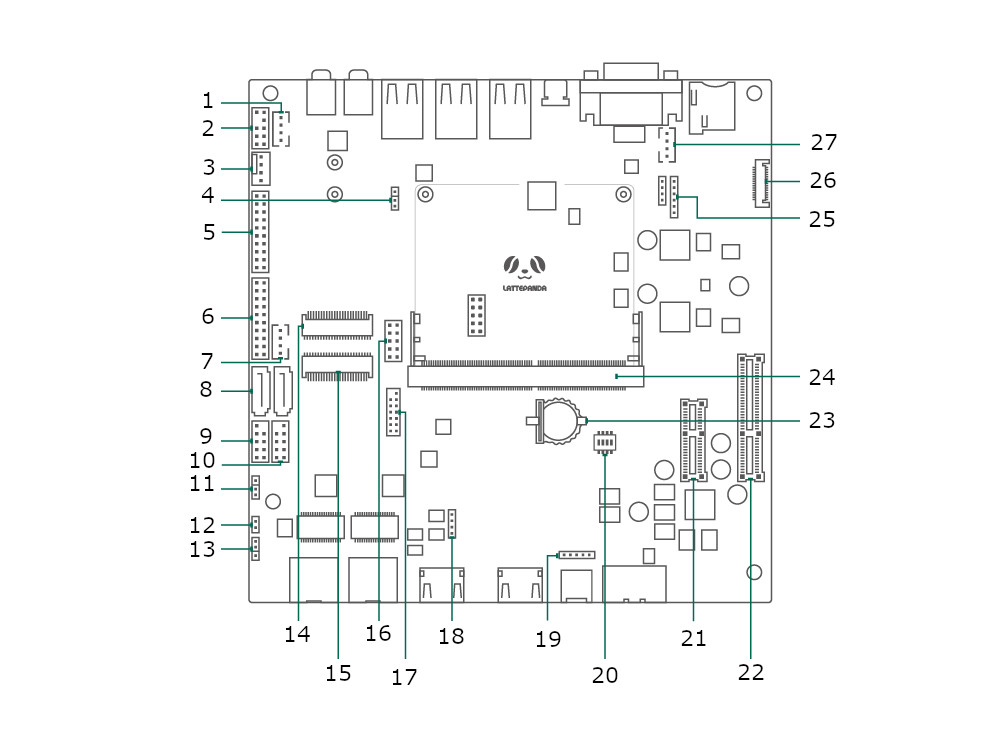

Pinout of the LattePanda Mu Evaluation Board.

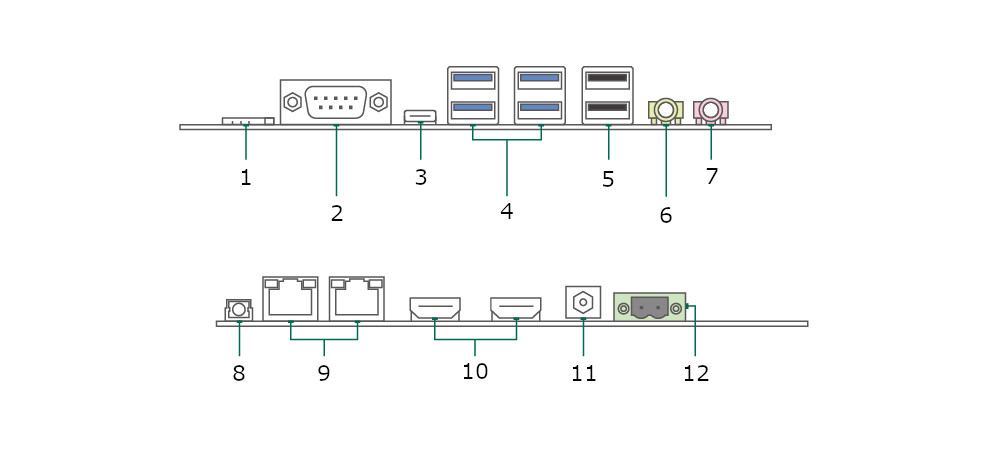

Description of the interfaces on the front and back of the carrier board for the LattePanda Mu.
Description of pins on the board
- SIM card slot
- DB9 connector (RS232)
- USB-C socket
- 4x USB 3.0 port
- 2x USB 2.0 socket
- 3.5mm headphone jack
- 3.5mm microphone jack
- Power button
- 2x 2.5GbE Ports
- 2x HDMI 2.0 connector
- DC Jack 5.5/2.5mm
- DC screw connector 5.08mm
LattePanda Mu Full-Function Evaluation Carrier Board Specification
- Board Compatibility: LattePanda Mu
- Front I/O Interface: 3.5mm audio connectors (microphone and headphones), 2x USB 2.0, 4x USB 3.0, USB C (supports USB 2.0, 3.0, and DisplayPort), USB 3.0 ZIF 20-pin, RS232 port (DB9), SIM card slot
- Rear I/O Interface: Power button, 2x 2.5GbE ports, 2x HDMI 2.0, DC power connector (5.5 x 2.5 mm), 5.08 mm DC screw connector
- Expansion: PCIe 3.0 slots (x1 and x4), M.2 E Key (for WiFi), M.2 B Key (for 4G / 5G cards), 2x SATA 6 Gb/s
- Interfaces and Connectors: CPU and system fan headers, I2S, TPM, eSPI, MIPI CSI-2, GPIO, UART, I2C, configuration switch, and headers for audio, front panel, PoE, and disks
- Supply voltage: 12 V to 20 V
- Dimensions: 170 x 170 mm
Kit Contents
- 1x LattePanda Mu Full-Function Evaluation Carrier Board - carrier board for LattePanda Mu module - DFRobot DFR1141
- 2x SATA Cable - 35cm
- 1x SATA power cable
- 1x PCIe-M.2 Adapter
- User manual

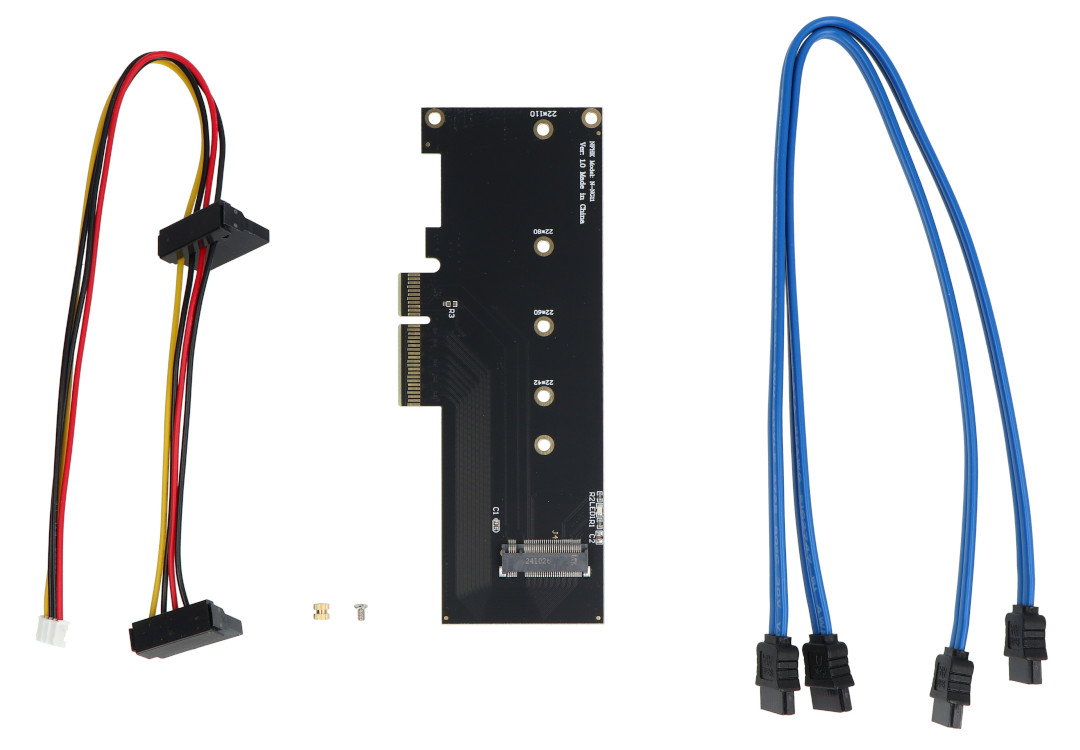

Items included in the set.
