Product description: LattePanda Mu x86 - 8 GB RAM + 64 GB eMMC Intel N100
LattePanda Mu is a miniature x86 computing module equipped with a 4-core Intel N100 processor, reaching a frequency of up to 3.4 GHz . It has 8 GB of LPDDR5 memory with a speed of 4800 MHz and 64 GB of eMMC memory , which provides high computing power and fast data access. The module is constructed in a card format, which allows for easy integration in devices with limited space. LattePanda Mu offers a rich set of expansion pins, including 3 HDMI / DisplayPort ports, 8 USB 2.0 ports, up to 4 USB 3.2 ports, up to 9 PCIe 3.0 lanes, 2 SATA 3.0 ports and 64 expandable GPIOs . Thanks to this, you can customize the module to your needs, creating your own hardware solutions. Additionally, the module supports TDP configuration from 6 W to 35 W , which allows you to adjust power consumption and performance depending on the requirements of the project. LattePanda Mu is supported by open carrier board design files (in KiCAD format), making it easy to design your own expansion boards. You can also use available boards such as Lite Carrier Board and Full-Function Evaluation Carrier Board to speed up the testing and deployment process. It supports Windows 10, Windows 11 , and Ubuntu .
The manufacturer has prepared a detailed user guide that makes it much easier to start working with the module - check it out!

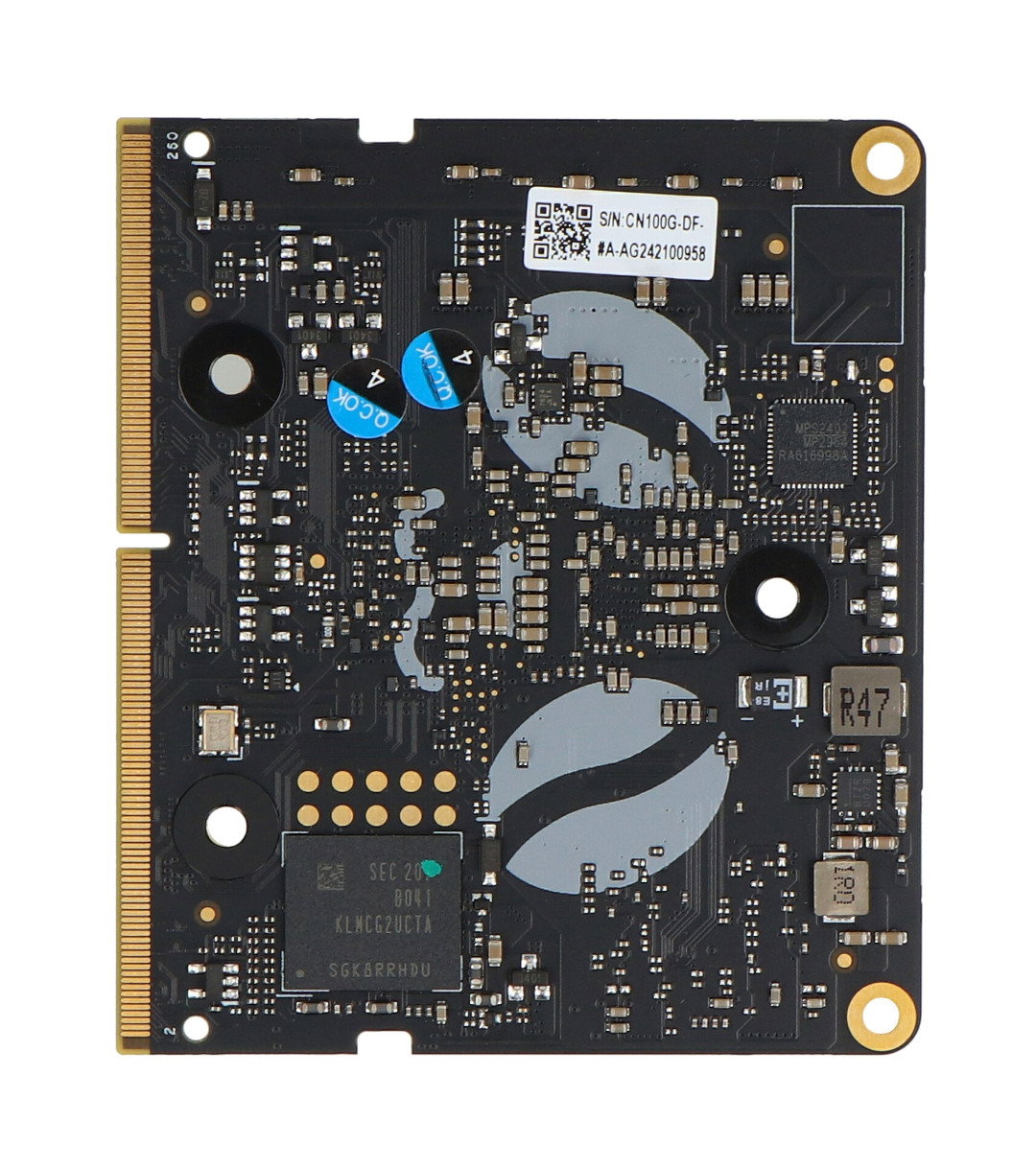

LattePanda Mu x86 - 8 GB RAM + 64 GB eMMC Intel N100.

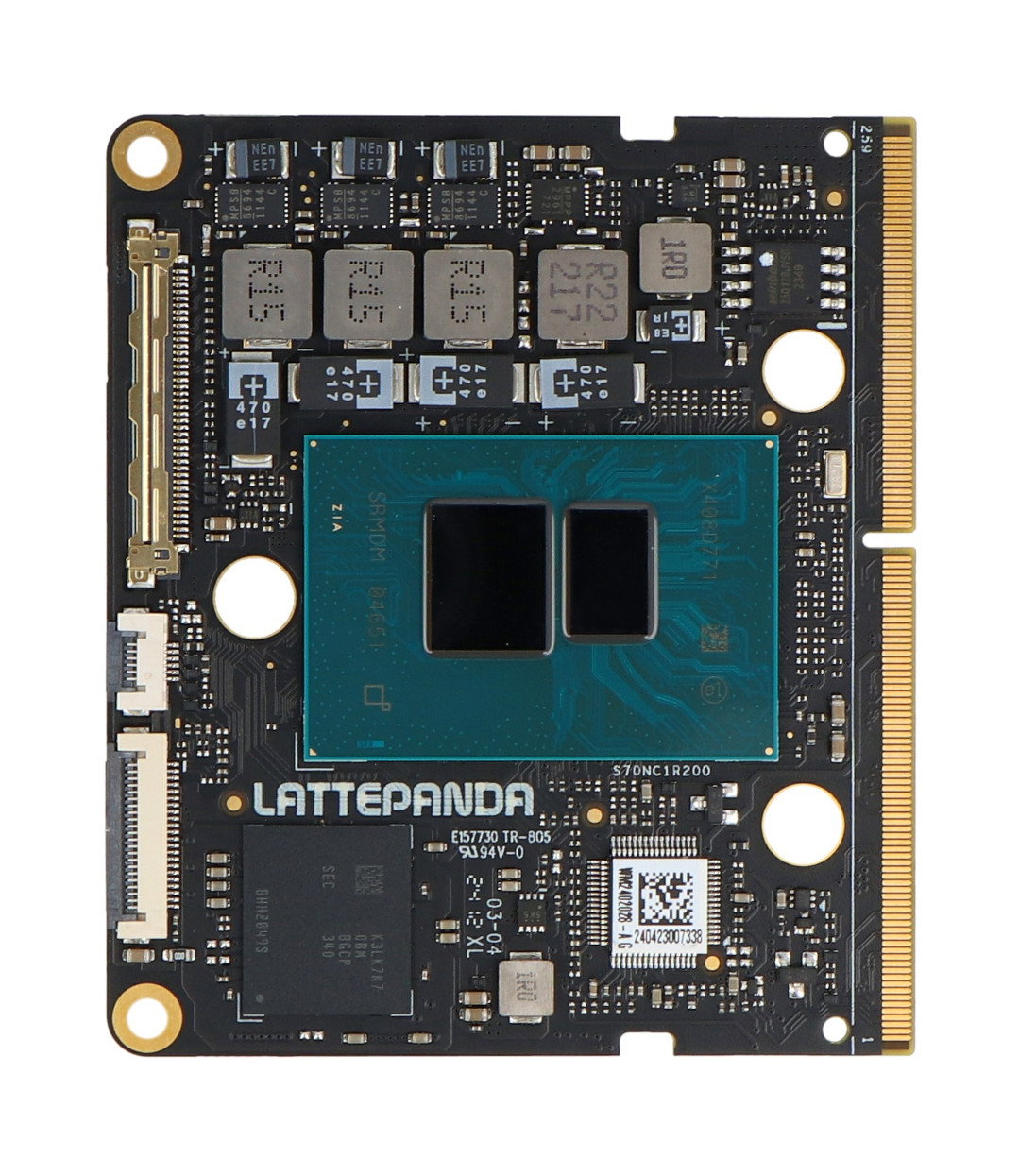

The LattePanda Mu x86 is equipped with an Intel N100 quad-core processor.
Key Features of LattePanda Mu
- Intel N100 Processor : Quad-core processor, reaching frequencies up to 3.4 GHz, providing high computing power.
- RAM : 8 GB LPDDR5 at 4800 MHz, supporting fast operations and multitasking.
- Internal memory : 64 GB eMMC 5.1, providing instant access to data and applications.
- Card format : compact size of 69.6 x 60 mm, enabling easy integration into devices with limited space.
- Support for multiple operating systems : compatible with Windows 10, Windows 11 and Ubuntu, offering a wide range of software possibilities.
- Extensive Connectors : 3 HDMI / DisplayPort ports, 8 USB 2.0 ports, up to 4 USB 3.2 ports, up to 9 PCIe 3.0 lanes, 2 SATA 3.0 ports and 64 GPIO, enabling versatile expansions.
- TDP Control : Configurable from 6W to 35W, tailoring power consumption and performance based on project needs.
- Open access to design files : availability of KiCAD files making it easier to design your own expansion boards.
What do I need to run LattePanda Mu?
- Heatsink : Necessary for effective heat dissipation. Make sure it is properly installed before first use to avoid overheating of the module.
- Carrier Board : Select the appropriate carrier board (Lite Carrier Board or Full-Function Evaluation Carrier Board) that fits your LattePanda Mu and provides the connectors and functions you need.
- Power Source : Check the power requirements for the carrier board you are using and connect the appropriate power supply. The power should only be turned on when all components are properly connected.
- Basic accessories : cables for connecting external devices such as a monitor ( HDMI / DisplayPort ), keyboard and mouse, depending on your needs and configuration.
- Operating System : Depending on your selection, you may be required to install an operating system (Windows 10, Windows 11, or Ubuntu) on the module.
The manufacturer has prepared a guide for easier installation of the operating system.
The CPU TDP is adjustable from 6 W to 35 W.
The pocket-sized LattePanda Mu N100 allows for integration with devices with limited space.
Power supply for LattePanda Mu module
LattePanda Mu requires a power supply ranging from 9V to 20V . When using the Lite Carrier Board, it is recommended to use a 12V power supply to ensure the PCIe slot functions properly.
Contents of the set
- 1 x LattePanda Mu x86 - 8GB RAM + 64GB eMMC Intel N100
- 1 x User Manual
| LattePanda Mu Technical Specifications | |
|---|---|
| Processor | Intel N100 |
| Number of cores | 4 |
| Operating systems | Windows 10 / Windows 11 Ubuntu |
| Processor clock speed | up to 3.4 GHz |
| Graphic layout | Intel UHD Graphics |
| RAM memory | 8GB LPDDR5 4800MT/s with IBECC support |
| Mass storage | 64GB eMMC 5.1 |
| GPIO | up to 64 pins extended with shift registers |
| Security | TDP from 6W to 35W |
| USB | 8 x USB2.0 Type A 4 x USB3.2 Gen2 Type-A |
| PCIe 3.0 | up to 9 lines |
| SATA3.0 | up to 2 ports |
| Audio | HD Audio, I2S |
| Camera | MIPI CSI-2, up to 8 tracks |
| SPI | yes, for second BIOS ROM and discrete TPM |
| SMBus | Yes |
| I2C | SoC 4 ports |
| UART | SIO 1 port; SoC 3 port |
| Supply voltage | from 9V to 20V |
| RTC battery | 3V |
| Working humidity | 0% to 80% relative humidity, non-condensing |
| Operating temperature | from 0℃ to 60℃ |
| Dimensions of the plate | 69.6x60mm |
