Product description: Aluminum radiator for LattePanda Mu - 70 x 45 x 11 mm - DFRobot FIT0982
The passive radiator for LattePanda Mu from DFRobot is a perfect solution for projects where compactness and trouble-free operation are important. Made of corrosion-resistant aluminum alloy , it effectively dissipates heat generated by the processor without increasing the noise level. Thanks to the use of phase change materials (PCM) that improve contact with the CPU surface, it provides more effective heat dissipation. The low profile of the radiator allows for easy integration with housings and airflow systems.

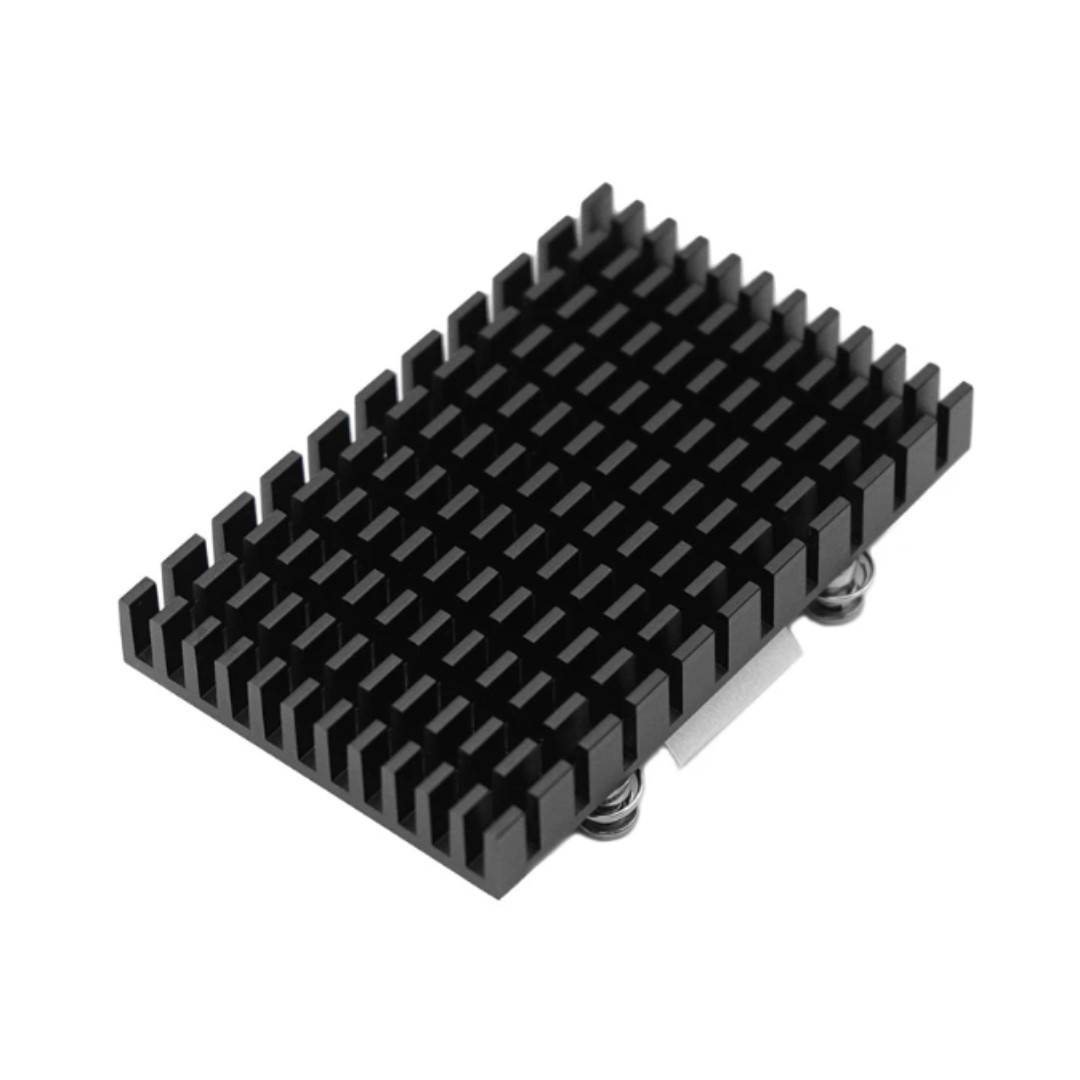

Aluminum radiator for LattePanda Mu - 70 x 45 x 11 mm - DFRobot FIT0982.

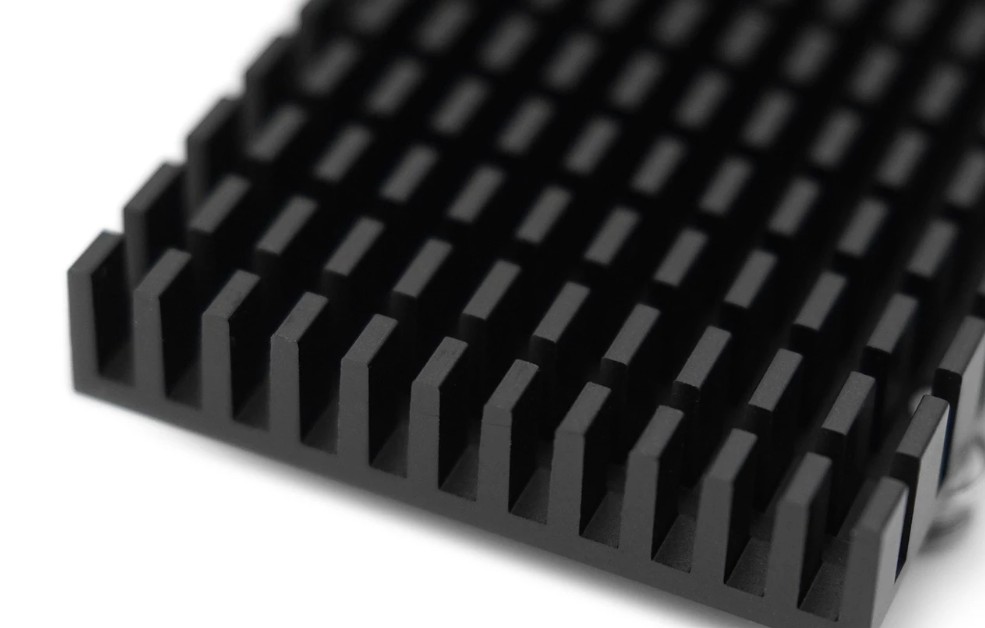

The radiator is made of aluminum alloy.
Main features of the radiator
- Compatibility : works only with the LattePanda Mu modular computer
- Passive Cooling : No fan, requires airflow or external cooling
- Aluminum construction : excellent thermal conductivity and corrosion resistance
- Thin profile : ideal for compact systems with limited space
- PCM material : more efficient heat transfer from the CPU surface
How to mount a radiator to LattePanda Mu?

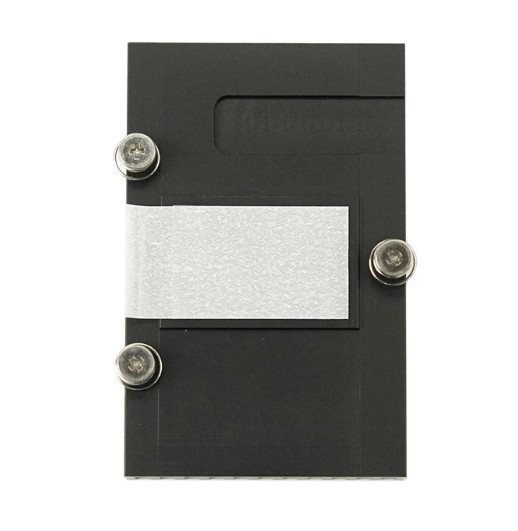

Installing the radiator is very simple, but requires caution . First, unscrew the three spring screws and remove the protective film from the PCM material. Then , adjust the radiator so that its cooling surface is perfectly aligned with the CPU, and the screw holes are aligned . The screws should be tightened evenly, in a circular motion, a little at a time - to avoid uneven pressure on the processor.
Attention!
Installation and removal of the radiator must be performed with the power off , and direct contact with skin should be avoided during operation - the surface of the radiator may be hot.
The heatsink ensures a stable temperature for the LattePanda Mu.

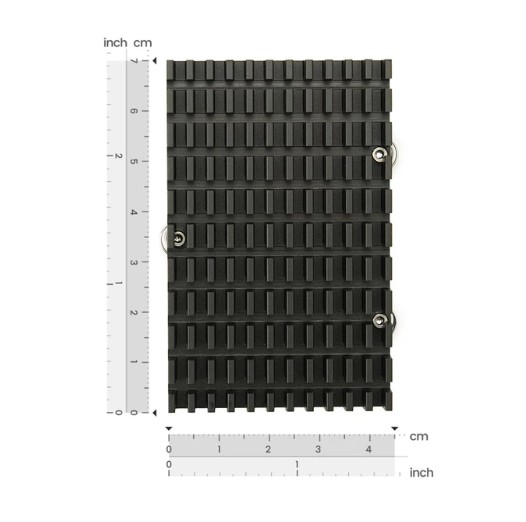

The radiator dimensions are 70 x 45 x 11 mm.
Radiator Technical Specifications
- Compatibility: LattePanda Mu
- Material: aluminum alloy
- Dimensions: 70 x 45 x 11 mm
- Weight: 50 g
